PL-BEAM PRO S

Uus

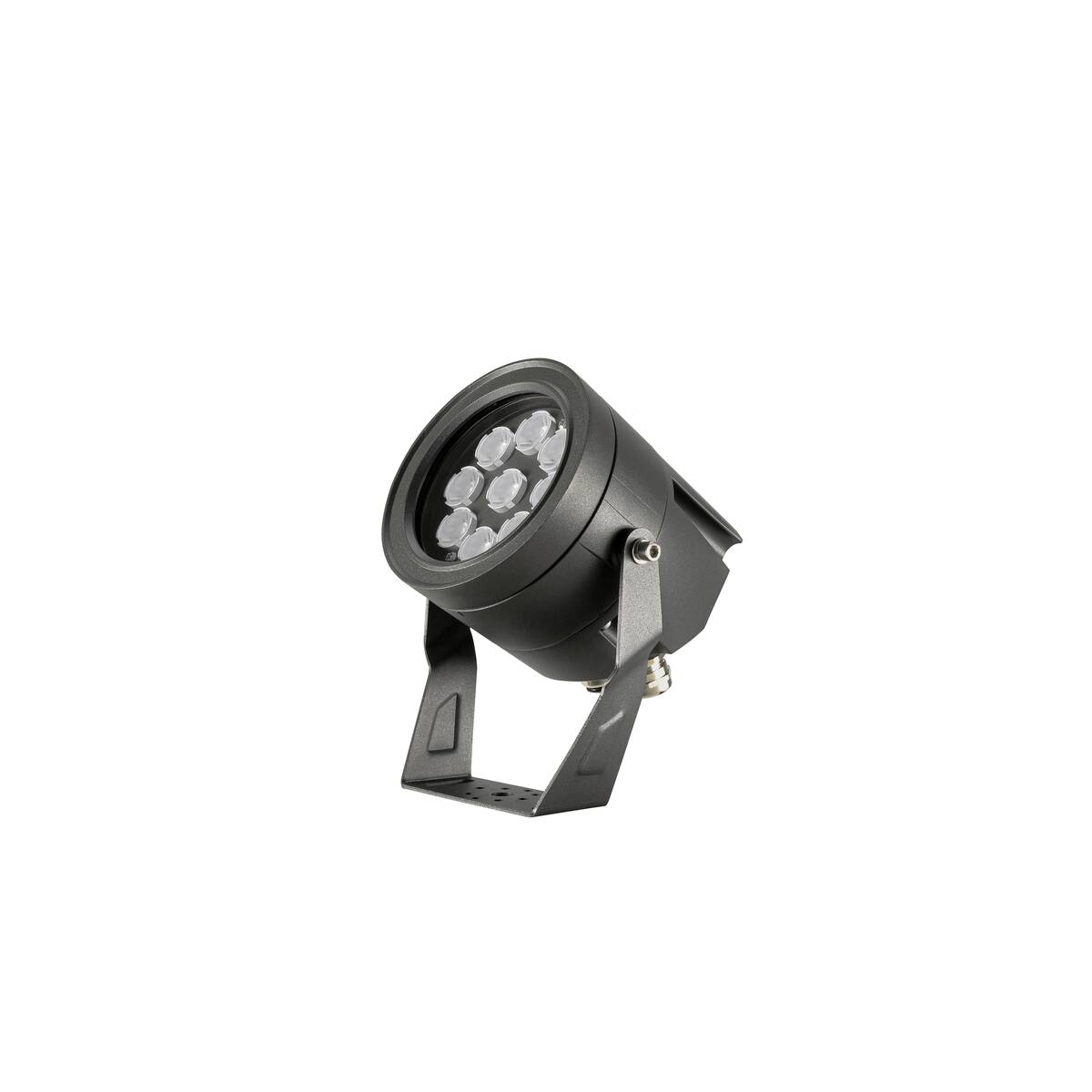

The PRO S wall and ceiling surface-mounted luminaire from the PL-BEAM product line is suitable for use in demanding indoor and outdoor areas requiring a high degree of protection. Featuring an aluminium housing and a glass cover, it offers a robust construction protected against dust and powerful jet water according to IP66. The luminaire has an impact resistance rating of IK08, making it resistant to mechanical impacts. It delivers a luminous flux of 1400 lumens and is designed for a long service life of up to 50,000 hours. The compact design with a diameter of 12.4 cm and a height of 16.5 cm allows flexible mounting on walls or ceilings. The luminaire is equipped with DALI control, making it suitable for professional use in installations with digital lighting control.

Tehnilised andmed

Half beam angle 23 °
Colour anthracite
Colour temperature 2700 Kelvin
Luminous Flux 1400 lm
electrical power 12 W
CRI 80
Net weight 1.34 kg
Diameter 12.4 cm
Height 16.5 cm
IP Code IP66
Service life 50000 h
Primary nominal voltage 220-240V ~ 0/50/60Hz
Secondary power / secondary voltage 600 mA
Shape cylindrical
Glass temperature (light emission) 60 °C
Variant Dimm options DALI
Number of through-wires 15
Ambient temperature -20 °C
Shock resistance category IK08
Shock resistance 5 joule
Material Aluminum
Product name PL-BEAM PRO S
Dimmable Yes
Assembly Surface
Risk group 1
Tehnilised failid Manual
Datasheet
CE declaration
REACh
