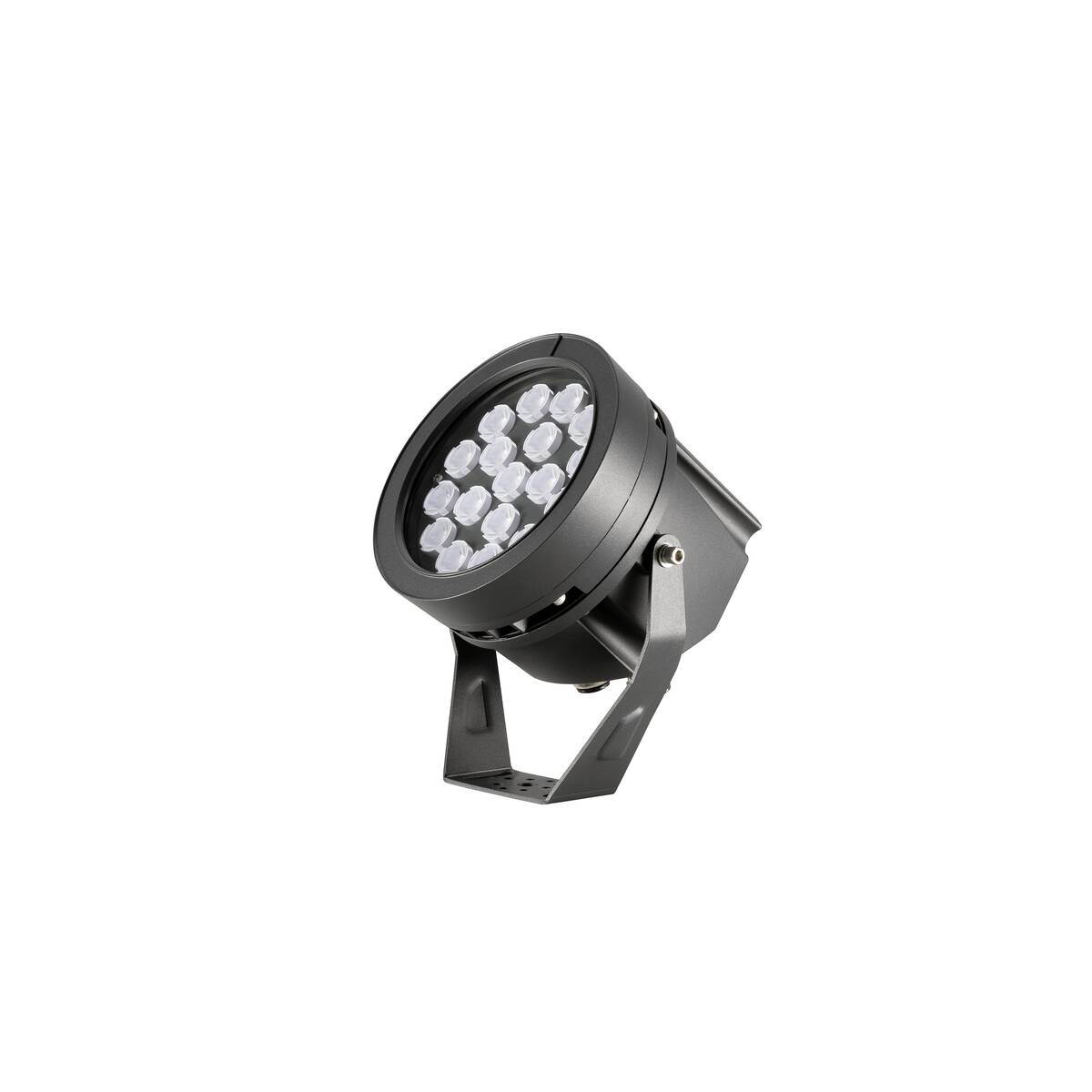

The LED spotlight PL-BEAM PRO M is designed for wall and ceiling mounting and is suitable for use in indoor and outdoor areas that require robust and high-performance lighting. With a luminous flux of 3350 lumens at 26 watts and a colour temperature of 2700 K, it produces warm white light with a beam angle of 23°. The housing is made of aluminium and features a glass cover. The spotlight has an IP66 rating and an impact resistance class of IK08, making it resistant to dust, water, and mechanical impacts. Dimming is carried out via the DALI-2 protocol, allowing flexible control options. With a height of 19.4 cm and a diameter of 16.2 cm, the device is compactly designed and suitable for a wide range of applications.

Tehnilised andmed

Half beam angle	23 °
Colour	anthracite
Colour temperature	2700 Kelvin
Luminous Flux	3350 lm
electrical power	26 W
CRI	80
Net weight	1.95 kg

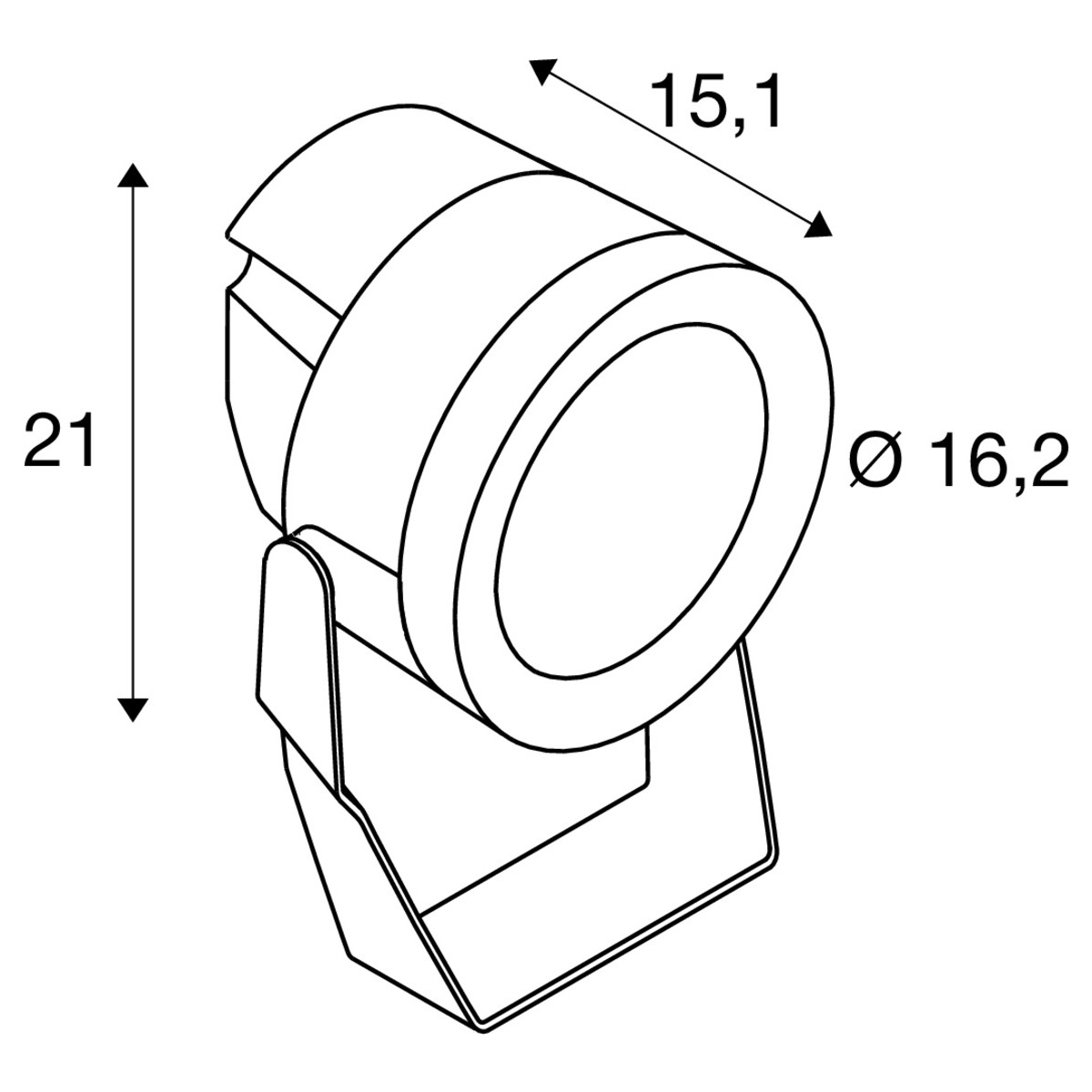

Diameter	16.2 cm
Height	19.4 cm
IP Code	IP66
Service life	70000 h
Primary nominal voltage	220-240V ~ 0/50/60Hz
Secondary power / secondary voltage	700 mA
Shape	cylindrical
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI
Number of through-wires	30
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminum
Product name	PL-BEAM PRO M
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration REACh
