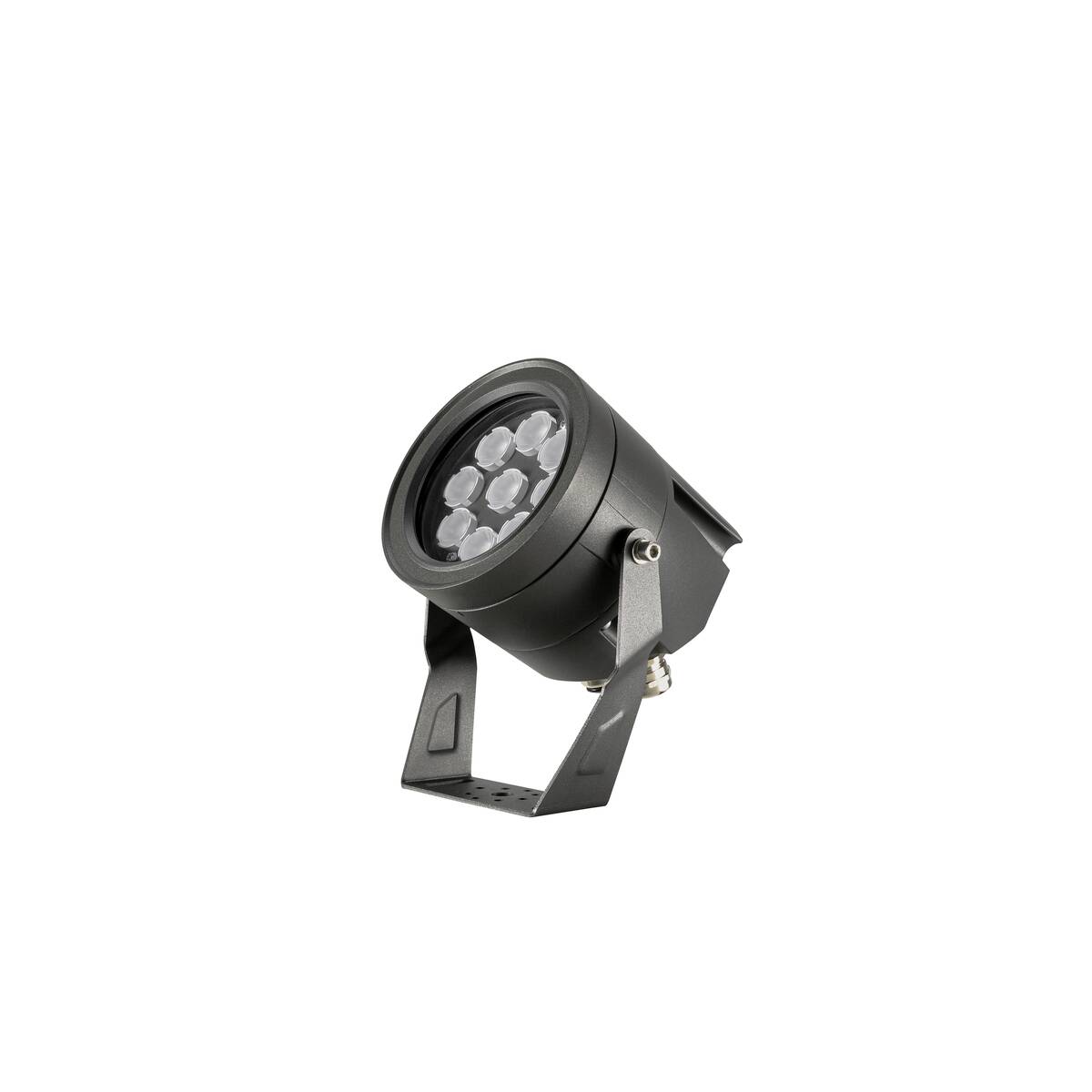

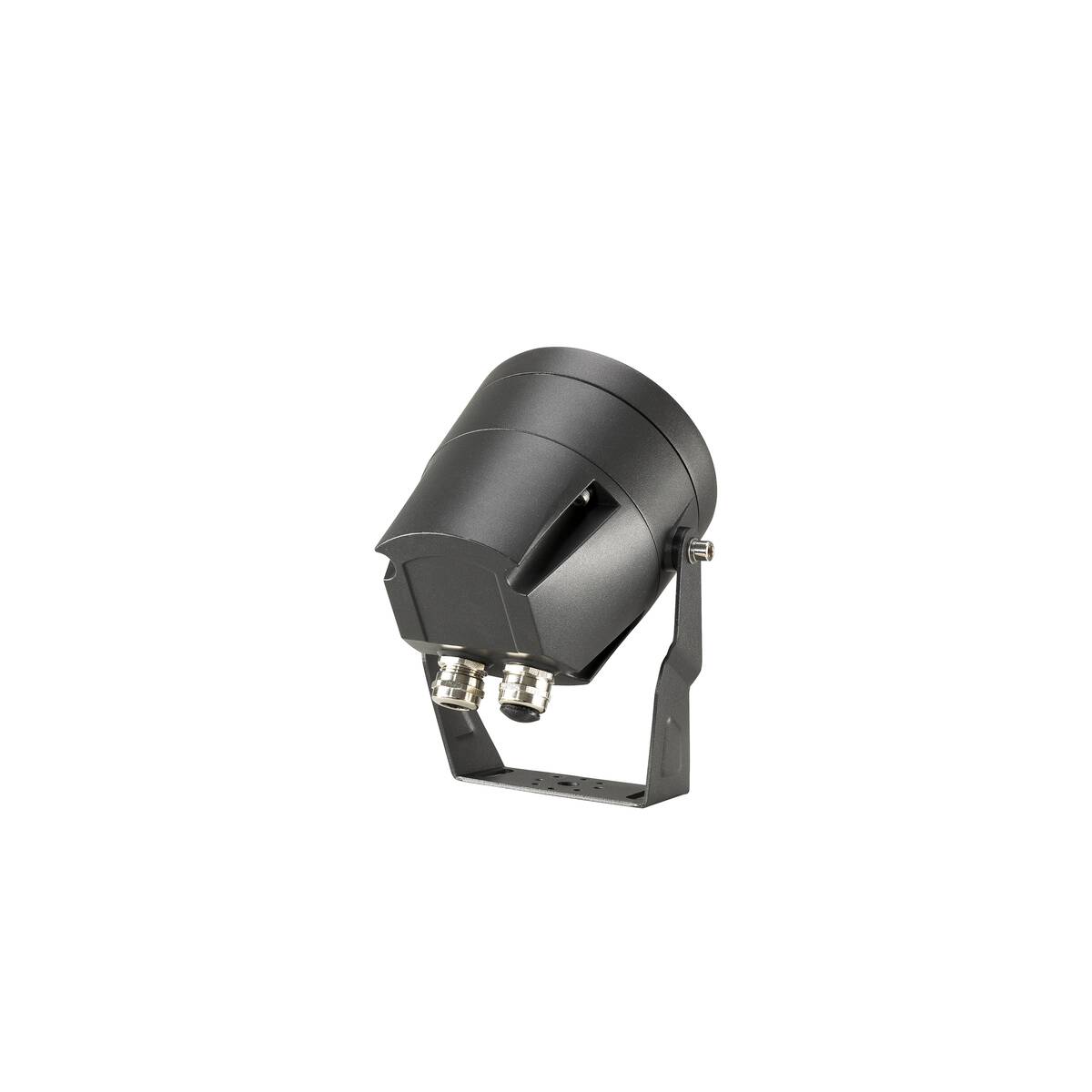

The LED spotlight PL-BEAM PRO S is designed for wall and ceiling mounting and is suitable for use in indoor and outdoor areas that require robust and precise illumination. With a luminous flux of 1350 lumens at 12 watts and a warm white colour temperature of 2700 K, the luminaire provides asymmetrical light distribution with a beam angle of 25°. The housing is made of aluminium and glass, ensuring a durable construction. The luminaire features DALI-2 dimming for flexible light control. It is dust- and waterproof according to protection class IP66 and has an impact resistance rating of IK08, making it resistant to mechanical influences. With a product size of 12.4 cm diameter and 16.5 cm height, it is compact and versatile in application.

Tehnilised andmed

Half beam angle	25 °
Colour	anthracite
Colour temperature	2700 Kelvin
Luminous Flux	1350 lm
electrical power	12 W
CRI	80
Net weight	1.34 kg
Diameter	12.4 cm
Height	16.5 cm
IP Code	IP66
Service life	50000 h
Primary nominal voltage	220-240V ~ 0/50/60Hz
Secondary power / secondary voltage	600 mA
Light outlet version	Asymmetrical
Dimming options	DALI
Shape	cylindrical
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI
Number of through-wires	15
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminum
Product name	PL-BEAM PRO S
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration REACh
