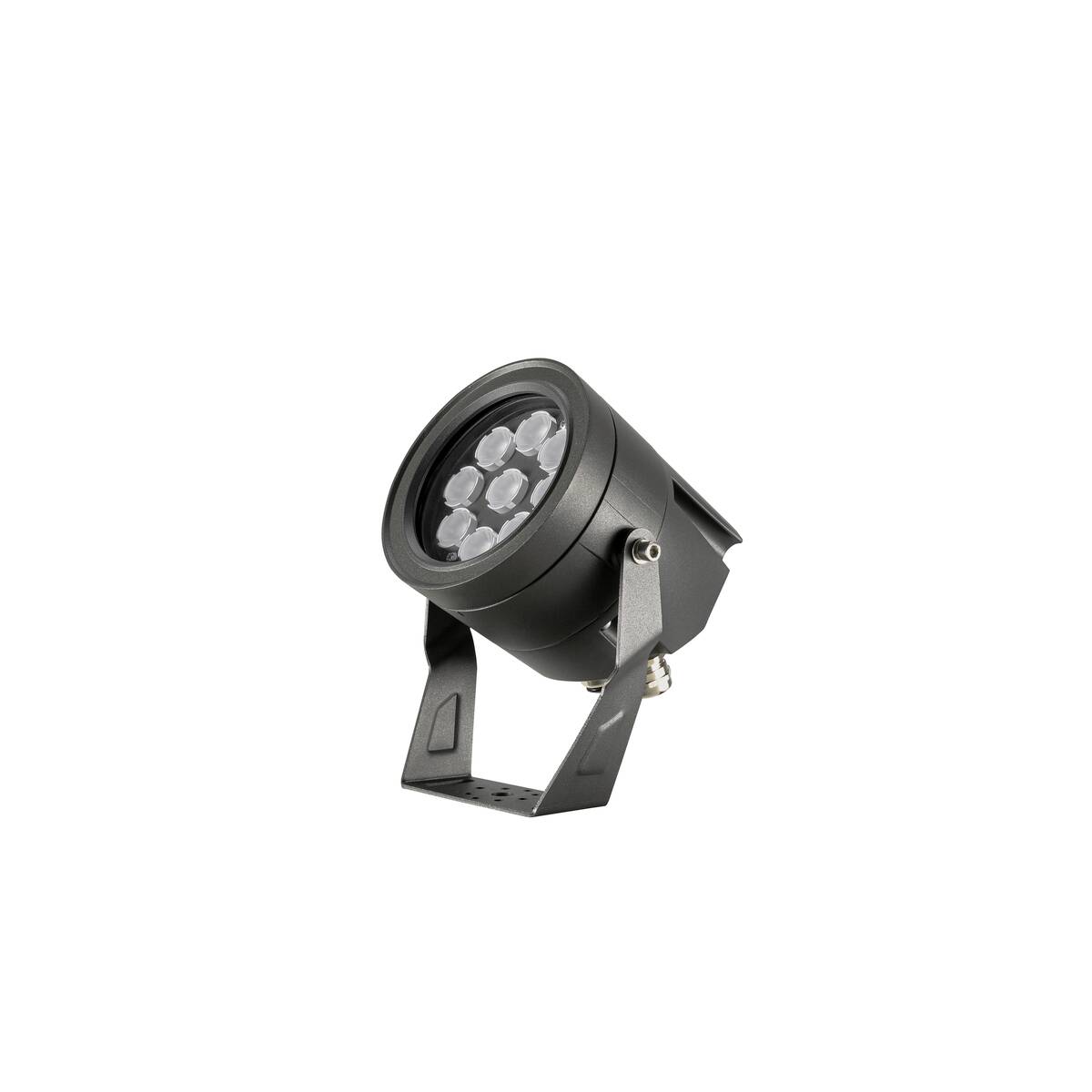

The LED spotlight PL-BEAM PRO S is designed for wall and ceiling mounting and is suitable for use in indoor and sheltered outdoor areas. With a luminous flux of 1250 lumens at 12 watts and a colour temperature of 2200 K, it provides an asymmetrical light distribution with a beam angle of 25°. The housing is made of aluminium and the cover is glass, ensuring a robust construction. The luminaire has an IP66 protection rating and an impact resistance class of IK08, protecting it against dust, jet water, and mechanical impacts. Dimming is carried out via DALI 2, allowing flexible control. With a product height of 16.5 cm and a diameter of 12.4 cm, the luminaire is compact and versatile in terms of mounting.

Tehnilised andmed

Half beam angle	25 °
Colour	anthracite
Colour temperature	2200 Kelvin
Luminous Flux	1250 lm
electrical power	12 W
CRI	80
Net weight	1.34 kg
Diameter	12.4 cm
Height	16.5 cm
IP Code	IP66
Service life	50000 h
Primary nominal voltage	220-240V ~ 0/50/60Hz
Secondary power / secondary voltage	600 mA
Light outlet version	Asymmetrical
Dimming options	DALI
Shape	cylindrical
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI
Number of through-wires	15
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminum
Product name	PL-BEAM PRO S
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration REACh
