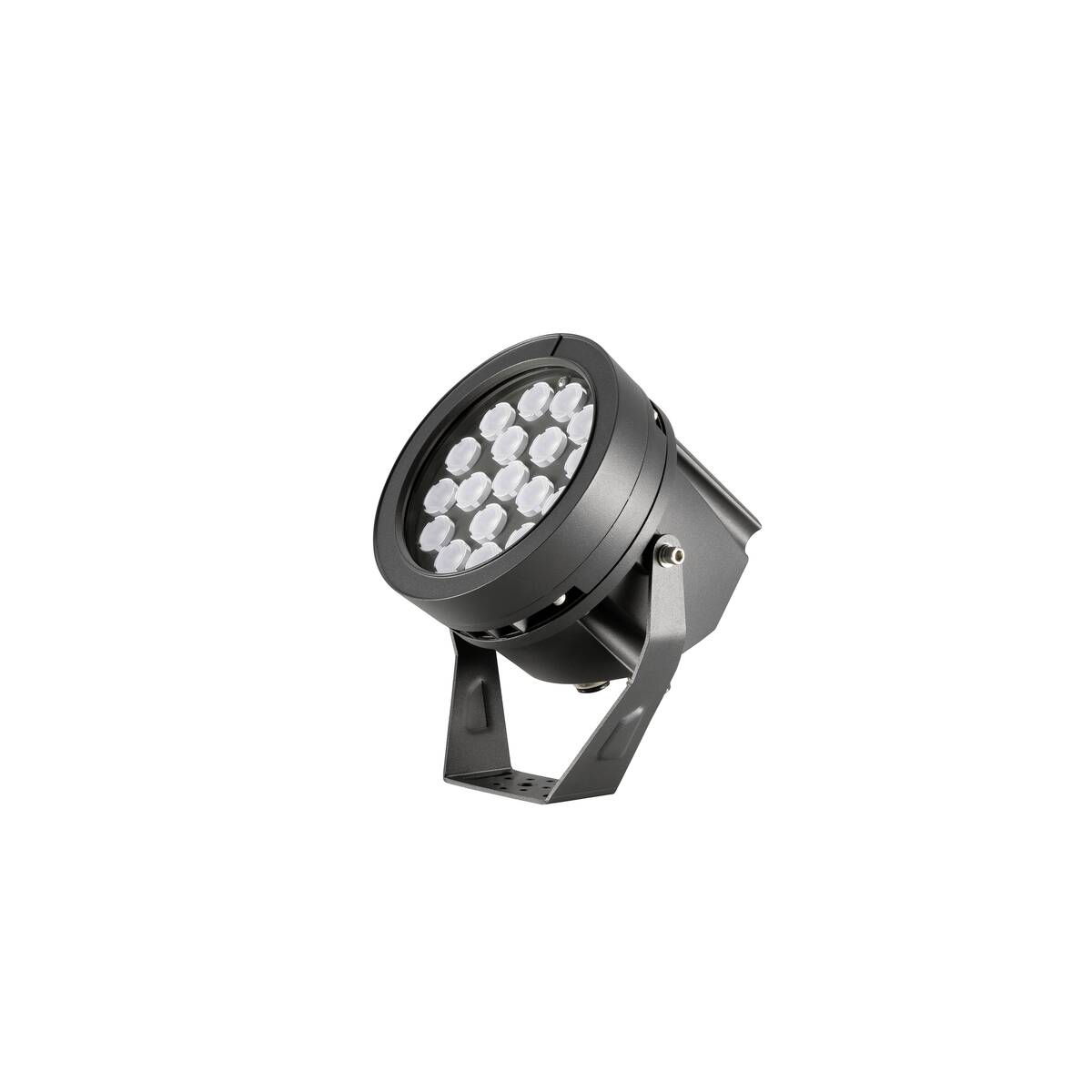

The LED spotlight PL-BEAM PRO S, SP, DALI, ASYMMETRIC is designed for wall and ceiling mounting and is suitable for indoor and outdoor use with high protection requirements. With a colour temperature of 3000 K and a luminous flux of 3400 lumens, it offers an asymmetric light distribution with a beam angle of 25°. The housing is made of aluminium and glass, ensuring a robust construction. The luminaire is equipped with DALI 2 technology for control and dimming, allowing flexible light management. It features an IP66 protection rating and an impact resistance of IK08, protecting it against dust ingress, powerful water jets, and mechanical impacts. The compact dimensions, with a diameter of 16.2 cm and a height of 19.4 cm, facilitate installation and integration into various applications.

Tehnilised andmed

Half beam angle	25 °
Colour	anthracite
Colour temperature	3000 Kelvin
Luminous Flux	3400 lm
electrical power	26 W
CRI	80
Net weight	1.95 kg
Diameter	16.2 cm
Height	19.4 cm
IP Code	IP66
Service life	70000 h
Primary nominal voltage	220-240V ~ 0/50/60Hz
Secondary power / secondary voltage	700 mA
Light outlet version	Asymmetrical
Dimming options	DALI
Shape	cylindrical
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI
Number of through-wires	30
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminum
Product name	PL-BEAM PRO M
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration REACh
