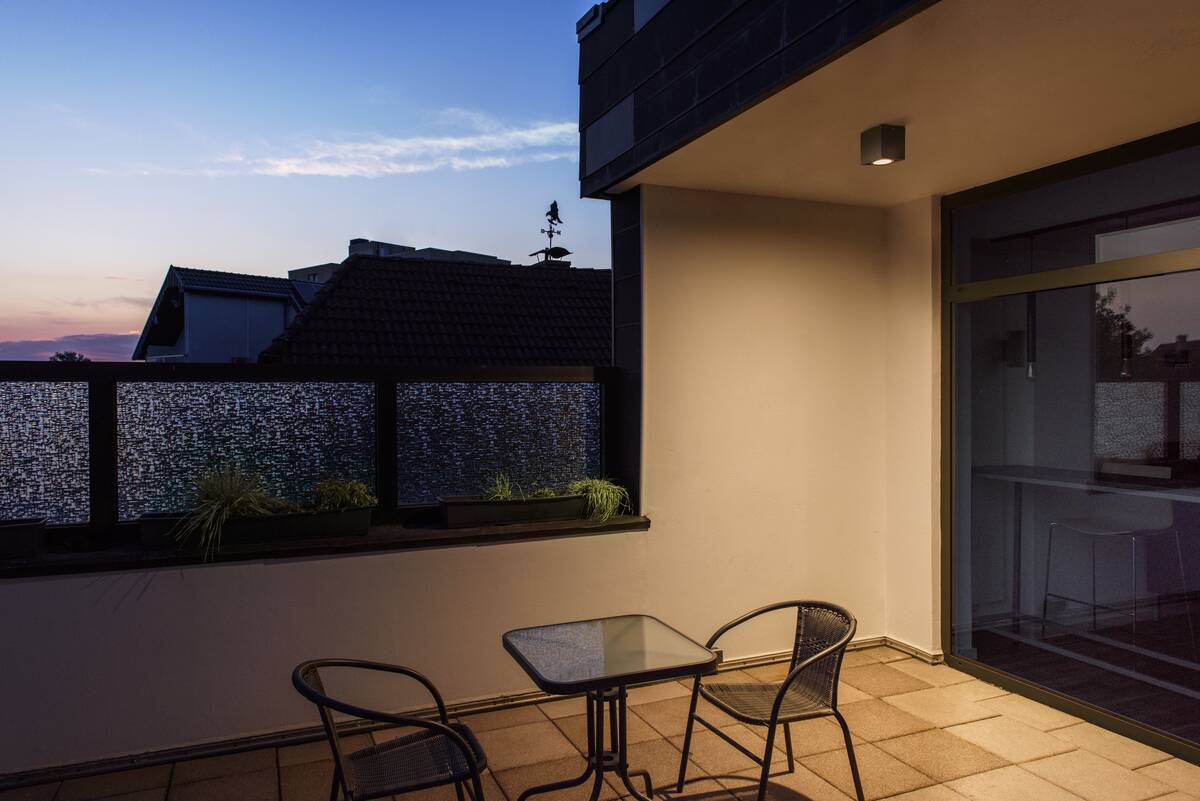

With its classic design, the aluminium and glass ESKINA FRAME CL single makes a stylish statement in any outdoor area. The 1100 / 1200 lumen bulb in this ceiling-mounted light features an adjustable colour temperature (3000/4000 K). The beam angle of 95 degrees produces a widely scattered light. Thanks to its IP65 protection class rating, it is ideally protected against dirt and even jets of water. This award-winning light is also and quick and easy to install.

Tehnilised andmed

Half beam angle	95 °
Colour	anthracite
Colour temperature	4000 Kelvin
Luminous Flux	1200 lm
electrical power	15 W
CRI	80
Net weight	1.581 kg
Height	13.3 cm
Length	12 cm
Width	13.3 cm
IP Code	IP65
Service life	30000 h
Luminous flux	1100 / 1200 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Rotating or tilting	tiltable
Light outlet version	Direct
Dimming options	TRAILING_EDGE
Variant Dimm options	Trailing edge
Vertical tilting range	320 °
Ambient temperature	-20 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	aluminium
Product name	ESKINA FRAME
CCT Switch	Yes
Dimmable	Yes
Risk group	1
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Ceiling lights, Indoor, LED
Sildid	Ambience, Ceiling light, Ceiling-mounted light, Indoor light, LED, LED recessed ceiling light, Living room, Outdoor light, Single-lamp, Surface-mounted light
