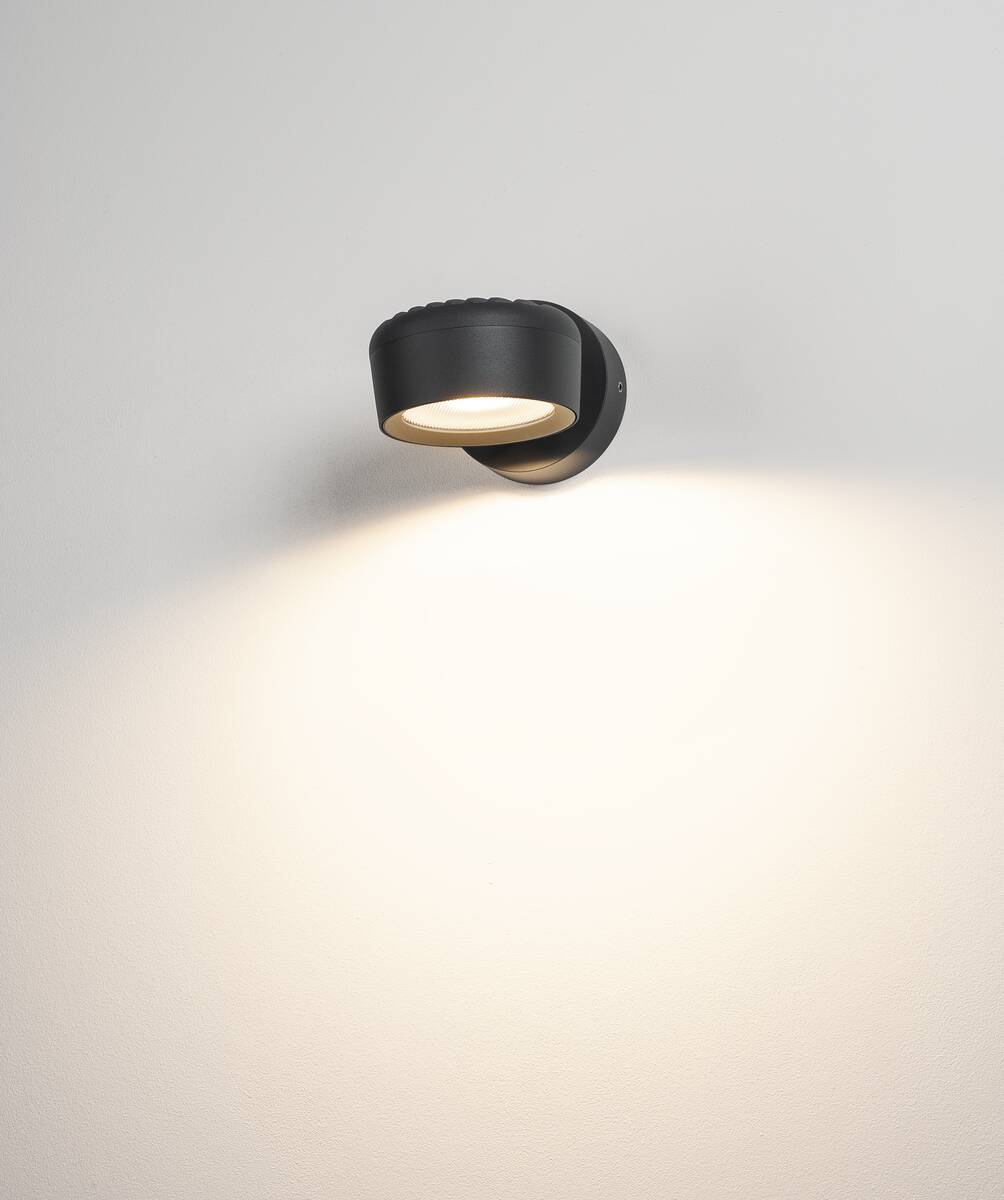

A new family in the SLV lighting world! We are providing you with an integrated outdoor lighting solution with the ESKINA family. Regardless of whether it is a floor stand, a wall and ceiling light or a display fitting. You will find the right light for any application. All of the luminaires can be operated with 3000 K or 4000 K. Versions with motion sensors are also available.

Tehnilised andmed

Half beam angle	95 °
Colour	anthracite
Colour temperature	4000 Kelvin
Luminous Flux	1000 lm
electrical power	14,5 W
CRI	80
Net weight	1.239 kg
Diameter	13.8 cm
Height	22.3 cm
IP Code	IP65
Service life	36000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Rotating or tilting	rotary bar and tiltable
Dimming options	TRAILING_EDGE
Horizontal rotation range	340 °
Variant Dimm options	Trailing edge
Number of through-wires	20
Vertical tilting range	105 °
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	ESKINA SPOT
CCT Switch	Yes
DALI capable	No
Dimmable	Yes
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	LED, Outdoor, Wall and ceiling
