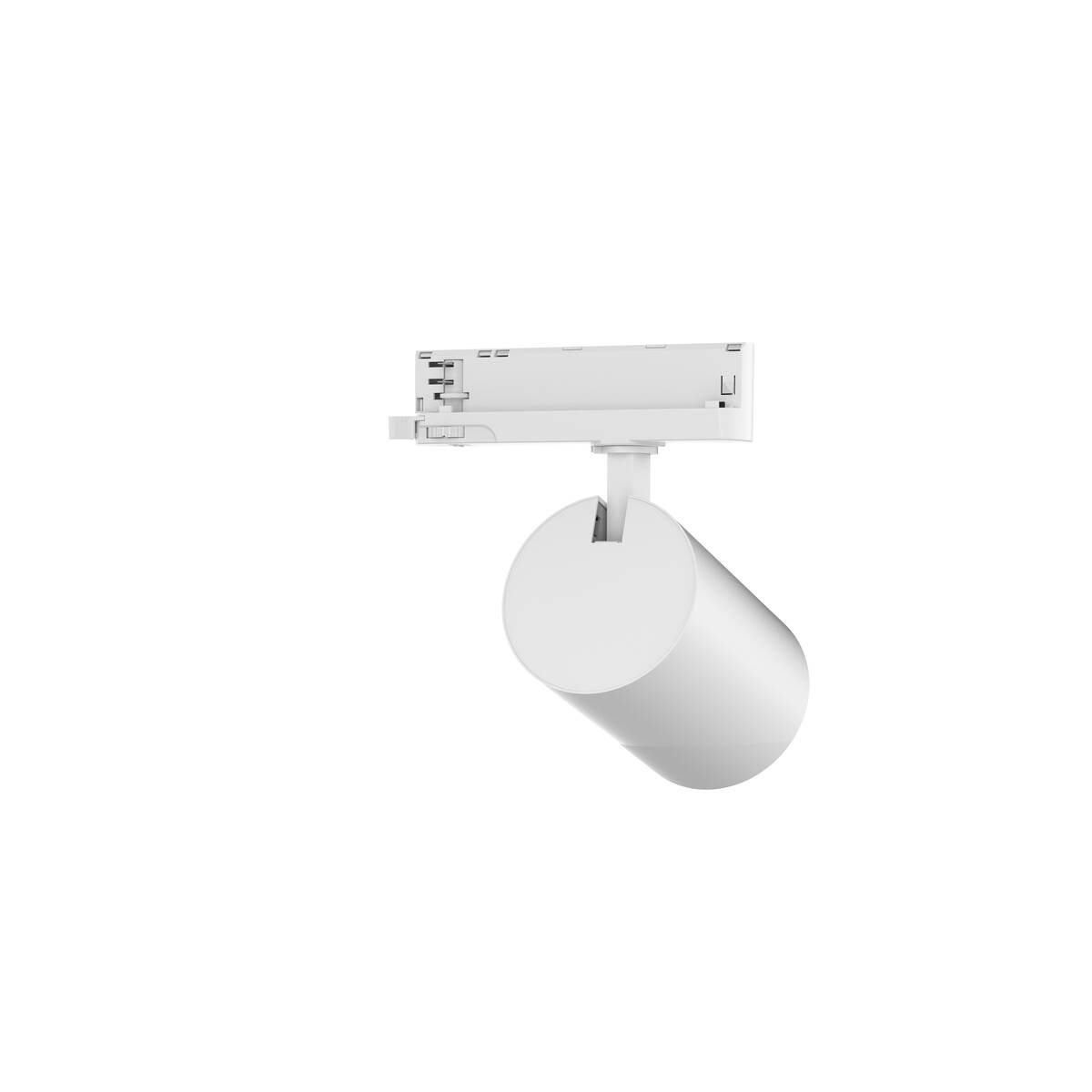

The TRACKSPOT P is a three-phase spotlight designed for mounting on ceiling or wall track systems. It is particularly suitable for indoor use, such as in exhibition spaces, retail, or office environments. The luminaire body is cylindrically shaped and made of aluminium. With a length of 17.3 cm, a diameter of 9 cm, and a height of 14 cm, the spotlight offers a compact design. The luminous flux ranges from 2940 to 3890 lumens. The IP20 protection rating and IK03 impact resistance provide adequate protection against contact and mechanical influences indoors. The luminaire has a lifespan of 50,000 hours. The beam angle is 36 degrees, allowing for targeted illumination.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	3890 lm
electrical power	17 W
CRI	90
Net weight	0.81 kg
Diameter	9 cm
Height	14 cm
Length	17.3 cm
IP Code	IP20
Service life	50000 h
Luminous flux	2940 - 3890 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	450-600mA
Light outlet version	Bottom
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT P 3PH. 34 940
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, Ceiling lights, Indoor, Track systems
