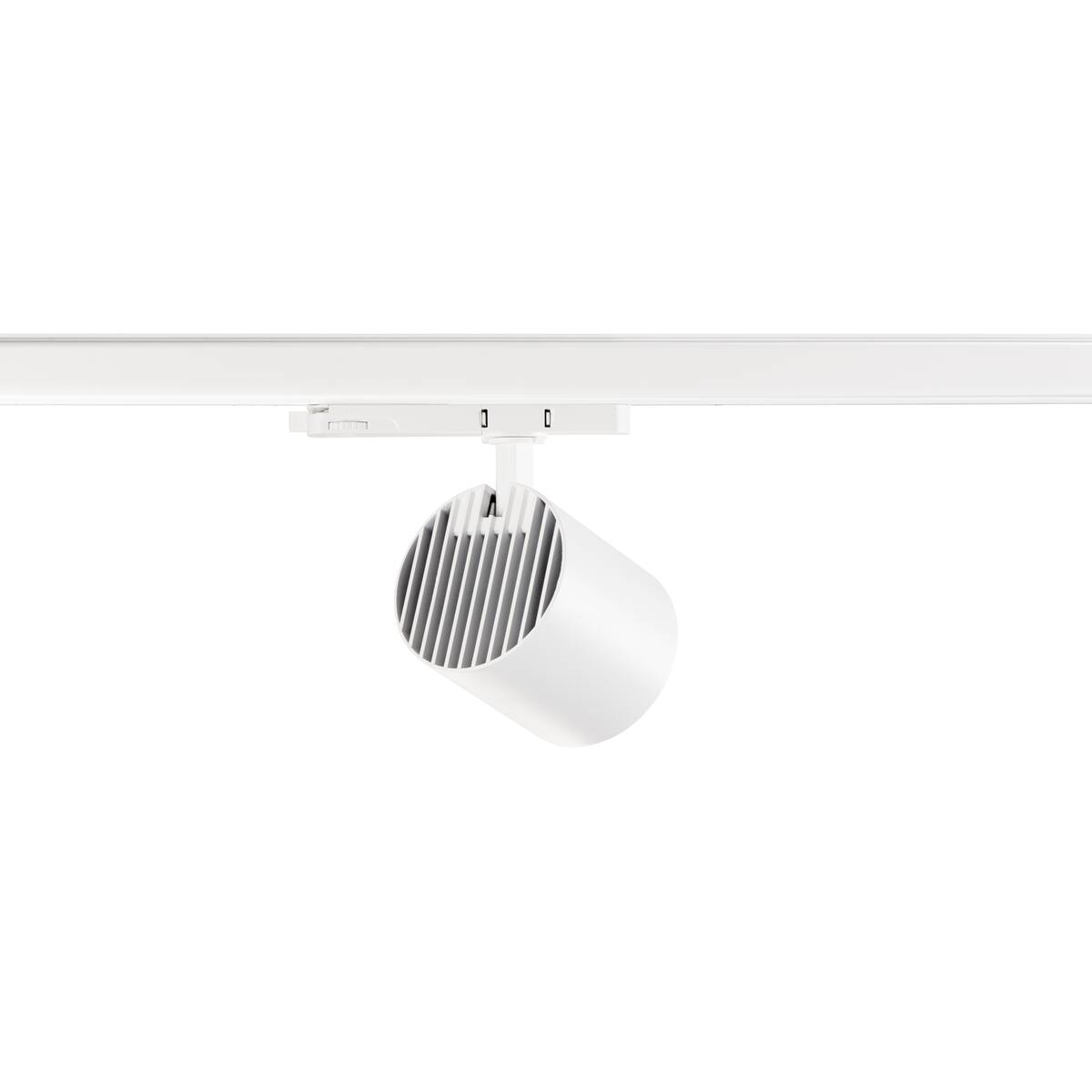

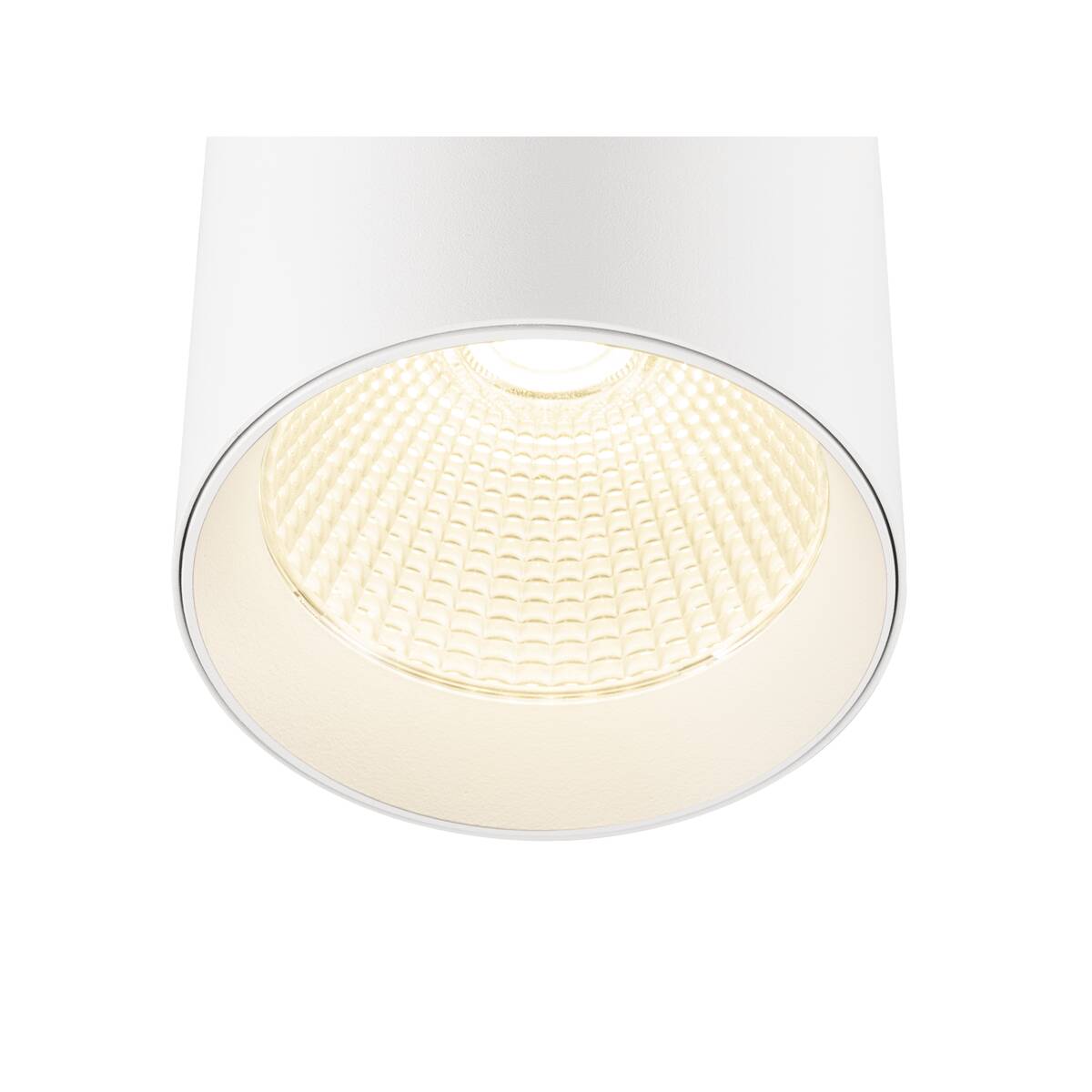

The TRACKSPOT C is a cylindrical 3-PHASE spot designed for mounting on ceiling and wall track systems. It is suitable for indoor use, for example in retail and exhibition areas where targeted lighting is required. The lamp has a power of 17 watts and produces a luminous flux of 2550 to 3310 lumens at a colour temperature of 3000 Kelvin and a beam angle of 36 degrees. The housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. The spot has a protection rating of IP20 and an impact resistance class of IK03. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3310 lm
electrical power	17 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	2550 - 3310 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	450-600mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
