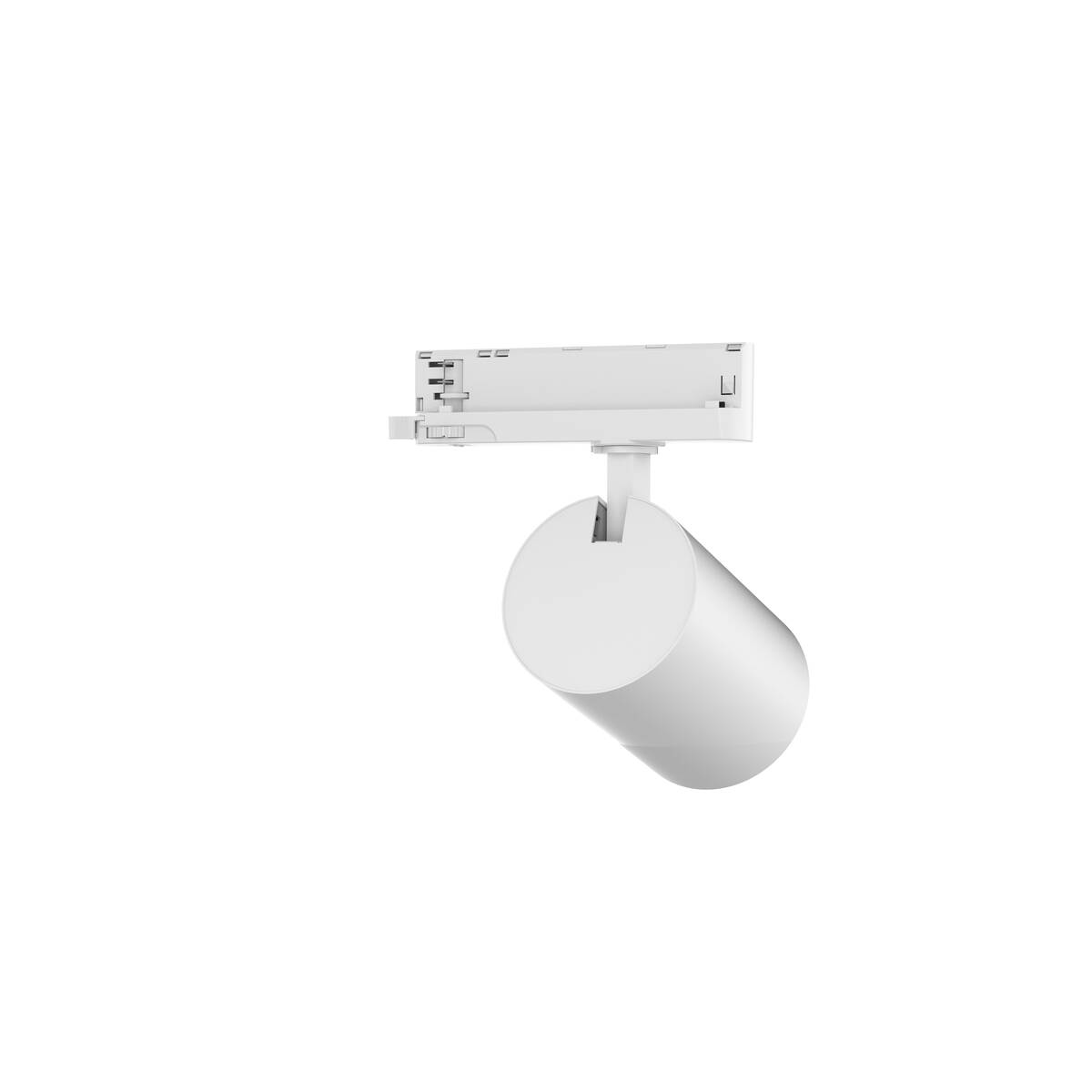

The TRACKSPOT P is a 3-PHASE spotlight designed for mounting on ceiling and wall track systems. It is particularly suitable for indoor use where targeted lighting is required. The light source offers a luminous flux of 2,780 to 3,660 lumens and a lifespan of up to 50,000 hours. The housing is made of aluminium and has a cylindrical shape. With a length of 17.3 cm, a diameter of 9 cm, and a height of 14 cm, the spotlight is compactly designed. The IP20 protection rating and IK03 impact resistance provide basic protection against contact and mechanical impacts. The light distribution features a beam angle of 36 degrees.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3660 lm
electrical power	17 W
CRI	90
Net weight	0.81 kg
Diameter	9 cm
Height	14 cm
Length	17.3 cm
IP Code	IP20
Service life	50000 h
Luminous flux	2780 - 3660 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	450-600mA
Light outlet version	Bottom
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT P 3PH. 33 930
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, Ceiling lights, Indoor, Track systems
