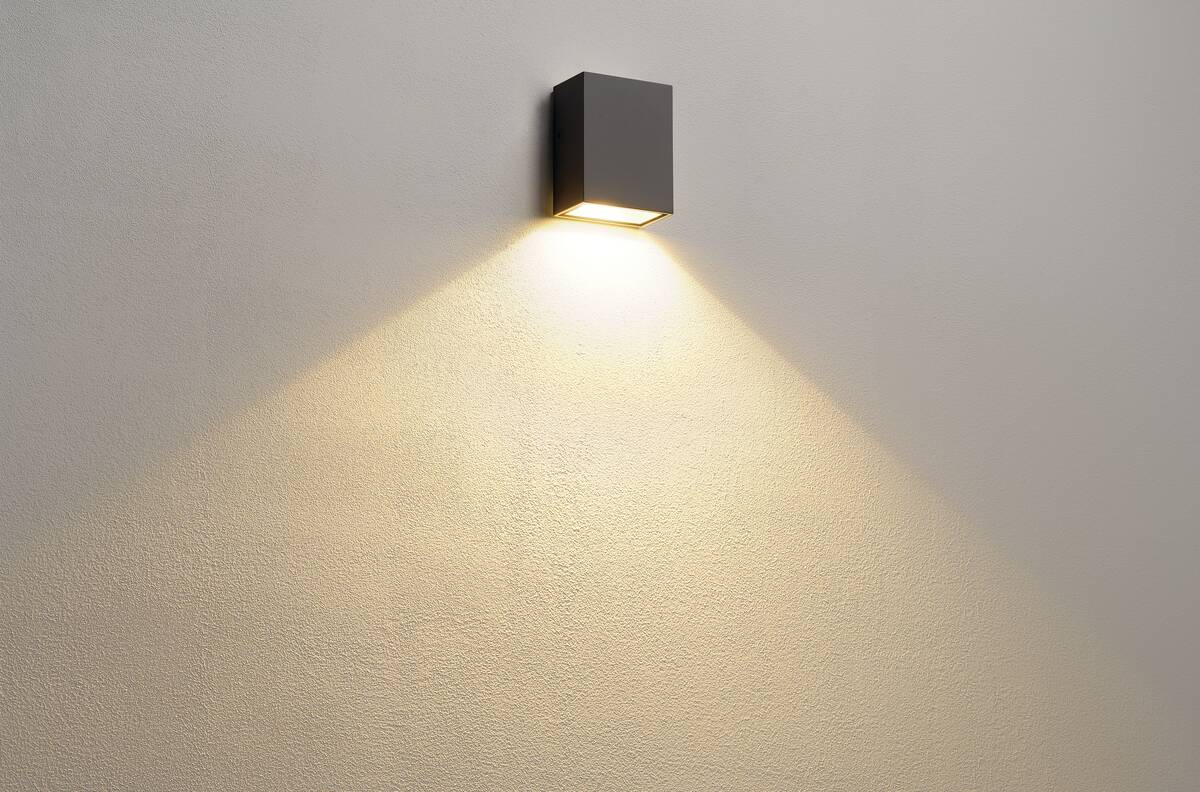

The QUAD 1 XL wall light is available in several colours, and fitted with a powerful, warm white LED. The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. Thanks to its IP44 protection class, the luminaire is suitable for outdoor use.

Tehnilised andmed

Half beam angle	110 °
Colour	anthracite
Colour temperature	3000 Kelvin
Luminous Flux	260 lm
electrical power	4 W
Net weight	0.612 kg
Height	11 cm
Width	8.4 cm
IP Code	IP44
Service life	30000 h
Primary nominal voltage	100-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Shape	square
Different light outlets	1
Seperate beams	Yes
Ambient temperature	-20 °C
Shock resistance category	IK05
Shock resistance	0.7 joule
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	BIG QUAD
CCT Switch	No
DALI capable	No
Assembly	Surface
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	LED, Outdoor, Surface mounted , Wall lights
