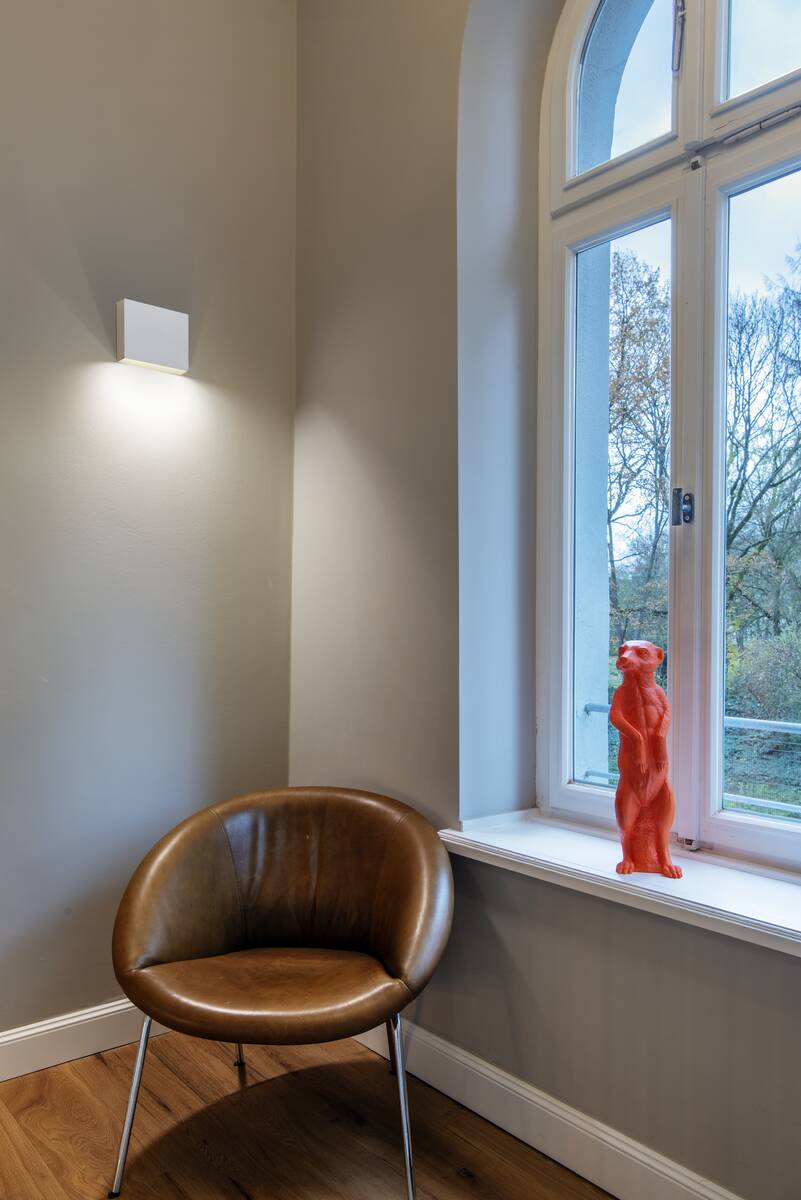

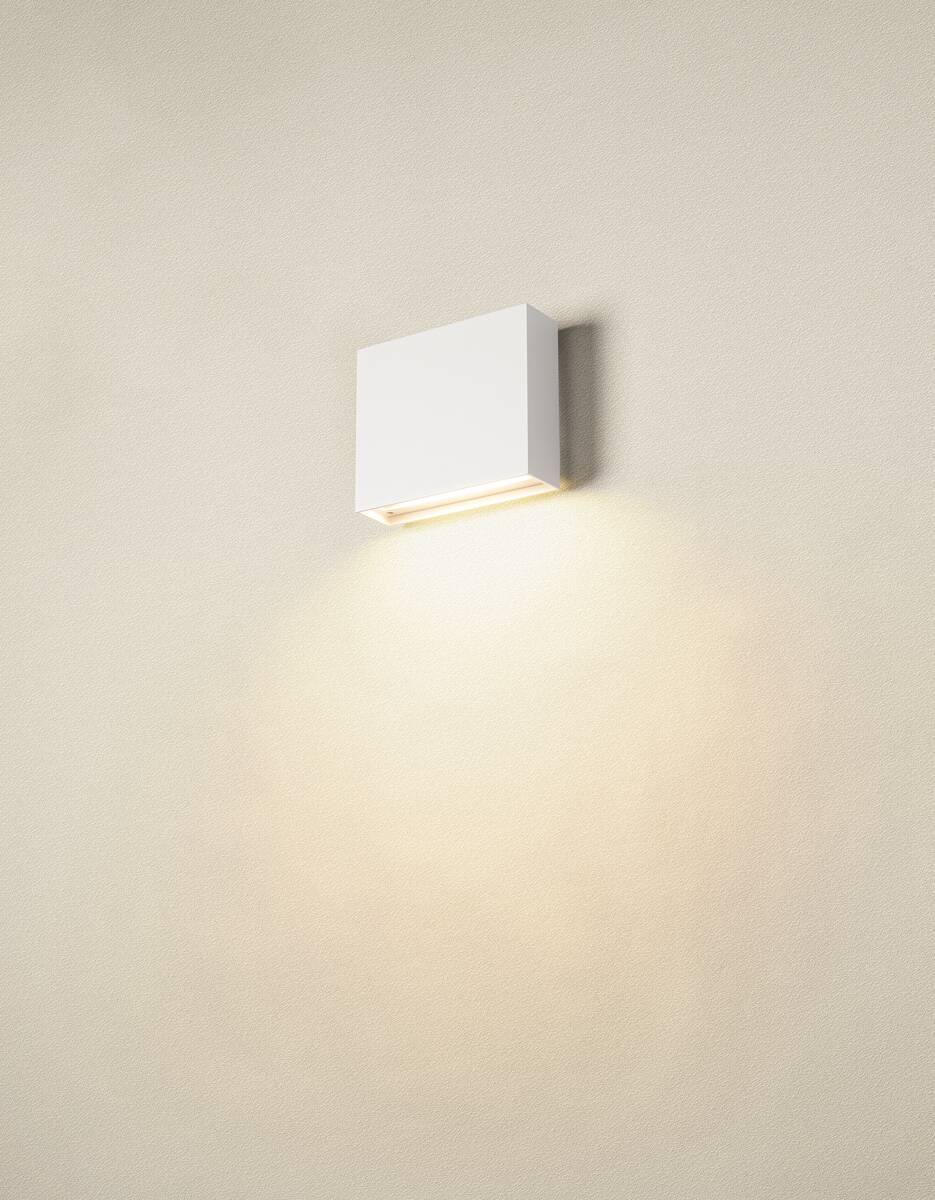

LED surface-mounted wall light QUAD FRAME 14. The invisibly installed LED emits its light indirectly onto the surface to be illuminated. This makes glare-free illumination of walkways and staircases possible, for example. The QUAD FRAME 14 recessed fitting is available in white colour version. The light colour can be switched between 2700 K and 3000 K during installation using the built-in CCT switch. This luminaire contains built-in LED lamps.

Tehnilised andmed

Half beam angle	100 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	640 lm
electrical power	11 W
CRI	90
Net weight	0.668 kg
Height	15.5 cm
Width	18.5 cm
IP Code	IP20
Service life	30000 h
Luminous flux	580 / 640 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Number of through-wires	10
Ambient temperature	-20 °C
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	QUAD FRAME 19
CCT Switch	Yes
DALI capable	No
Risk group	0
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Surface mounted , Wall lights
Sildid	CCT switch, LED wall light
