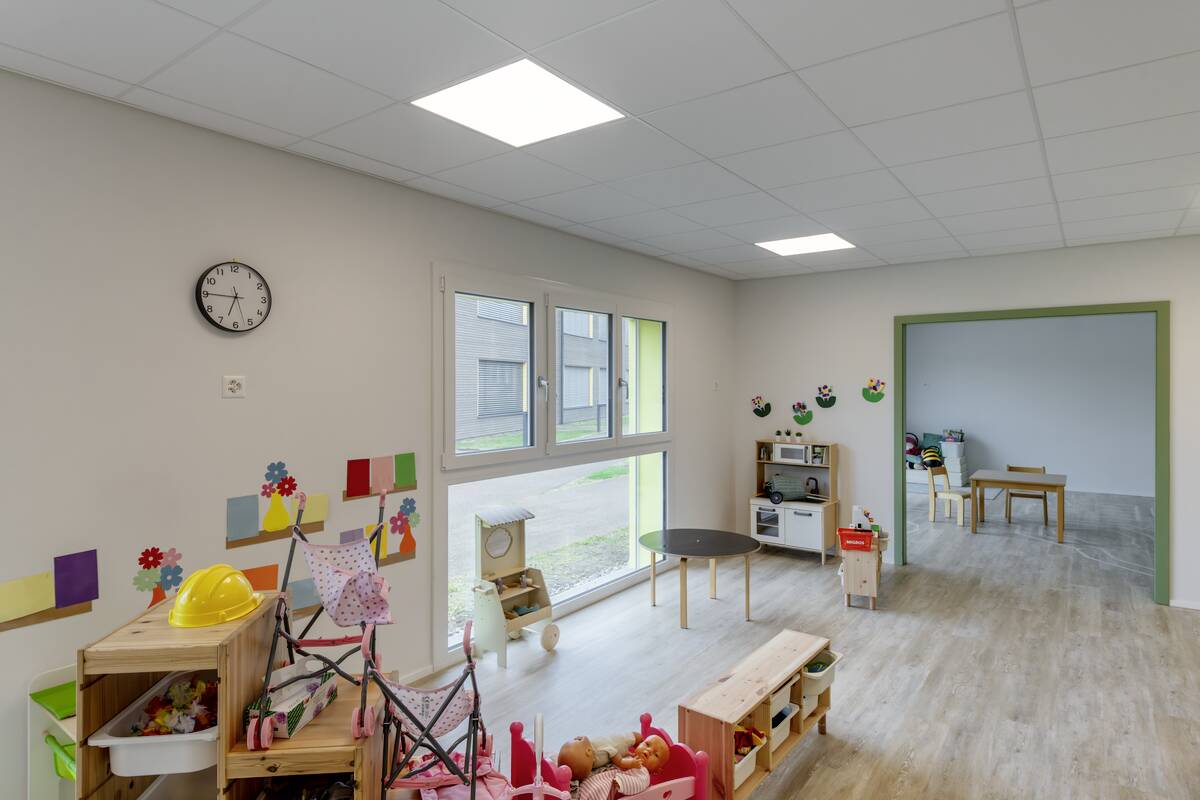

The recessed ceiling luminaire PANEL C 625 34 W 830/840 UGR is designed for indoor use and is particularly suitable for office and administrative areas where glare-free general lighting is required. The square luminaire housing is made of aluminium and measures 62 x 62 cm with a height of 2.8 cm. The luminaire provides a luminous flux of 4550 to 4650 lumens at a colour temperature of 3000 to 4000 Kelvin and offers a low UGR value to minimise glare. Installation is as a recessed ceiling luminaire. The protection rating is IP20 or IP54, protecting the luminaire against dust and splashing water, while the impact resistance corresponds to IK02. The light source has a declared lifetime of 70,000 hours.

Tehnilised andmed

Half beam angle	90 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	4650 lm
electrical power	34 W
CRI	80
Net weight	2.115 kg
Installation depth	8 cm
Shape of cut-out	square
Installation length	59 cm
Installation width	59 cm
Height	2.8 cm
Length	62 cm
Width	62 cm
IP Code	IP20/IP54
Service life	70000 h
Luminous flux	4550 / 4650 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	850 mA
Light outlet version	Down
Shape	square
Ambient temperature	-20 °C
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
UGR ≤	19
Product name	PANEL C 625
CCT Switch	Yes
Assembly	Recessed
Risk group	0
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, Recessed
