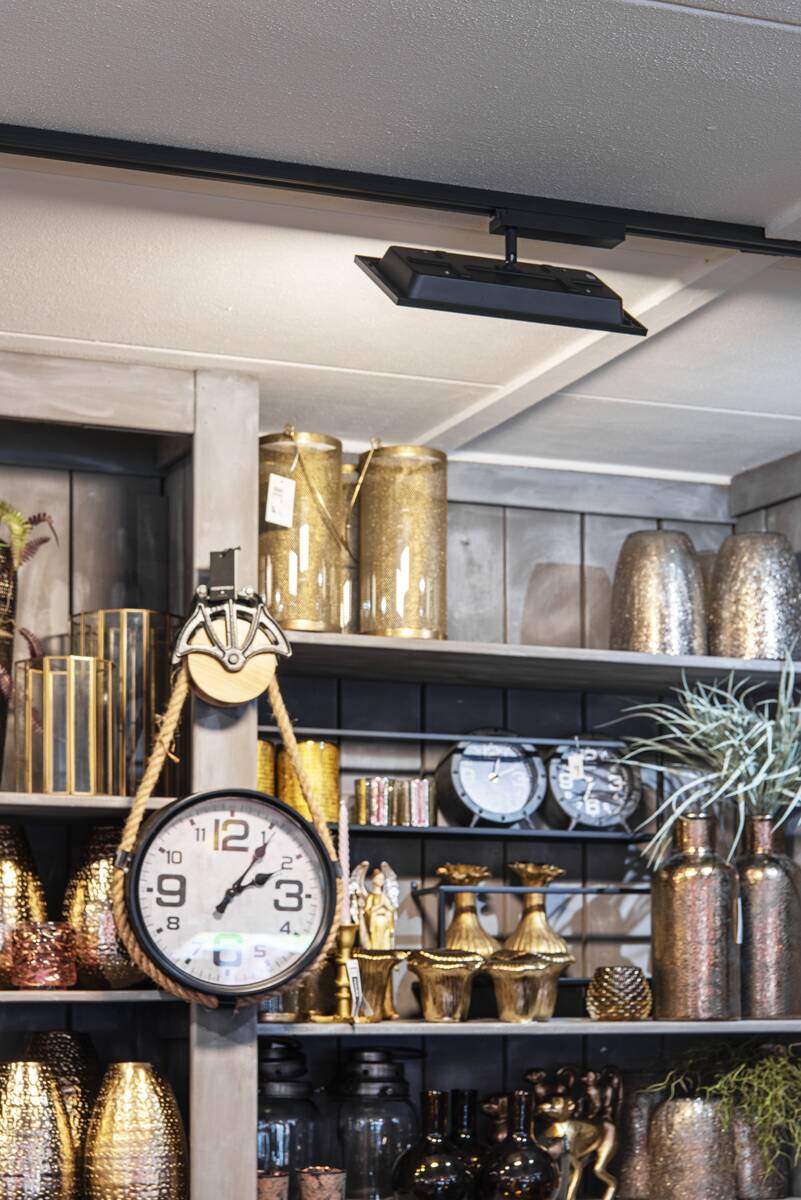

The PANEL TRACK is a single-phase, square spotlight with a power consumption of 18 watts and a colour temperature of 3000 Kelvin. It is suitable for flexible indoor lighting, especially for use on track systems in commercial and public areas. With a luminous flux of 1800 lumens, the spotlight provides efficient and focused illumination. The housing is made of polycarbonate and steel, ensuring a robust construction. The dimensions are 30 cm in length, 15 cm in width, and 10.9 cm in height. The IP20 protection rating makes the spotlight suitable for dry indoor environments. Installation is via a single-phase track system, allowing easy positioning and adjustment of the spotlight. The declared lifetime is 50,000 hours.

Tehnilised andmed

Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	18 W
CRI	90
Net weight	0.549 kg
Height	10.9 cm
Length	30 cm
Width	15 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	450 mA
Rotating or tilting	rotary bar and tiltable
Horizontal rotation range	350 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	180 °
Ambient temperature	-20 °C
Shock resistance	0.2 joule
Material	polycarbonate (PC)
UGR ≤	27.5
Product name	PANEL TRACK
CCT Switch	No
DALI capable	No
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
