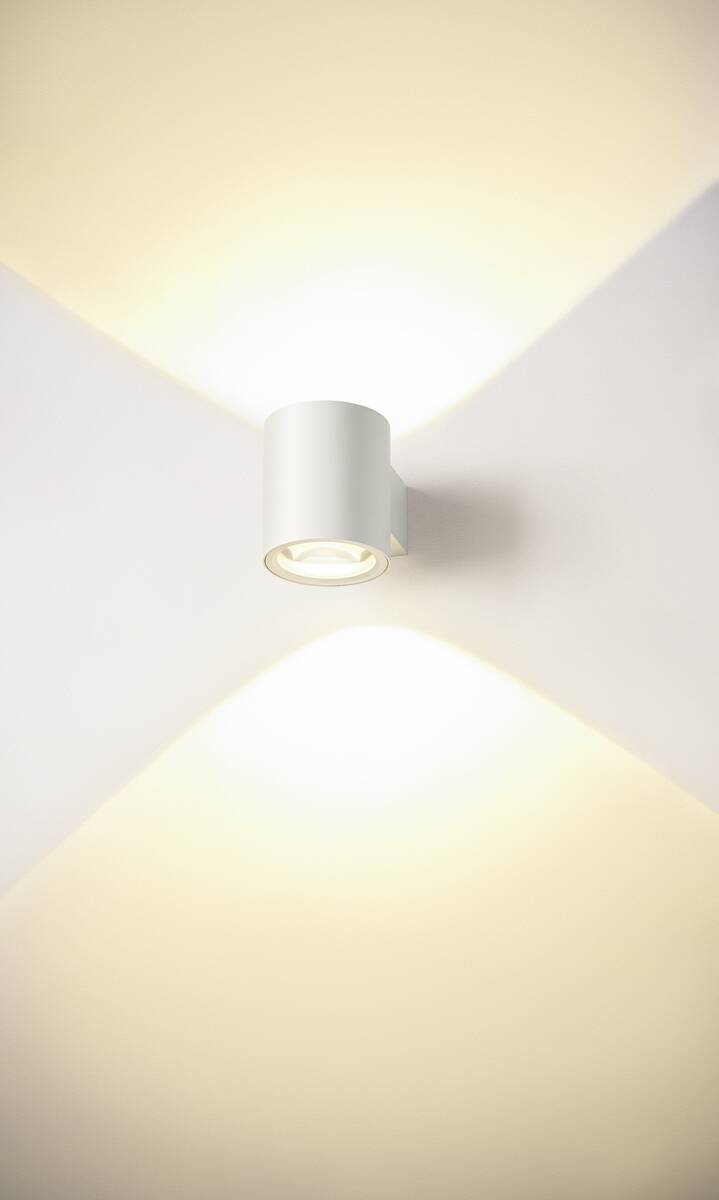

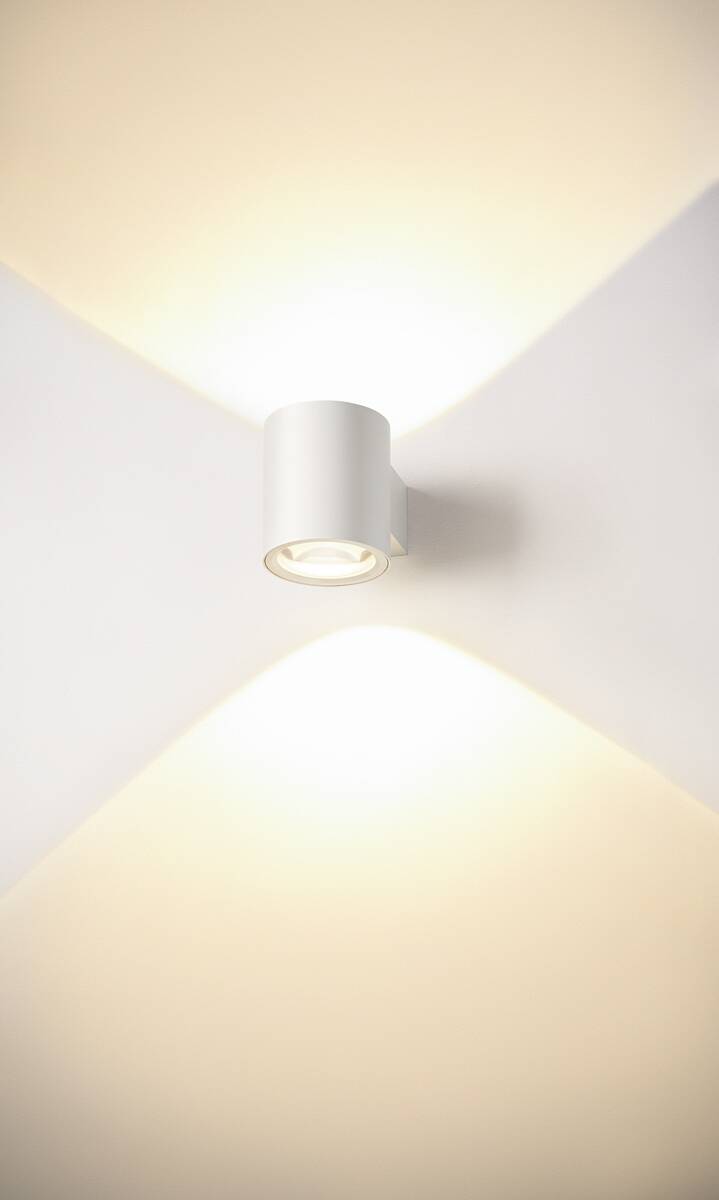

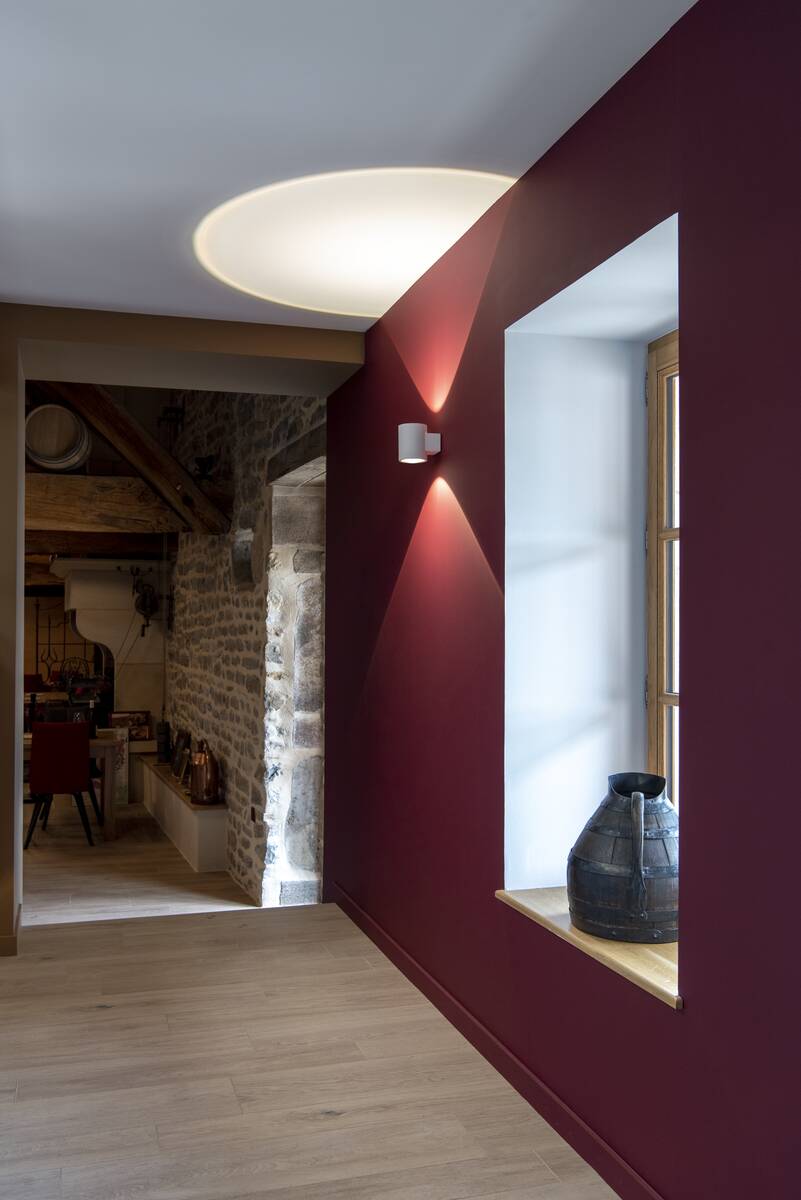

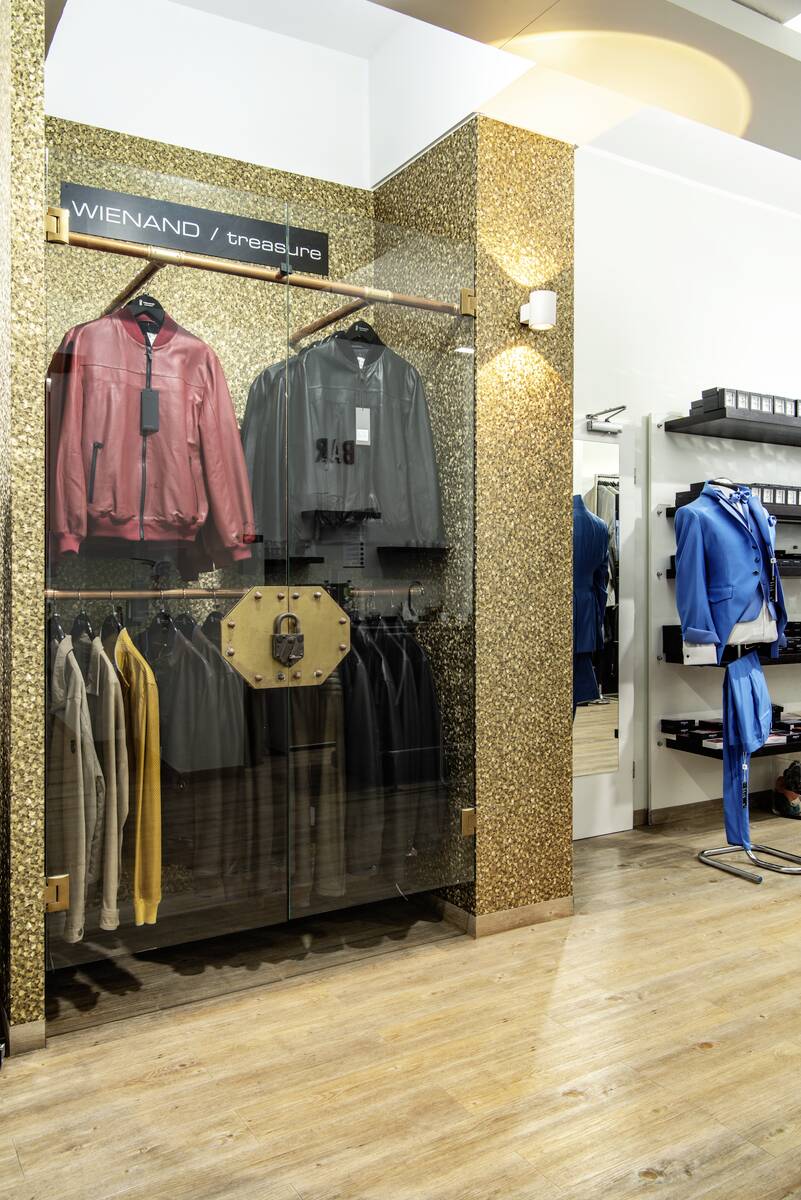

With a high colour rendering index (CRI >90) and the option of dim-to-warm dimming for an especially warm light (2000-3000 K), every member of the OCULUS family can conjure up a unique lighting mood. The special lens optics provide a sharply contoured lighting effect, making this light perfect for accent lighting in sophisticated homes, medical practices, law firms, cafés, hotels and restaurants. By using the included frosted shade, the light can also be adjusted to provide diffuse light distribution rather than sharply contoured lighting.

Tehnilised andmed

Half beam angle	100 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	1110 lm
electrical power	15 W
CRI	90
Net weight	0.877 kg
Diameter	9 cm
Height	11 cm
Beam angle	100 °
IP Code	IP20
Service life	50000 h
Luminous flux	44 - 1110 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Light outlet version	Up
Variant Dimm options	Trailing edge
Different light outlets	2
Seperate beams	Yes
TC point (°C)	85 °C
Ambient temperature	-20 °C
Berker 2873 Result	Not compatible
Shock resistance category	IK02
Shock resistance	0.2 joule
Legrand PRO21 LED Dimmer 775659 Result	With restrictions
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	OCULUS UP/DOWN
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Indoor, LED, Surface mounted , Wall lights
Sildid	DIM TO WARM
