OCULUS

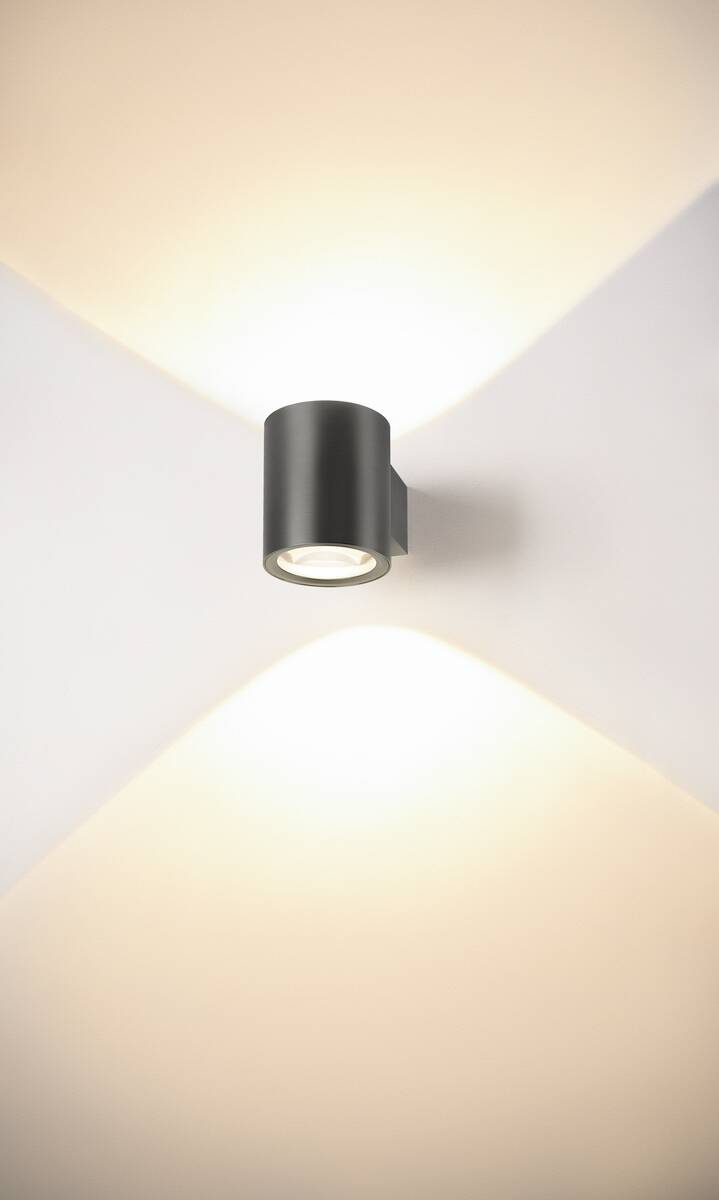

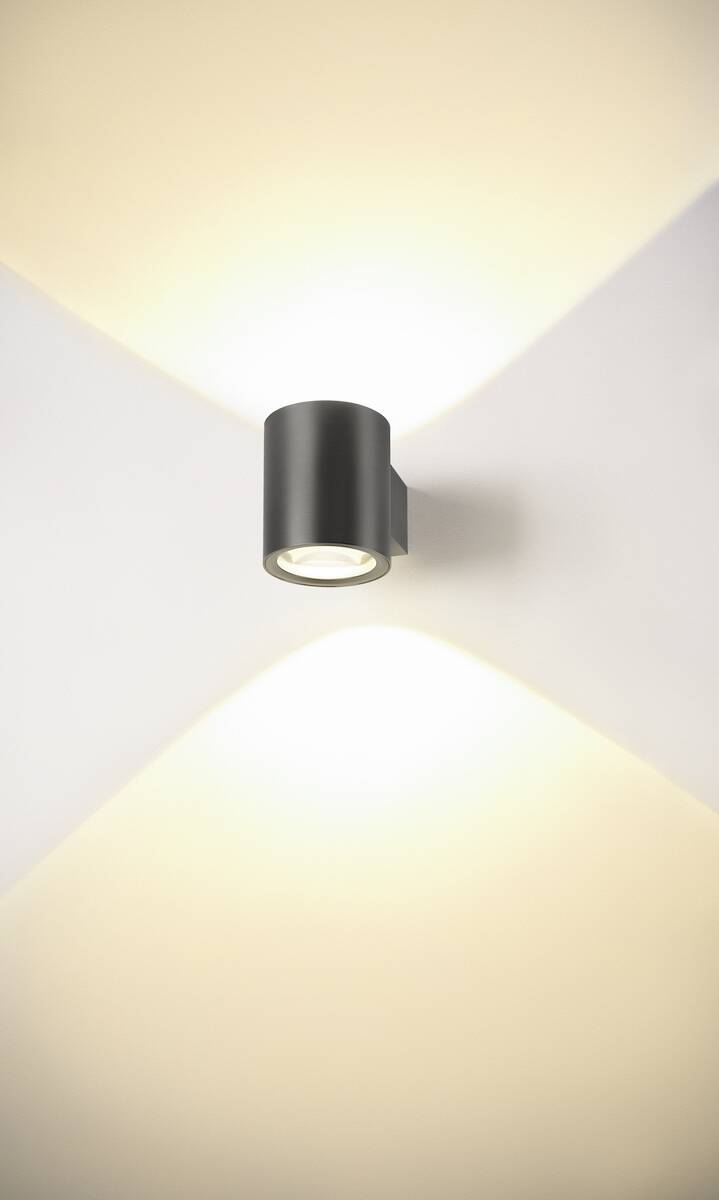

The OCULUS surface-mounted wall light in a round shape is designed for wall installation and is suitable for indoor areas with an IP20 protection rating. It features a dim-to-warm phase-cut dimming, allowing seamless adjustment of the light colour from 2000 to 3000 K. With a power consumption of 15 W and a beam angle of 100°, it offers flexible light distribution. The housing is made of aluminium and finished in dark bronze. The luminaire has a height of 11 cm, a diameter of 9 cm, and a depth of 12.5 cm. Impact resistance corresponds to IK02 class. The OCULUS surface-mounted wall light is suitable for use in residential and commercial areas where dimmable and aesthetically pleasing lighting is desired.

Tehnilised andmed

Half beam angle 100 °
Colour dark bronze
Colour temperature 3000 Kelvin
Luminous Flux 1110 lm
electrical power 15 W
CRI 90
Net weight 0.978 kg
Diameter 9 cm
Height 11 cm
Beam angle 100 °
IP Code IP20
Service life 30000 h
Luminous flux 44 - 1110 lm
Primary nominal voltage 220-240V ~ 50/60Hz
Secondary power / secondary voltage 700 mA
Light outlet version Up
Shape round
Variant Dimm options Trailing edge
Different light outlets 2
Seperate beams Yes
Ambient temperature -20 °C
Berker 2873 Result Not compatible
Shock resistance category IK02
Shock resistance 0.2 joule
Legrand PRO21 LED Dimmer 775659 Result With restrictions
Material Aluminium
Product name OCULUS WL UP/DOWN
CCT Switch No
Dimmable Yes
Assembly Surface
Risk group 1
Busch-Jäger 6523U Result Compatible
Eltako EUD 61 NPN-UC Result Compatible
Jung 224 LED UDD Result Compatible
LK Fuga LED Dimmer 180 Touch Result Compatible
Merten MEG5134-0000 Result Compatible
Niko 310-0190X Result Compatible
SLV 470807 Result Compatible
Tehnilised failid Manual
Datasheet
CE declaration
Removal instructions
Assembly drawings
REACh
Kategooriad Indoor, Wall lights
