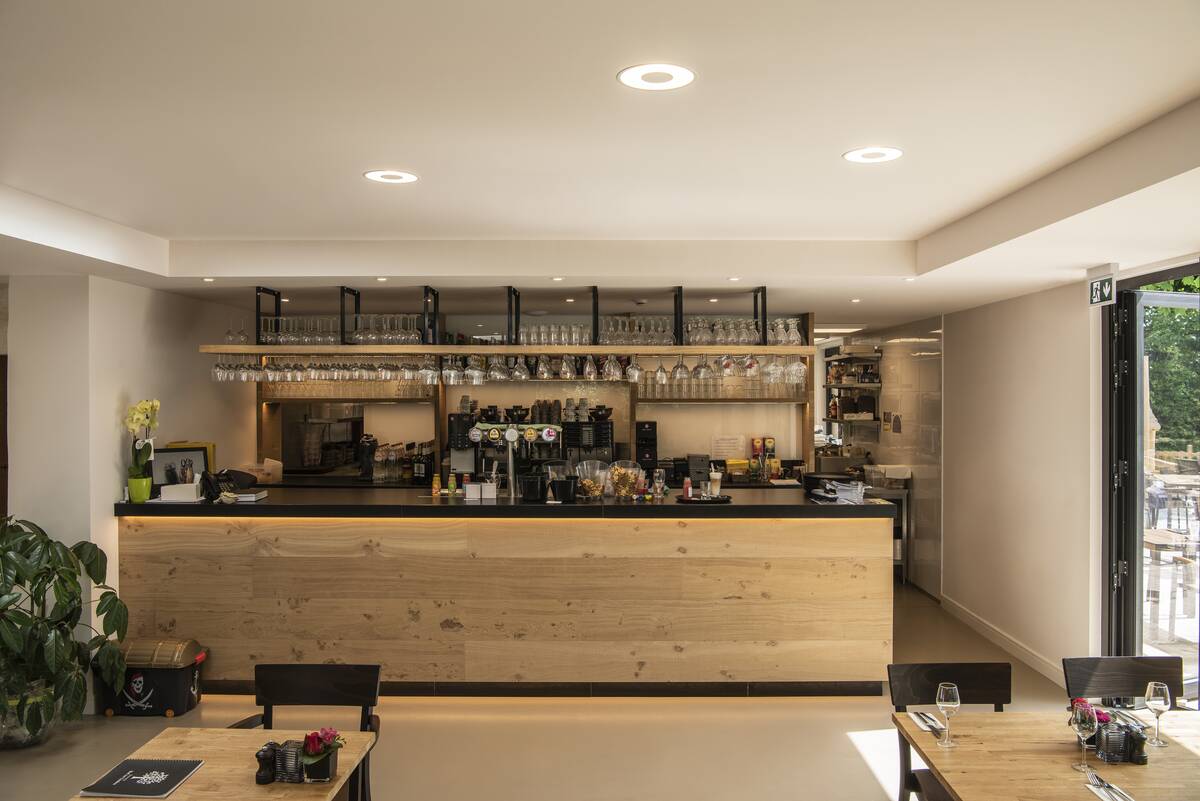

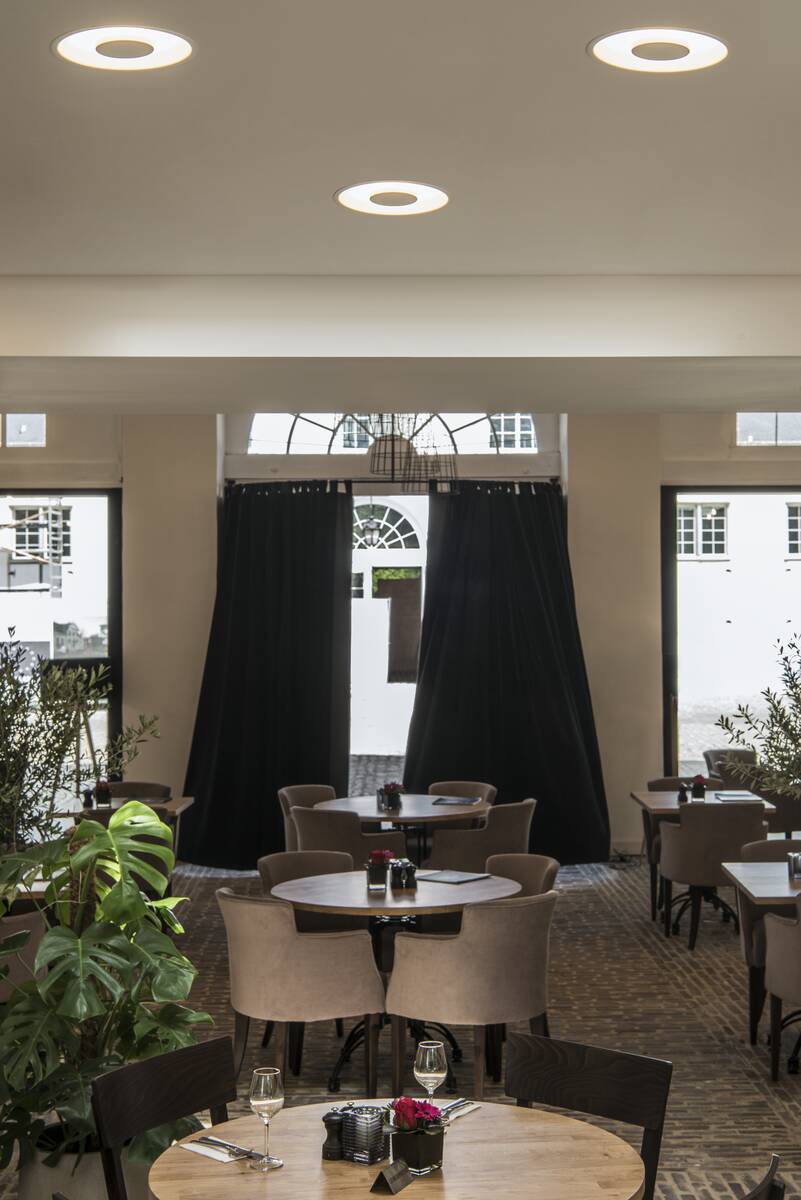

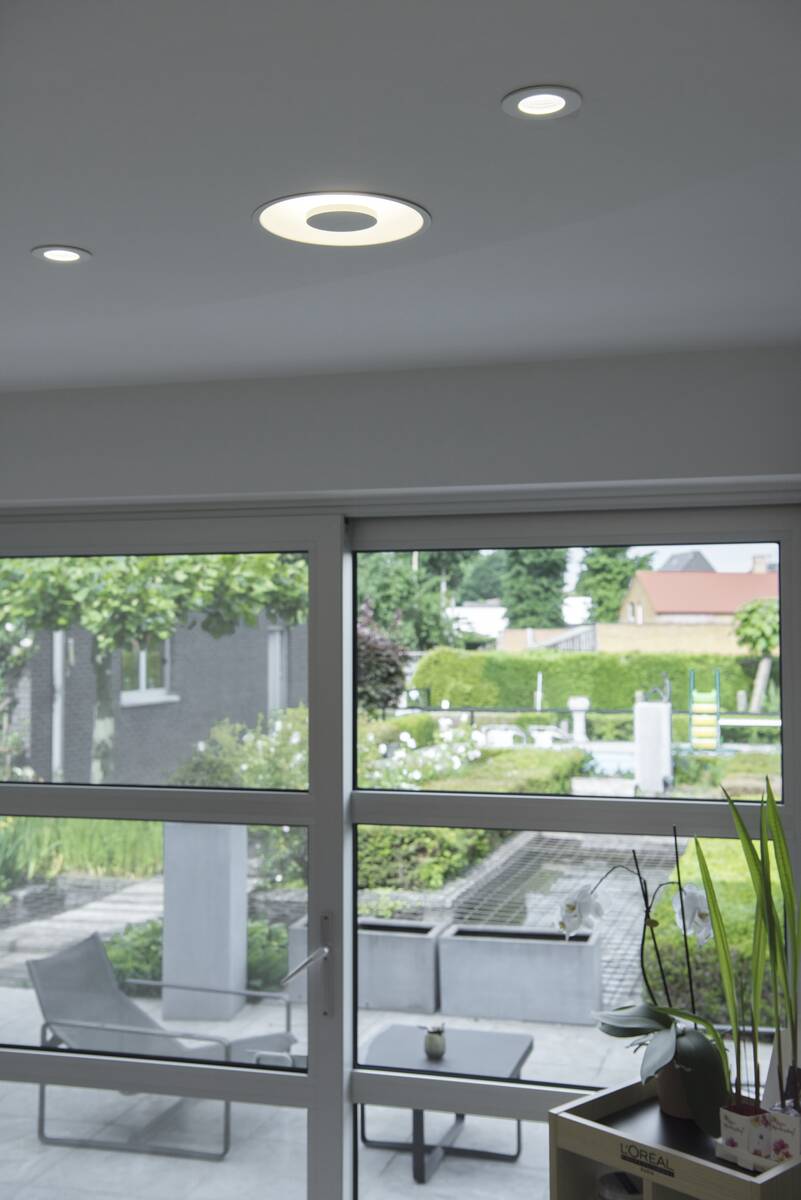

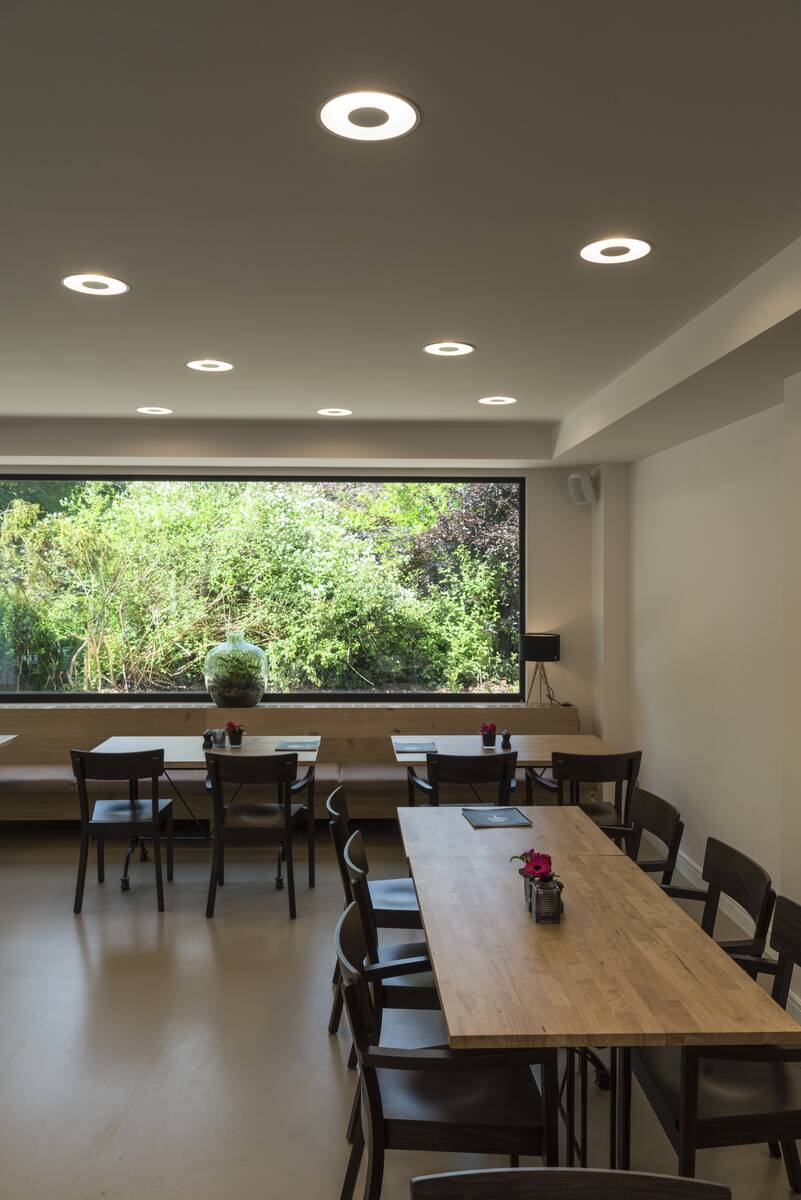

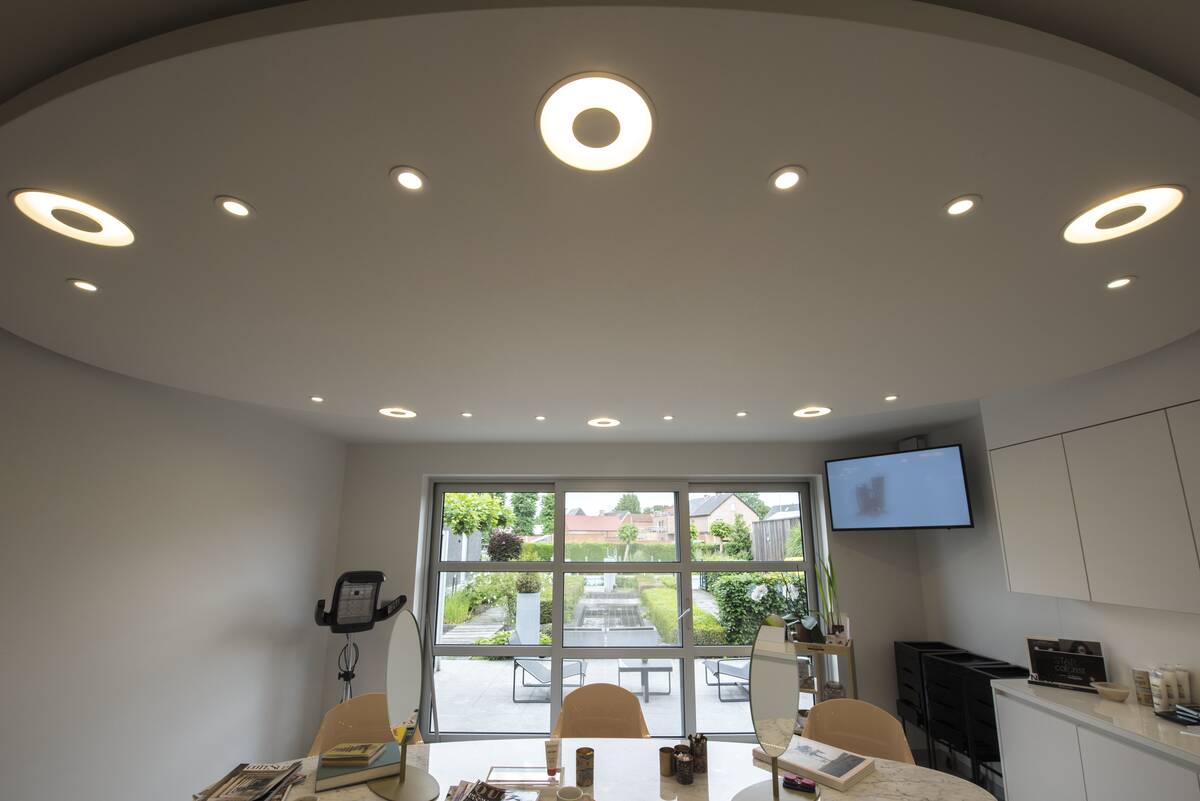

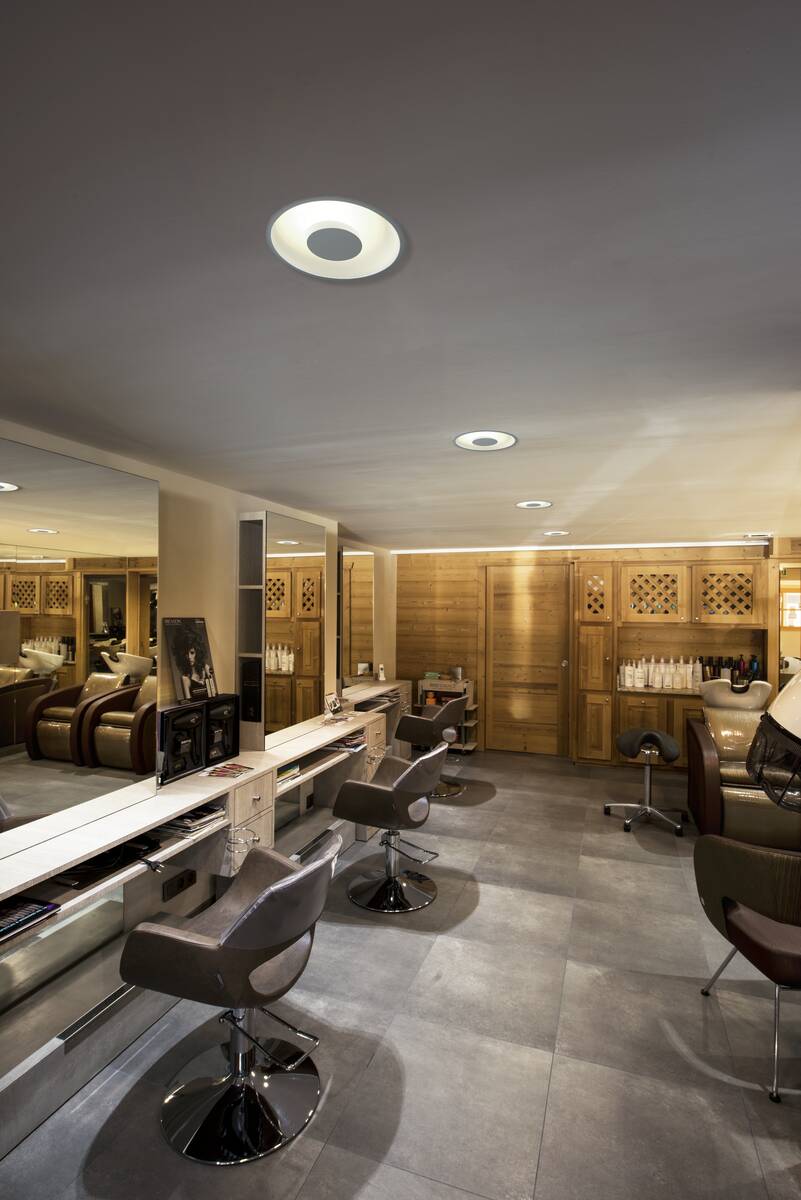

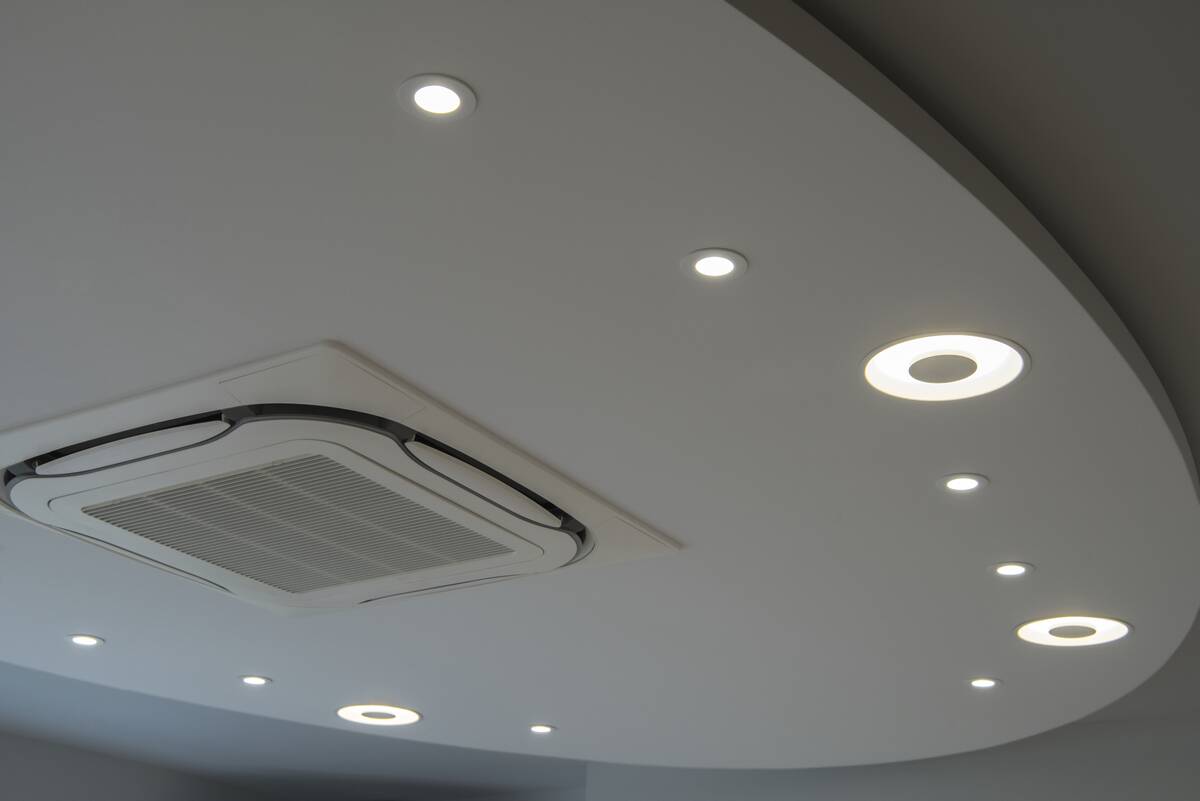

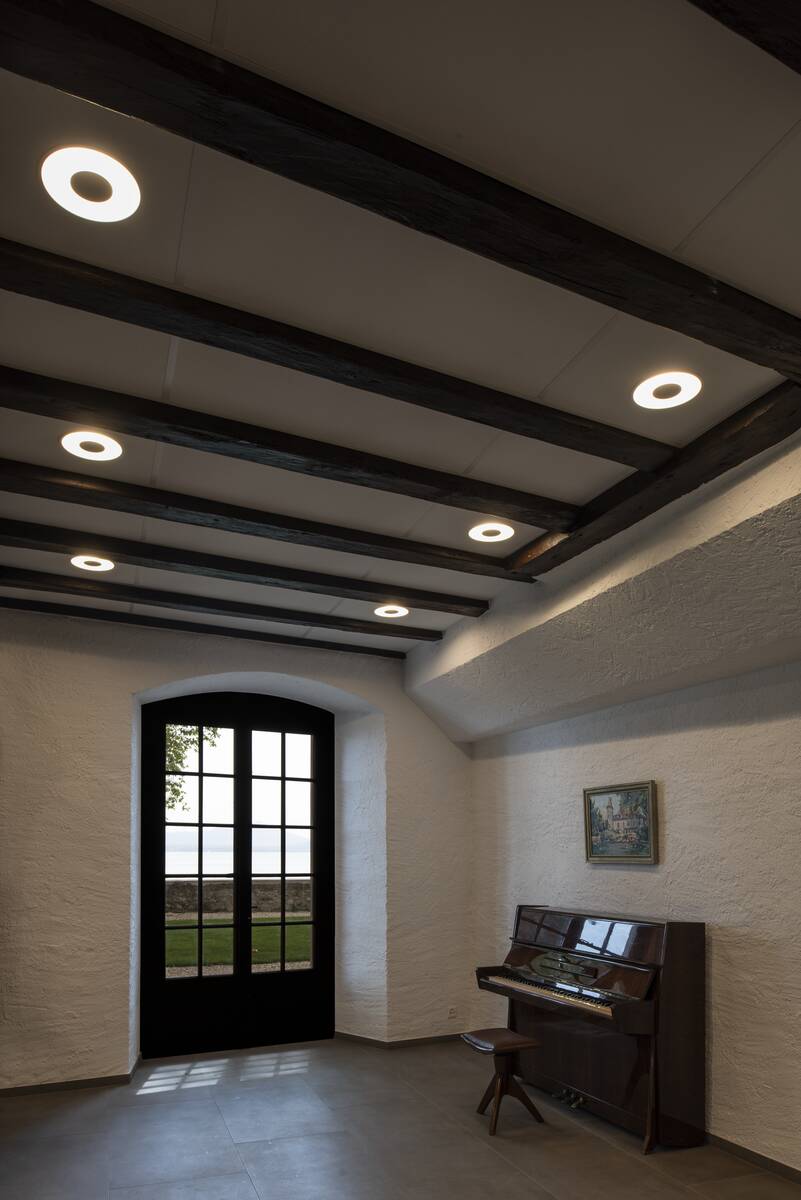

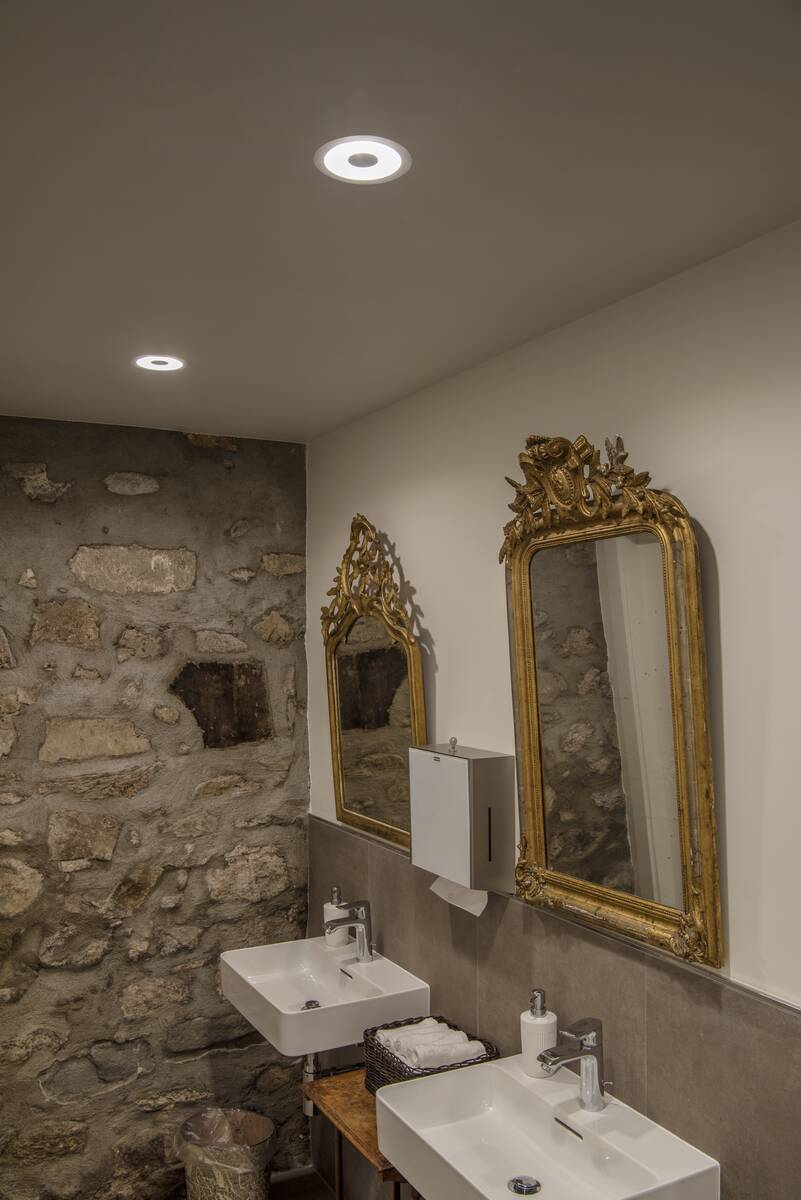

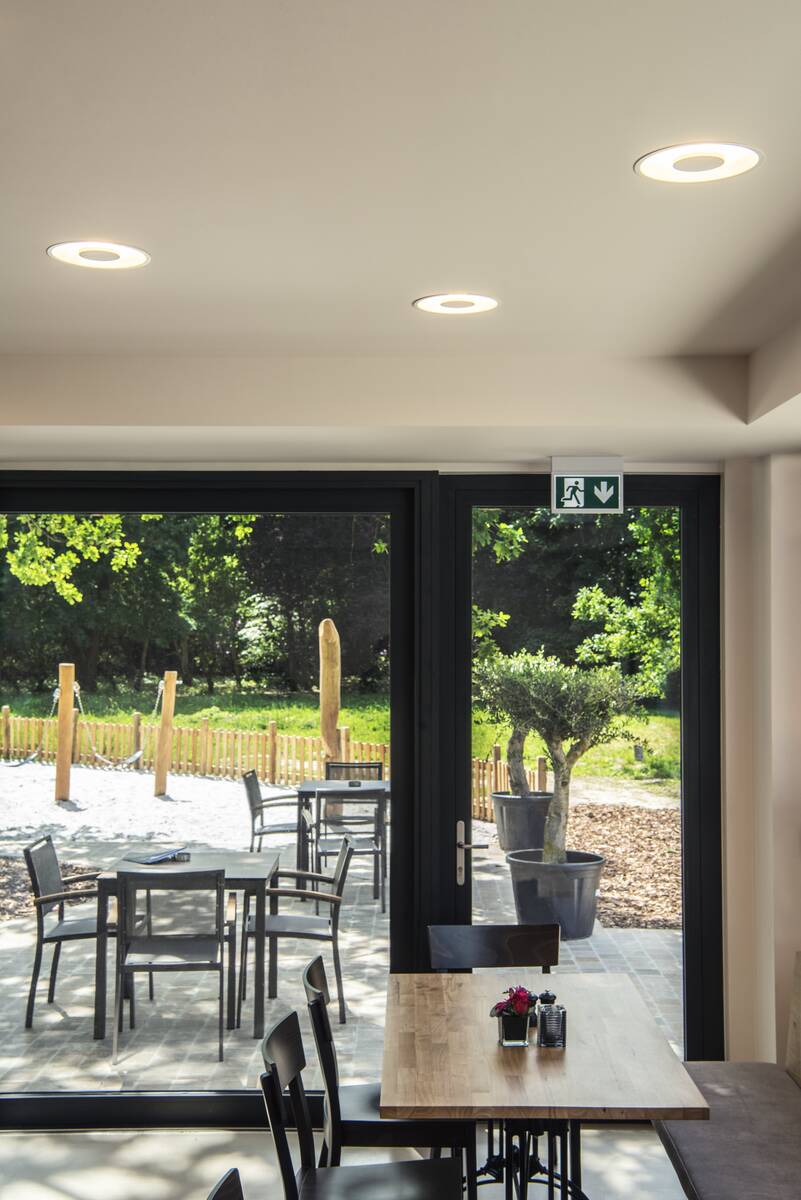

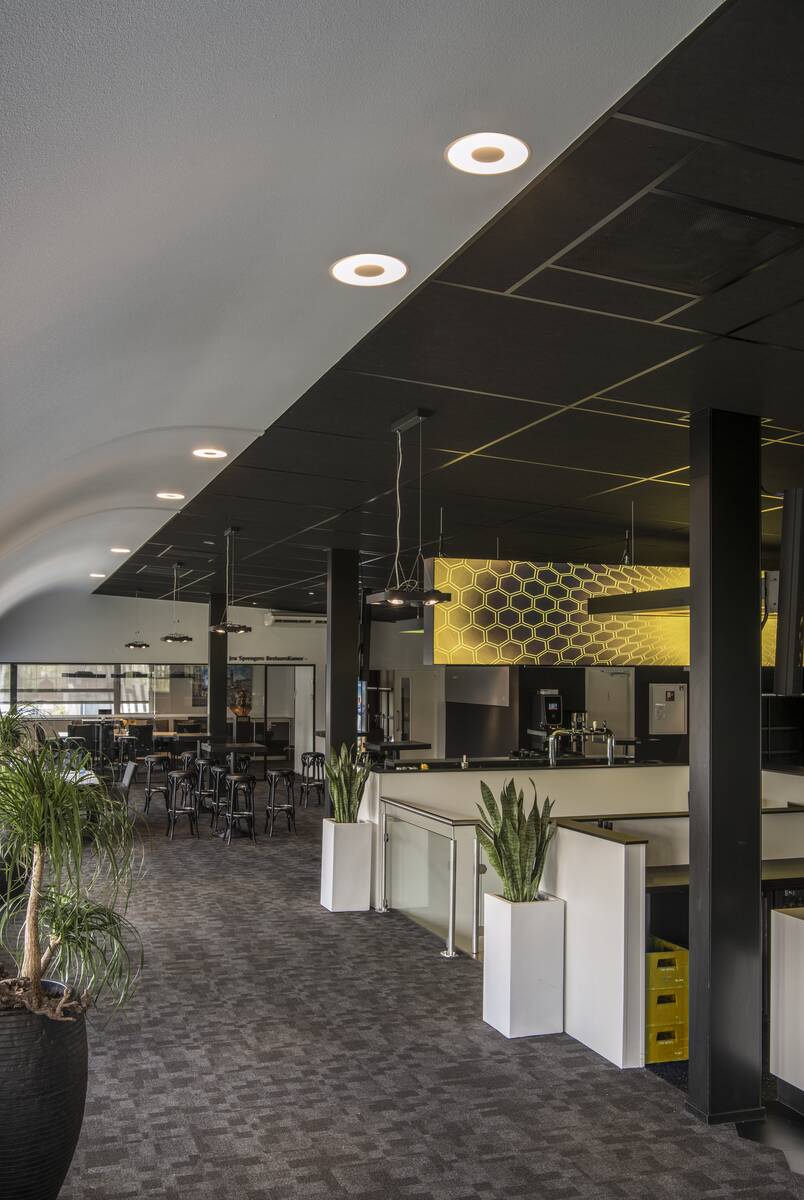

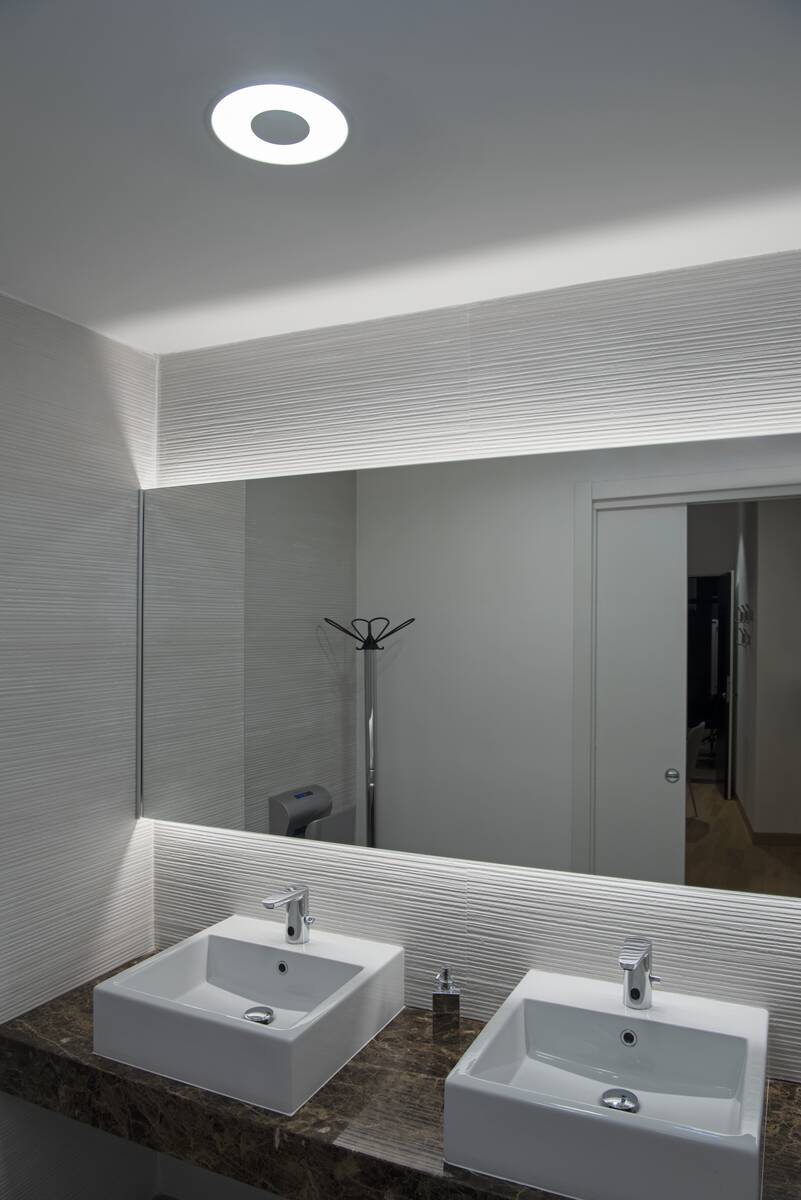

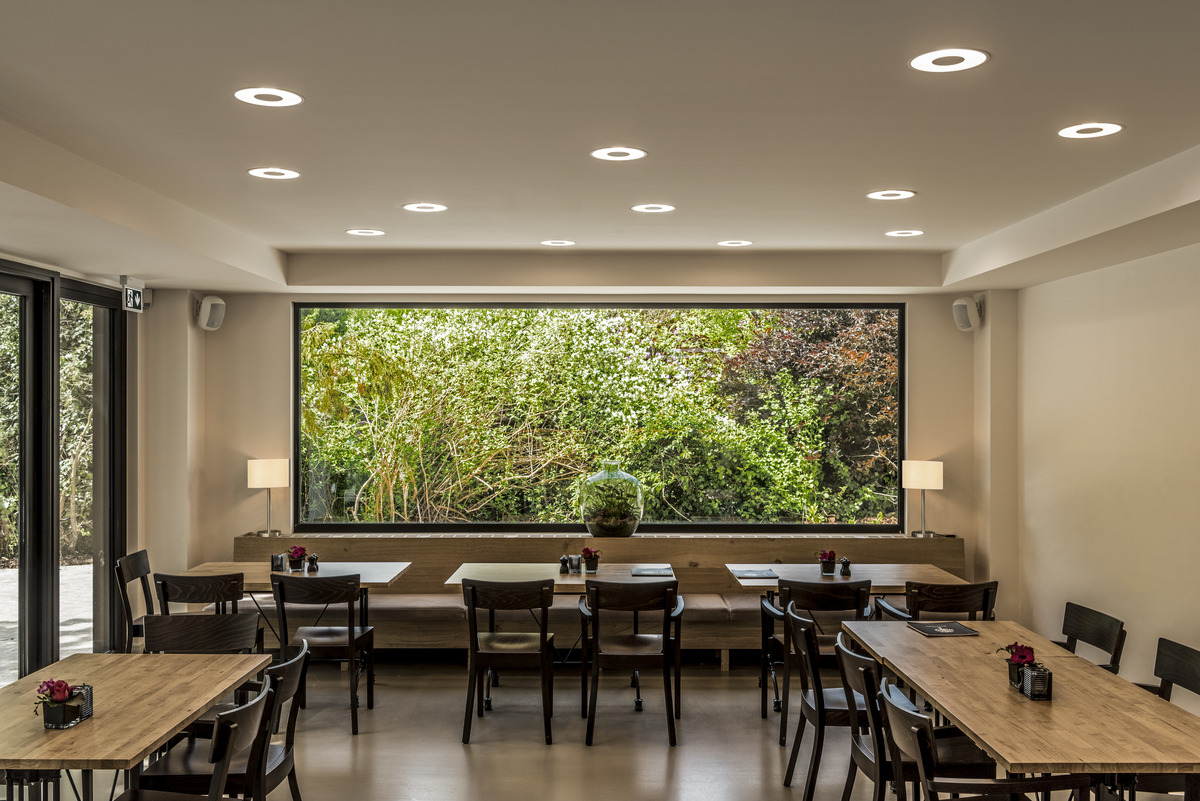

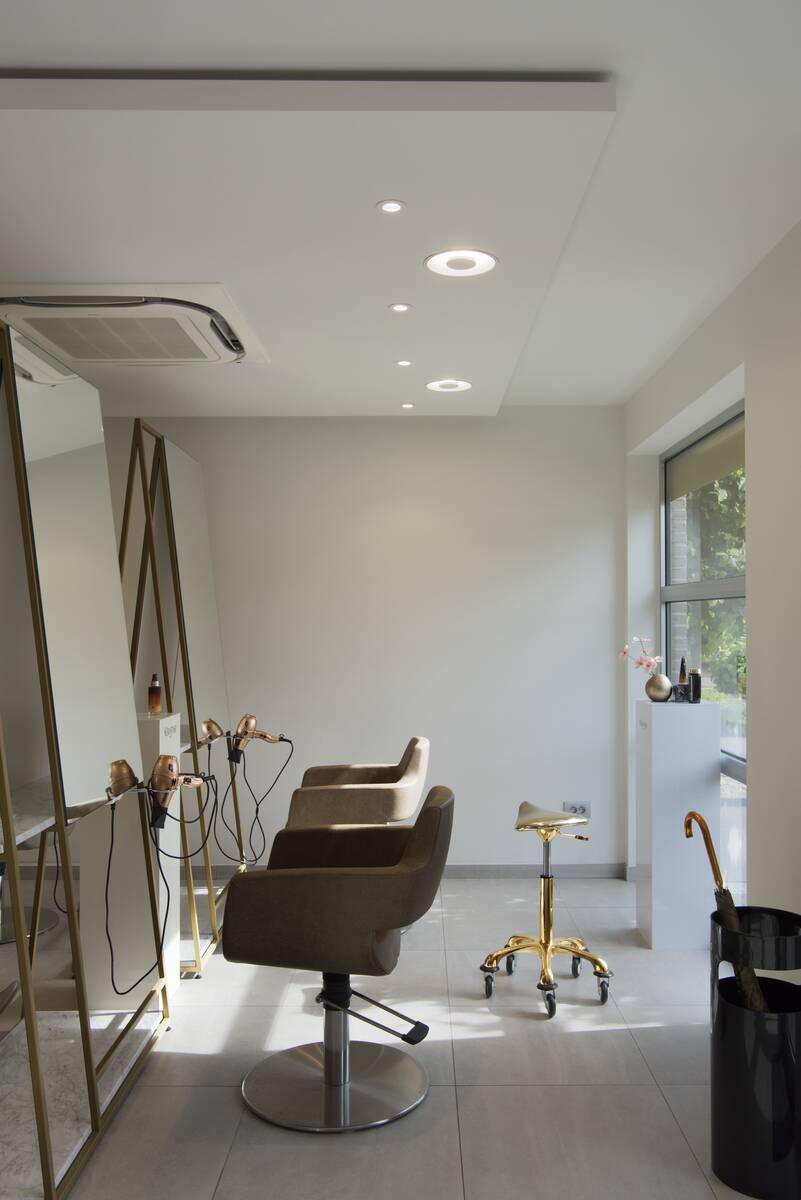

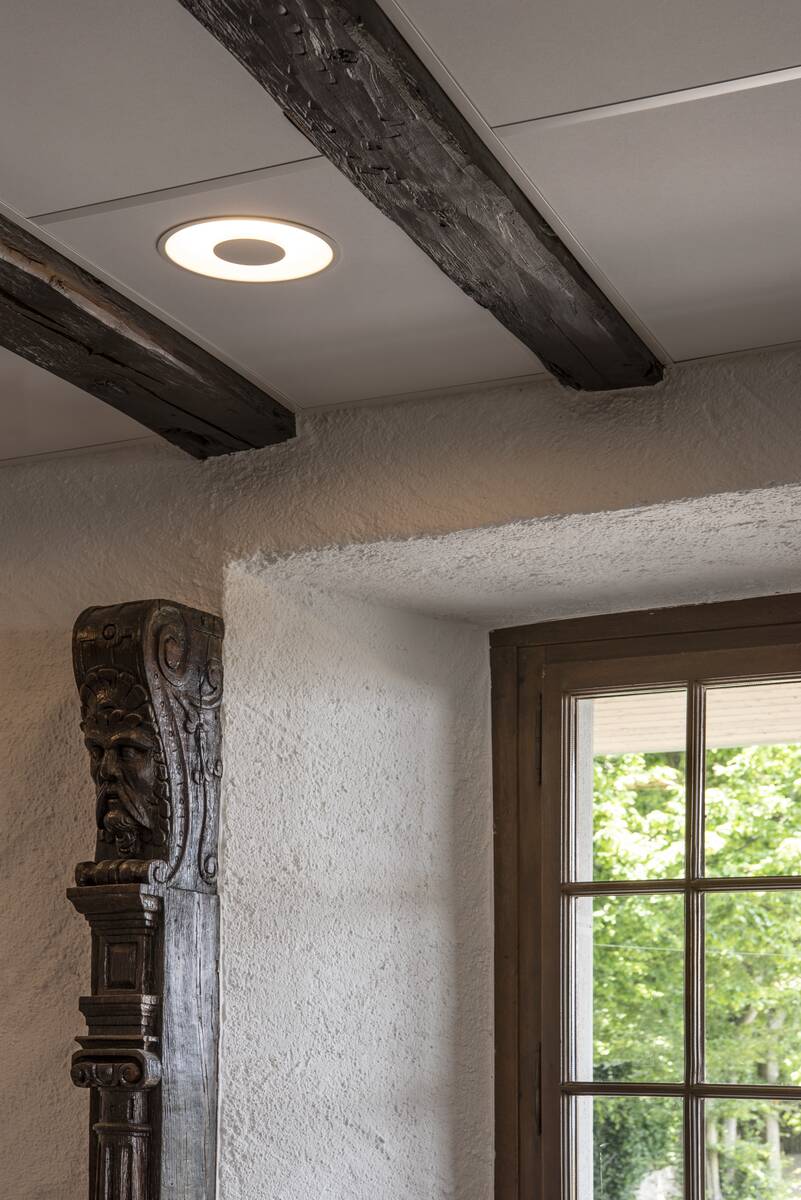

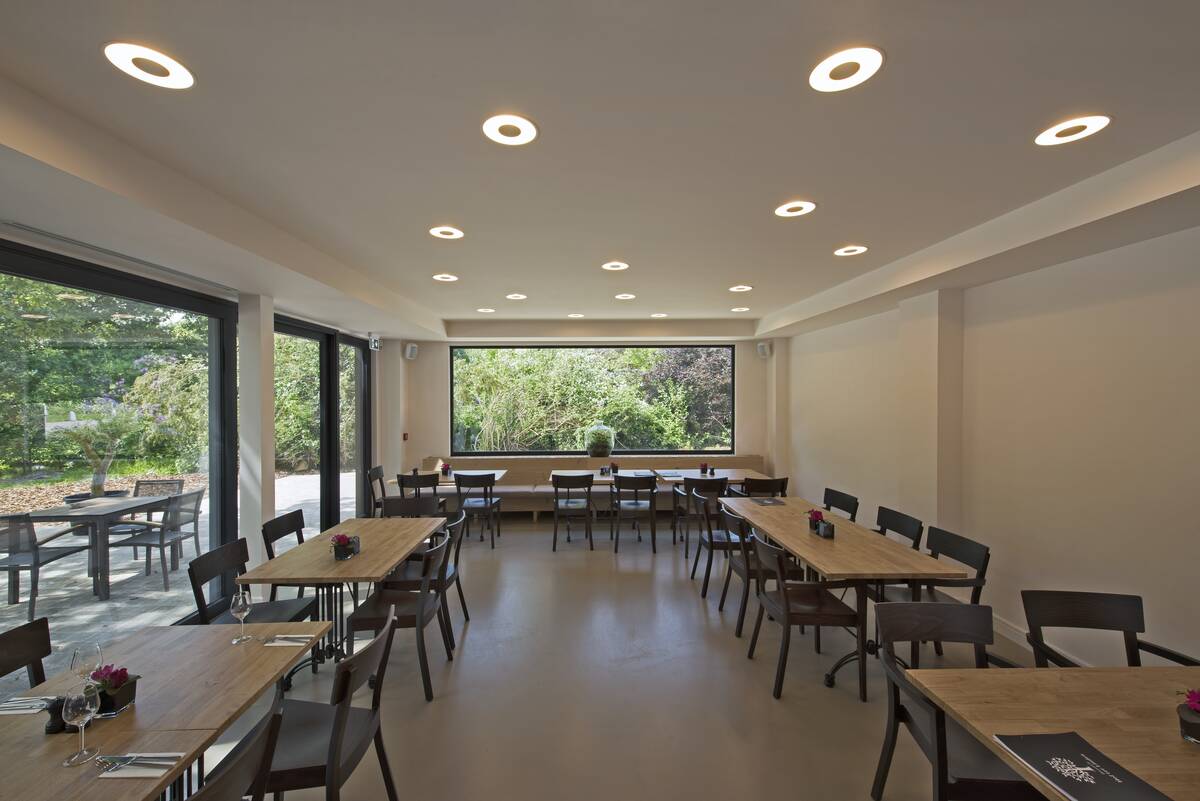

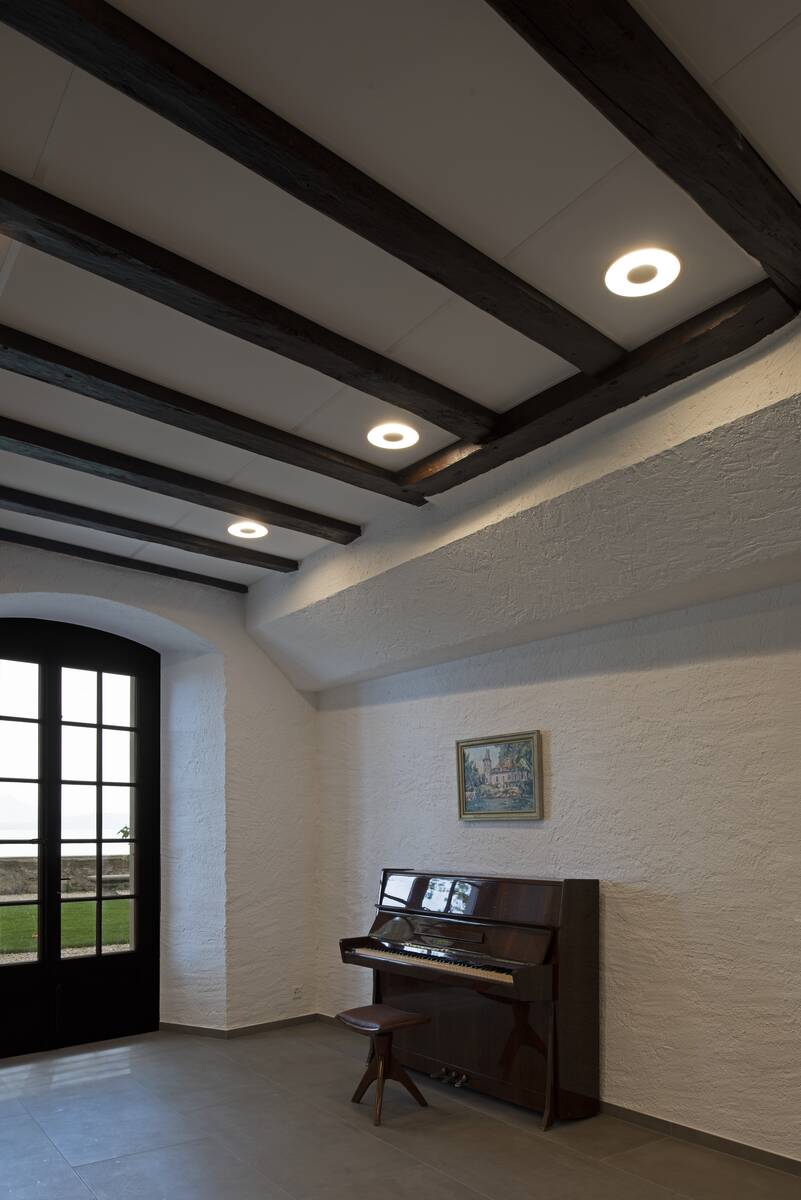

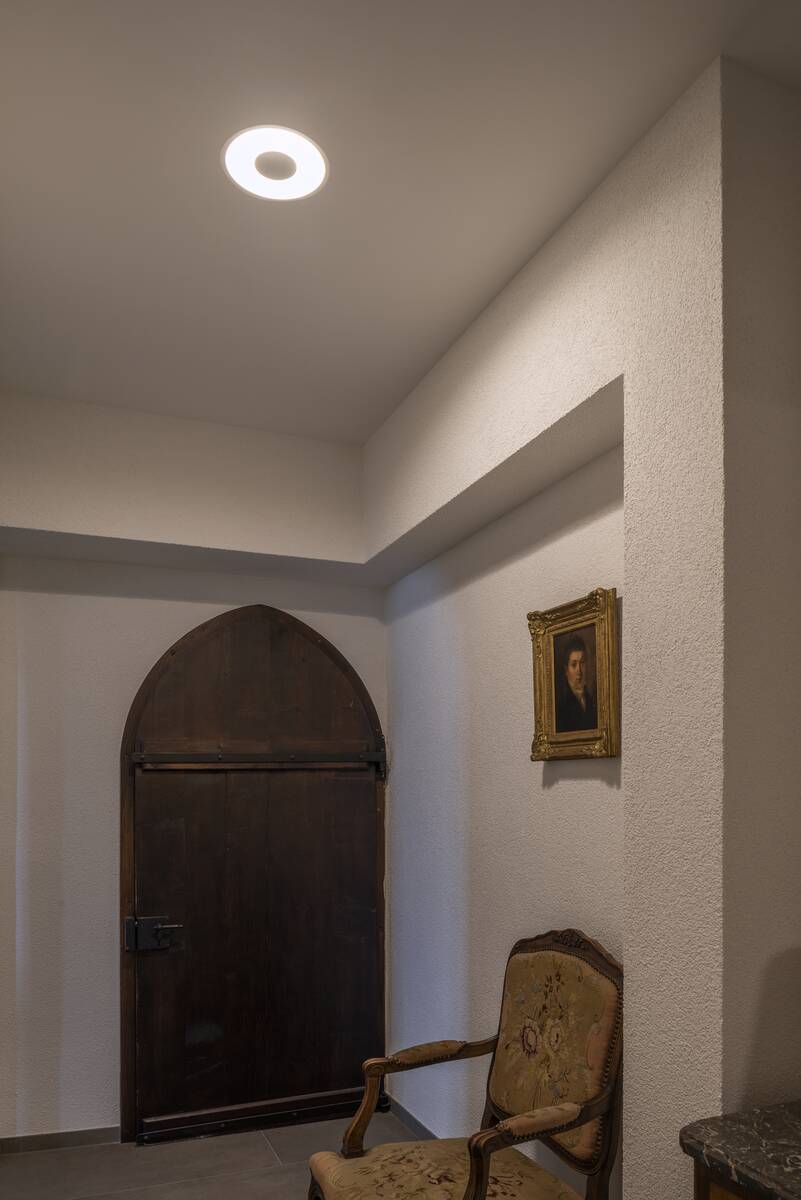

The OCCULDAS 23 dimmable recessed ceiling light was designed exclusively by David Morgan and is fitted with a premium LED. The central trim ensures homogeneous, glare-free, atmospheric indirect lighting. Thanks to the built-in LED driver, the luminaire is suitable for direct connection to a 230V mains supply.

Tehnilised andmed

Half beam angle	120 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	1500 lm
electrical power	23 W
CRI	80
Net weight	1.31 kg
Installation depth	8.5 cm
Installation diameter	20.5 cm
Shape of cut-out	round
Diameter	22.6 cm
Height	7.8 cm
IP Code	IP20
Service life	30000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	TRAILING_EDGE
Variant Dimm options	Trailing edge
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
UGR ≤	28
LED can be changed	Exchange of lightsource only by professional
Product name	OCCULDAS 23
CCT Switch	No
DALI capable	No
Dimmable	Yes
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Recessed
Sildid	LED-Downlight
