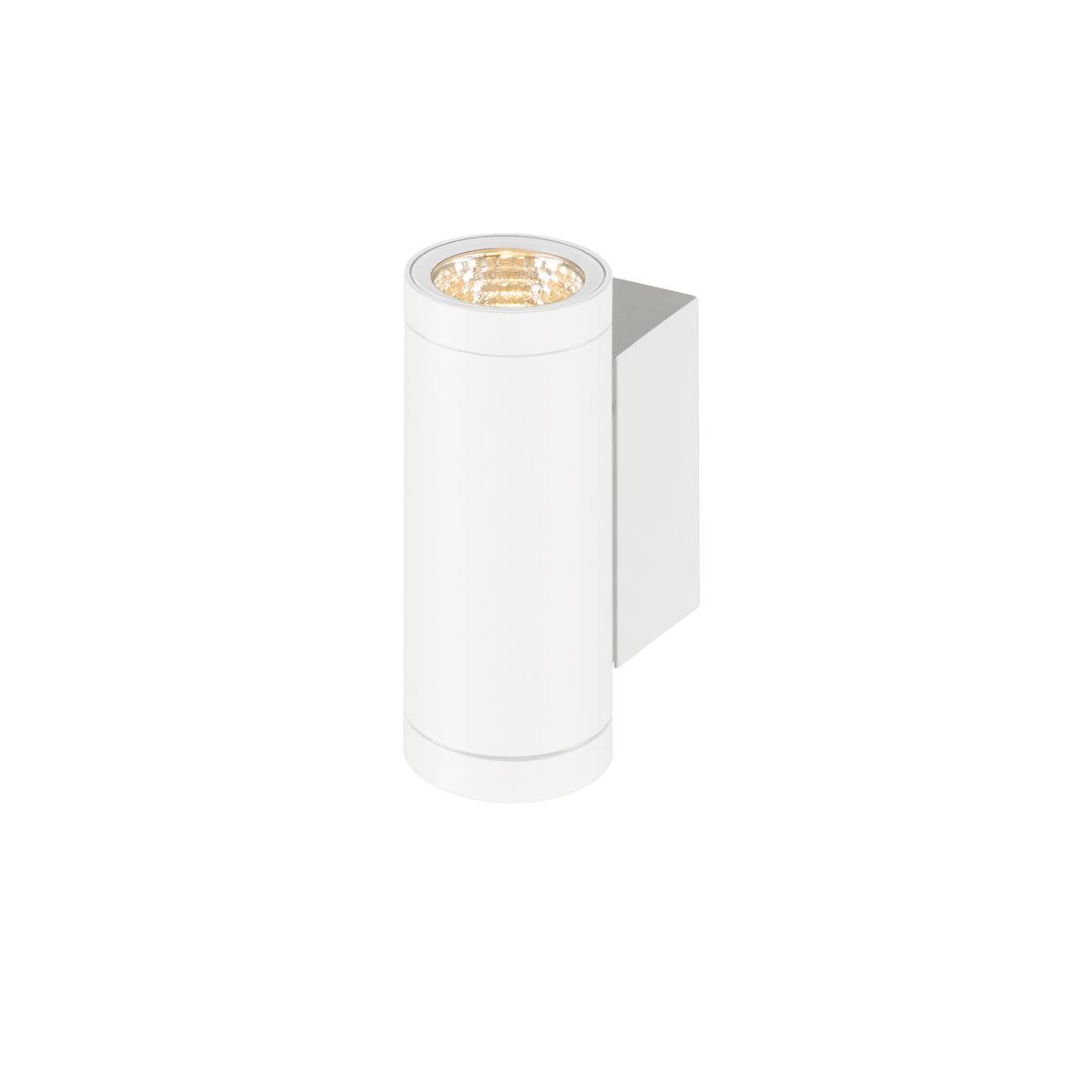

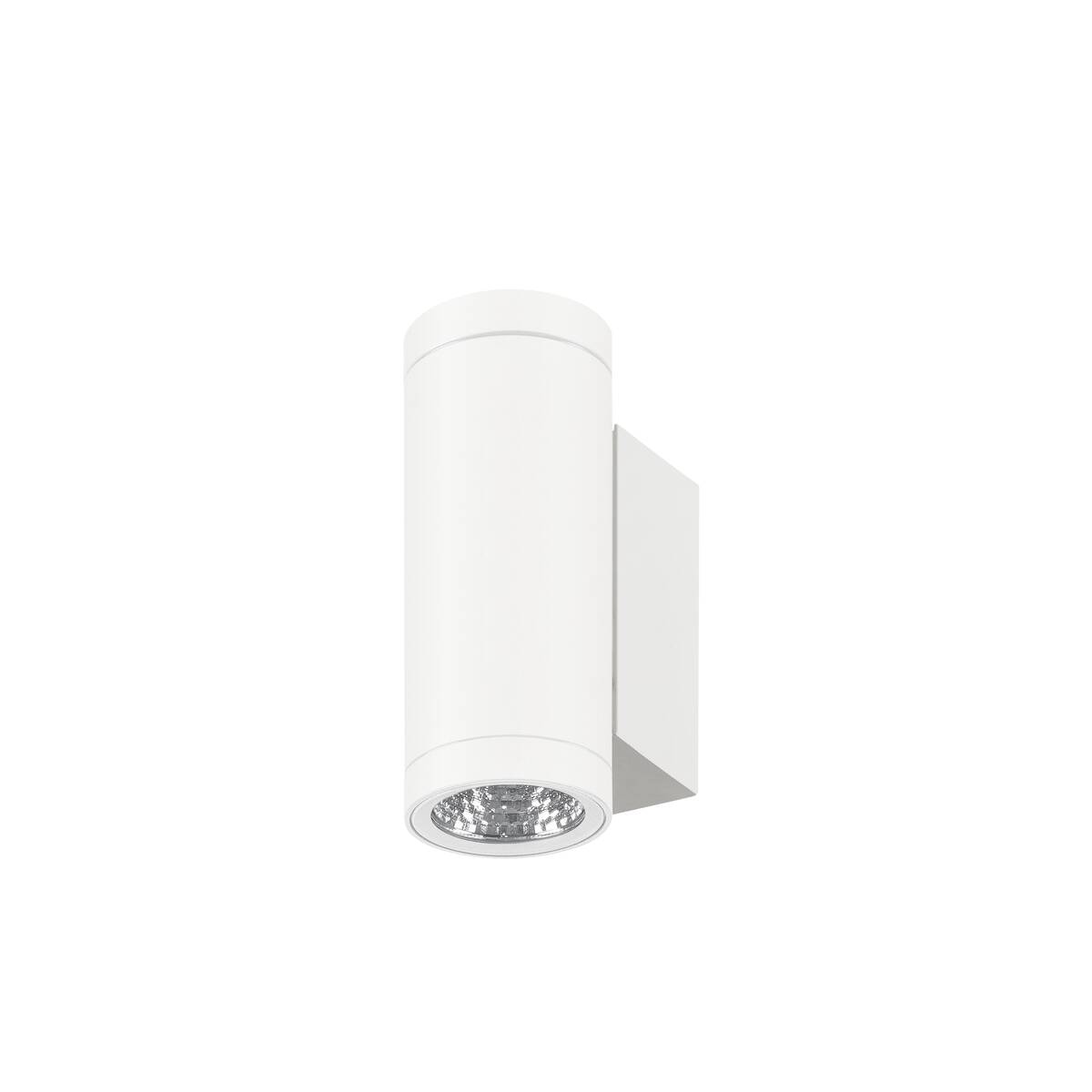

The HELIA PRO S is a cylindrical surface-mounted wall light designed for use in indoor and protected outdoor areas. It features DALI-2 dimming and delivers a luminous flux of 1200 lumens at 12 watts with a colour temperature of 2700 K and a beam angle of 24°. The luminaire is made of an aluminium housing and has a rectangular canopy. The light distribution can be conveniently adjusted using an interchangeable reflector with 10°; a film for asymmetrical light distribution is included in the scope of delivery. With a product depth of 10 cm, a diameter of 6.5 cm, and a height of 17.5 cm, the luminaire allows for a uniform façade design. It is rated IP65 and impact resistance IK06 for demanding application conditions. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	1200 lm
electrical power	12 W
CRI	80
Net weight	0.87 kg
Diameter	6.5 cm
Height	17.5 cm
Beam angle	24 °
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	300 mA
Light outlet version	Top
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	2
Number of through-wires	15
Seperate beams	Yes
TC point (°C)	80 °C
Ambient temperature	-25 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	HELIA PRO S
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
