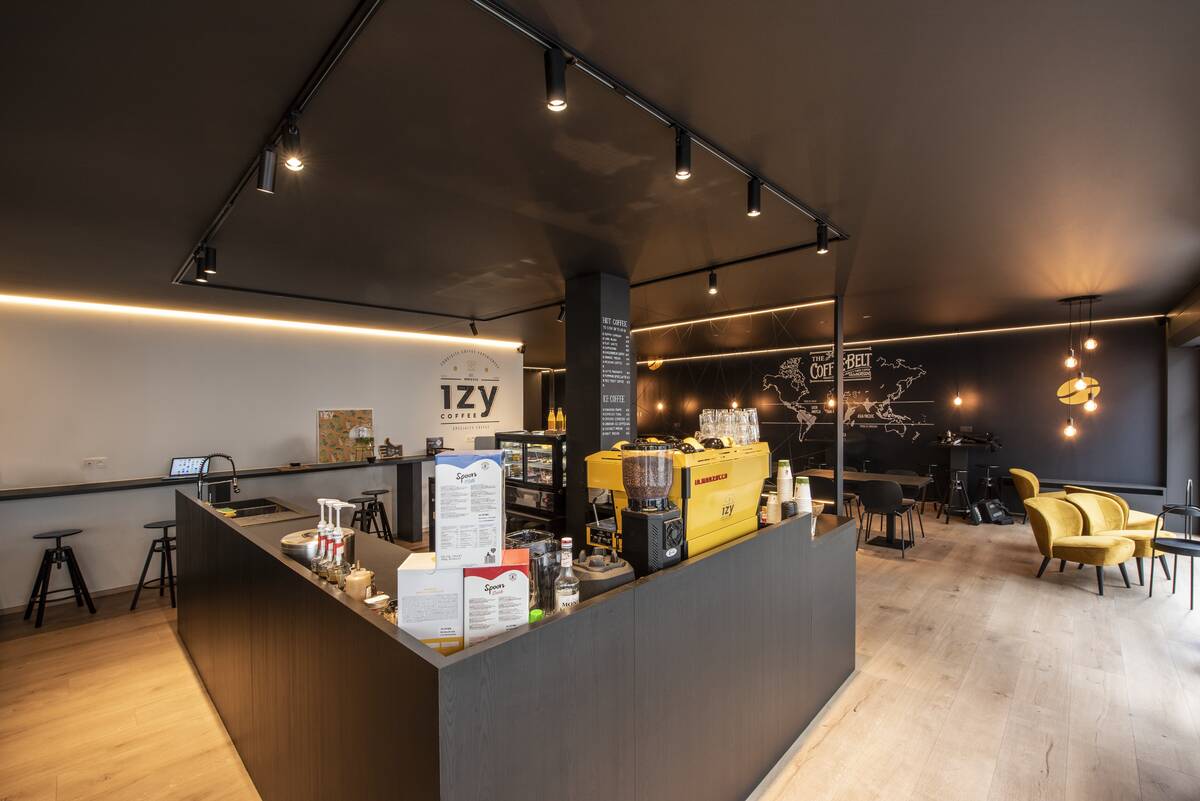

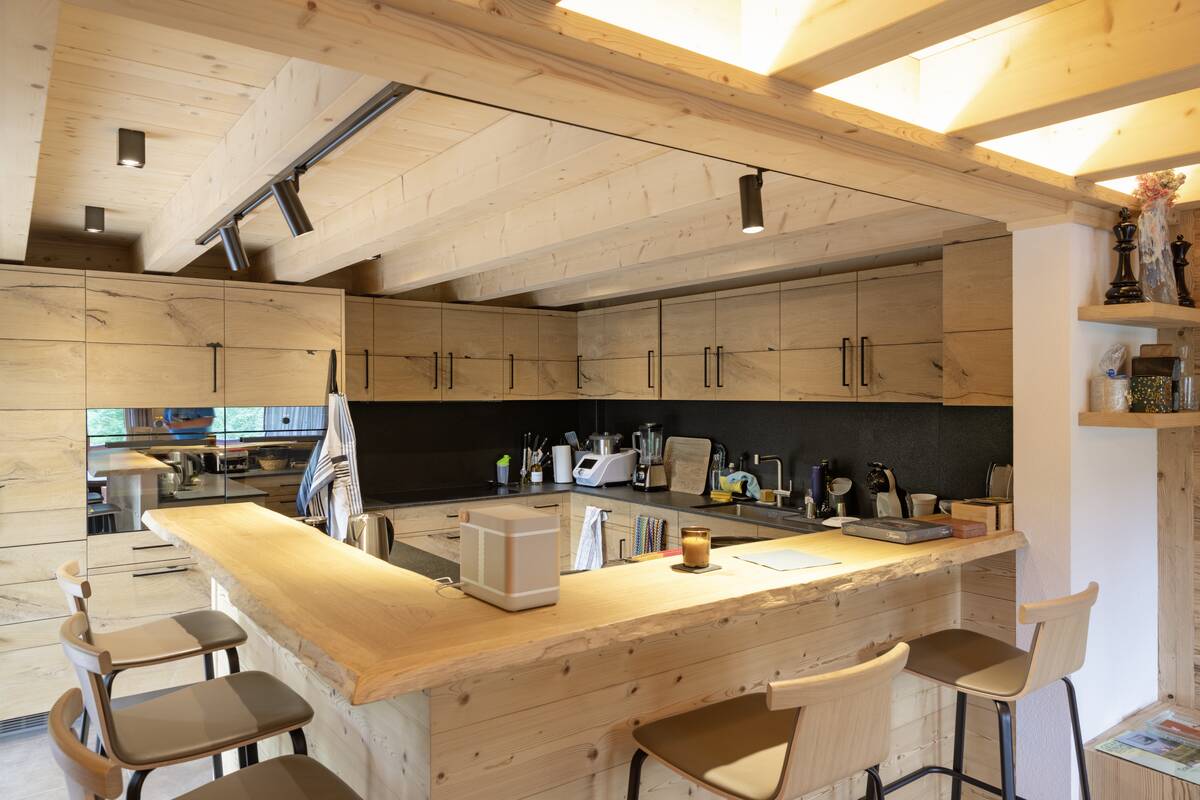

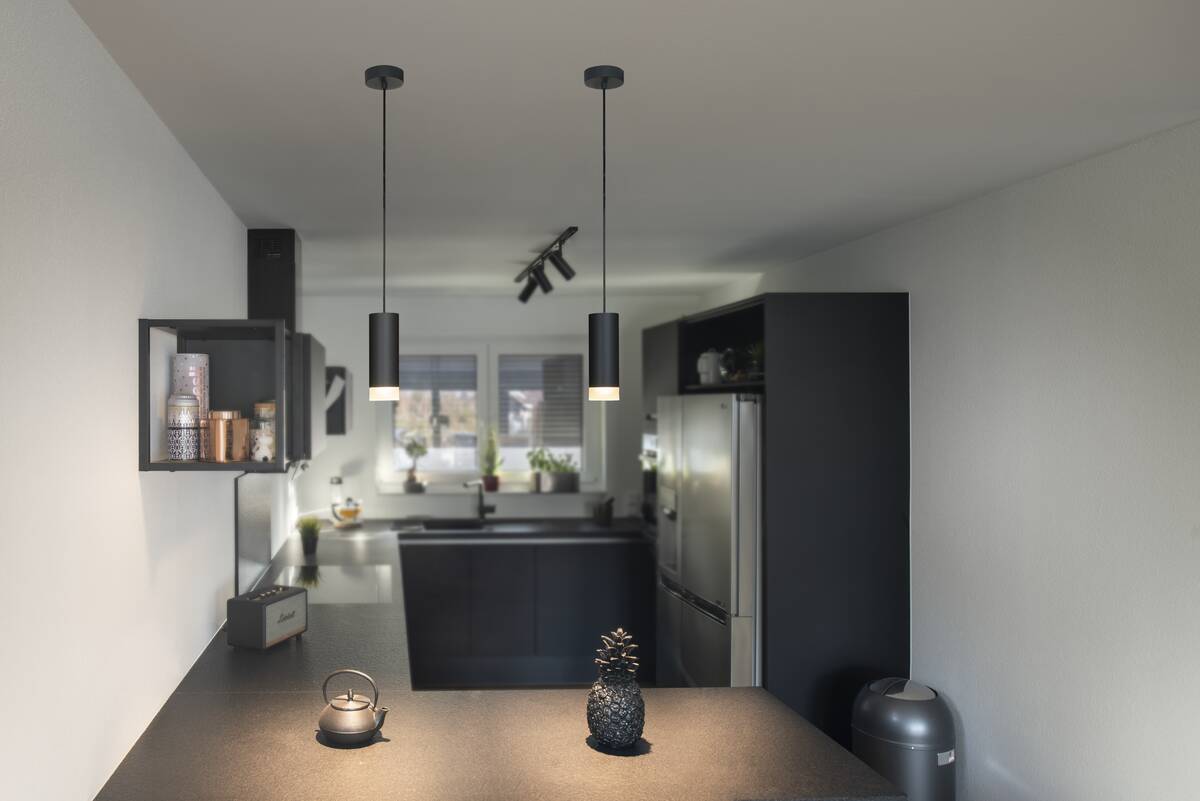

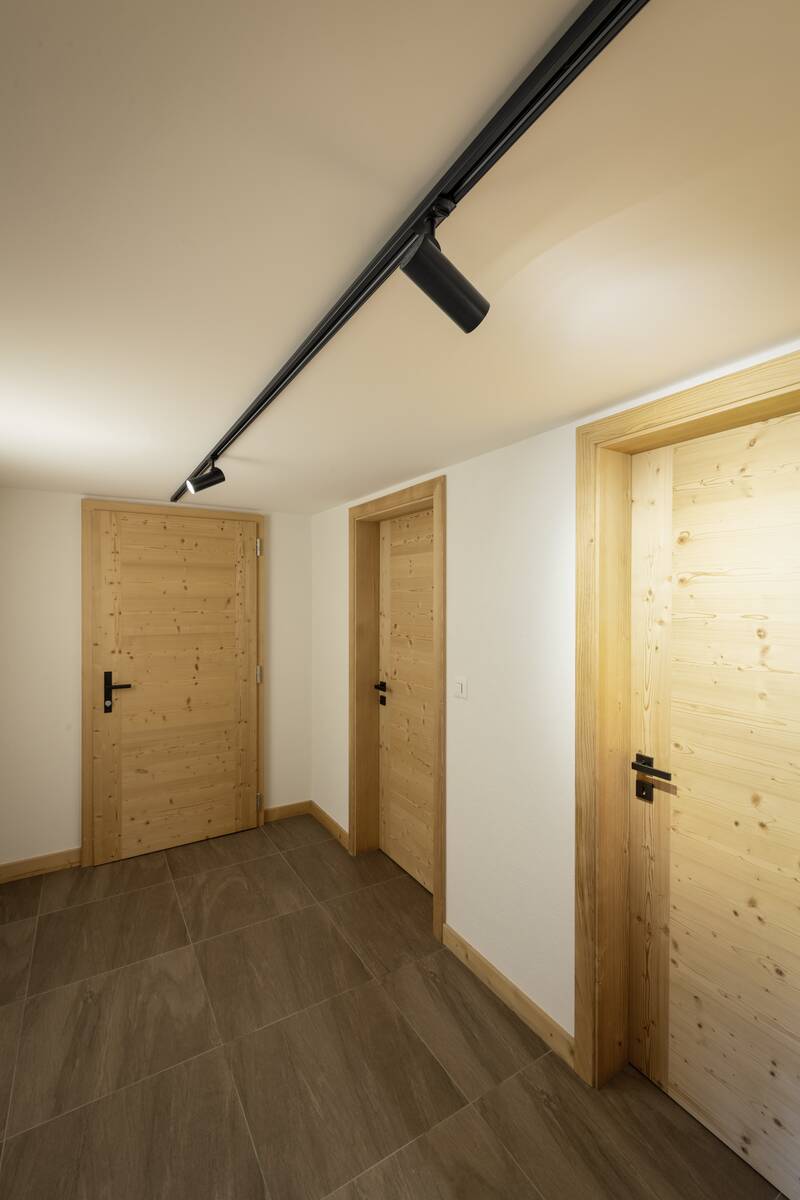

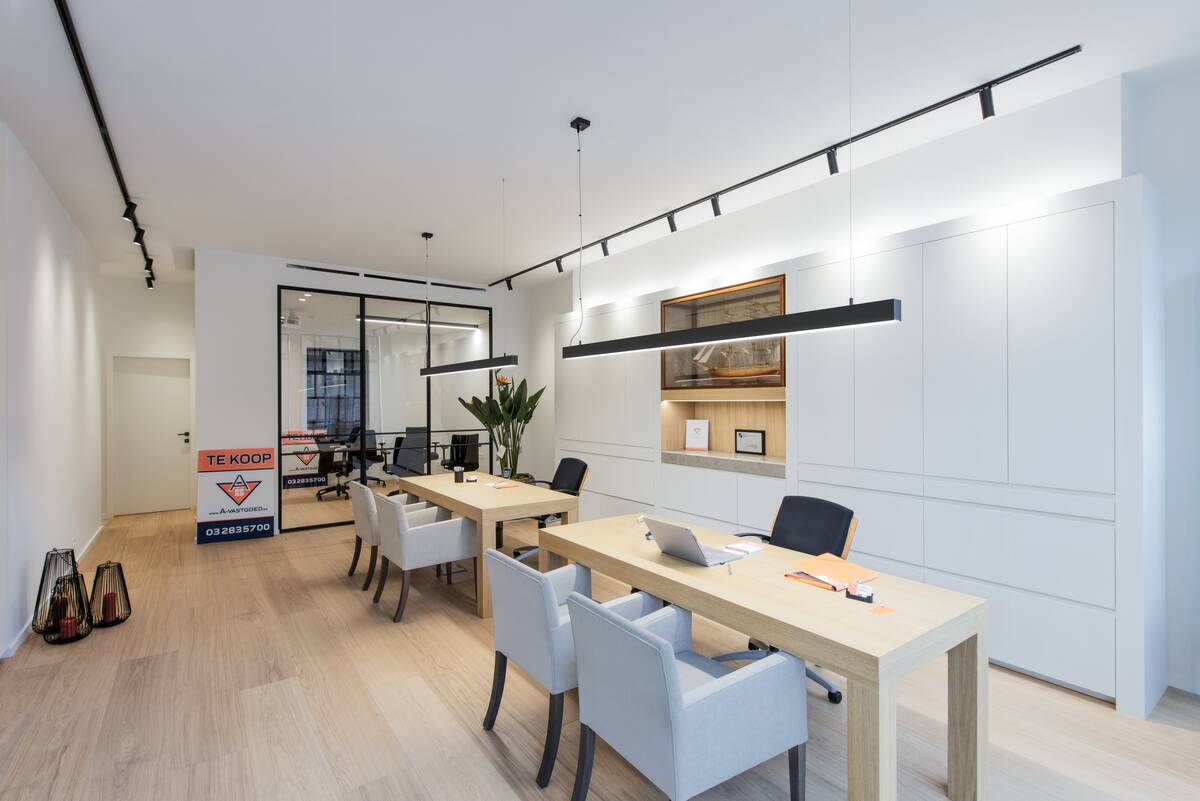

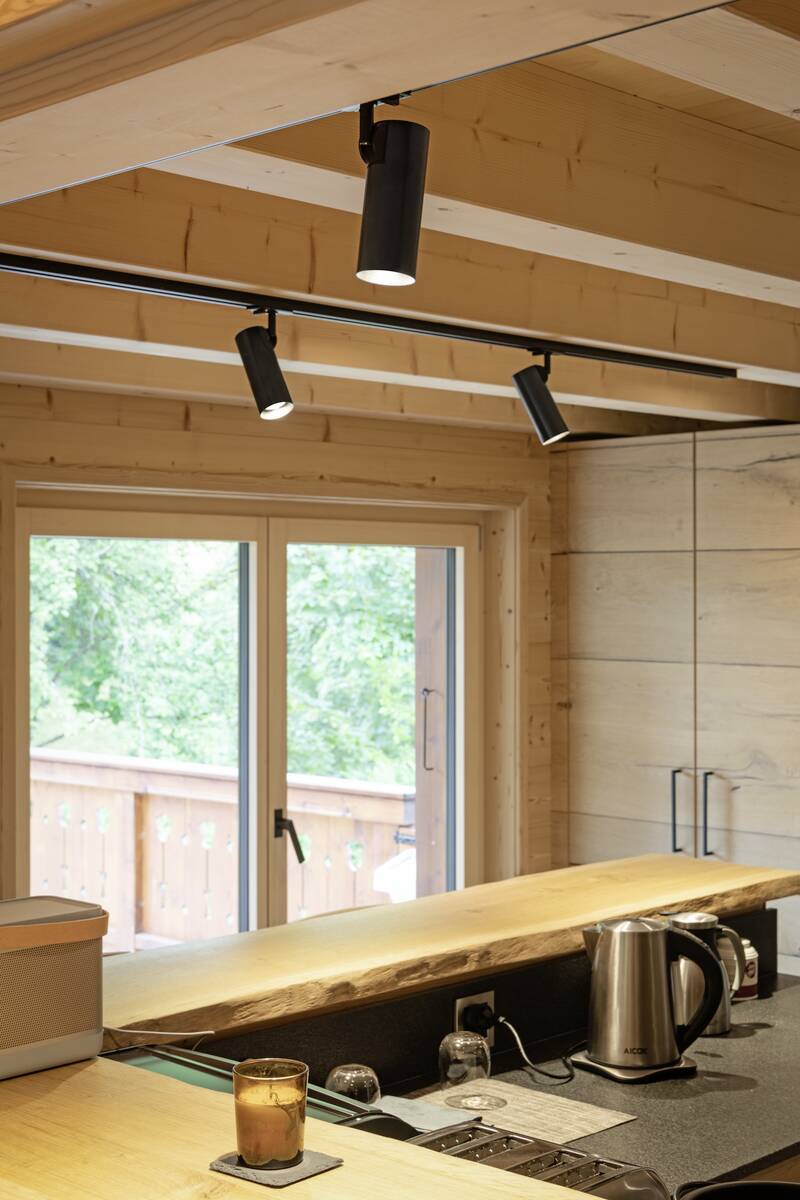

Adjustable LED spot HELIA 50 with suitable adapter for the 240V 1-circuit track system. The luminaire impresses with its slim design and is therefore ideal for modern lighting concepts. The luminaire is made from aluminium and equipped with a Premium LED module.

Tehnilised andmed

Half beam angle	35 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	920 lm
electrical power	11 W
CRI	90
Net weight	0.358 kg
Diameter	5.5 cm
Height	12 cm
Length	14 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Rotating or tilting	rotary bar and tiltable
Shape	round
Horizontal rotation range	330 °
Variant Dimm options	Trailing edge
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	HELIA 50 TRACK
CCT Switch	No
DALI capable	No
Dimmable	Yes
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	1-Phase-System, High voltage track systems, Indoor, LED, Track systems
Sildid	LED-Spotlight, Spotlight
