HELIA PRO S

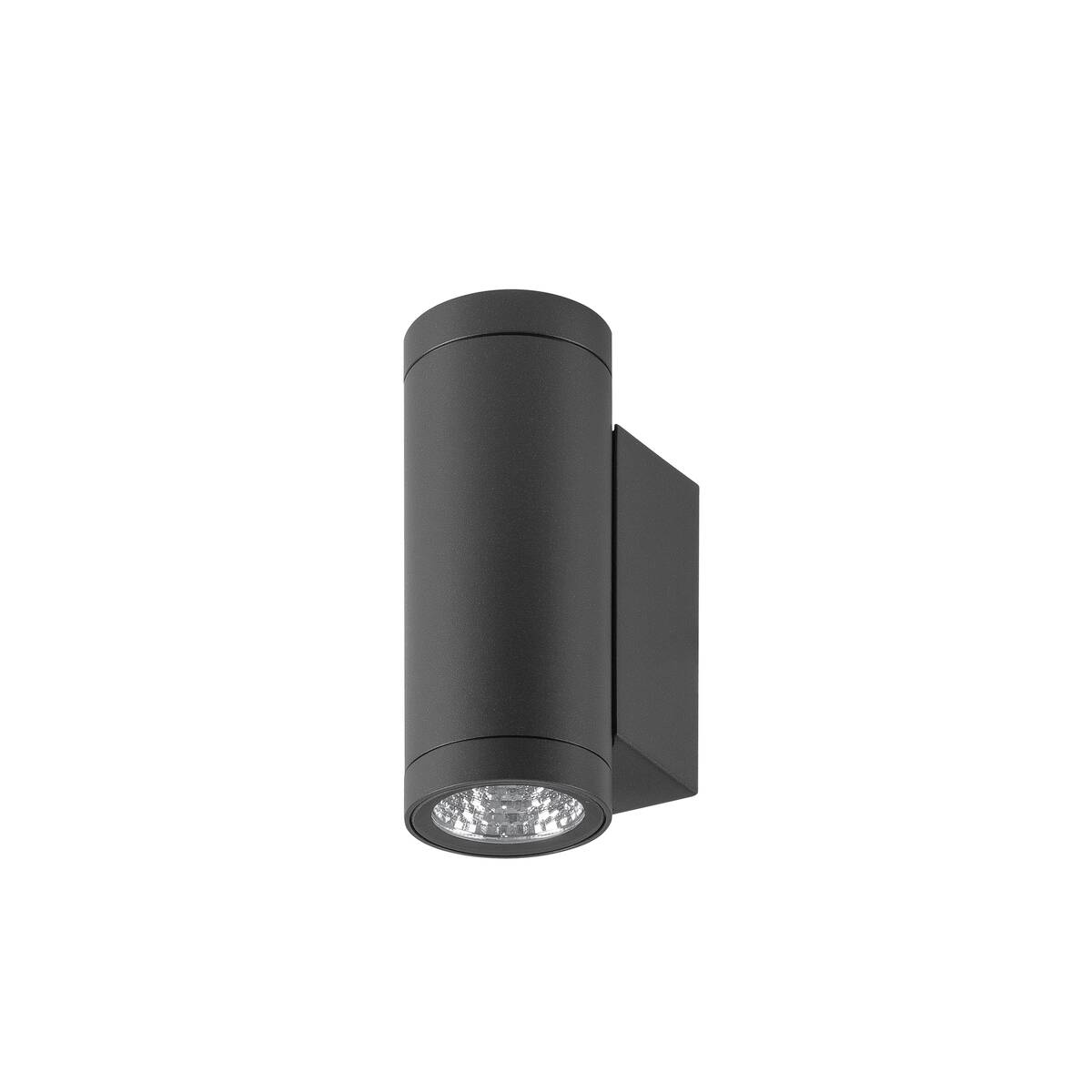

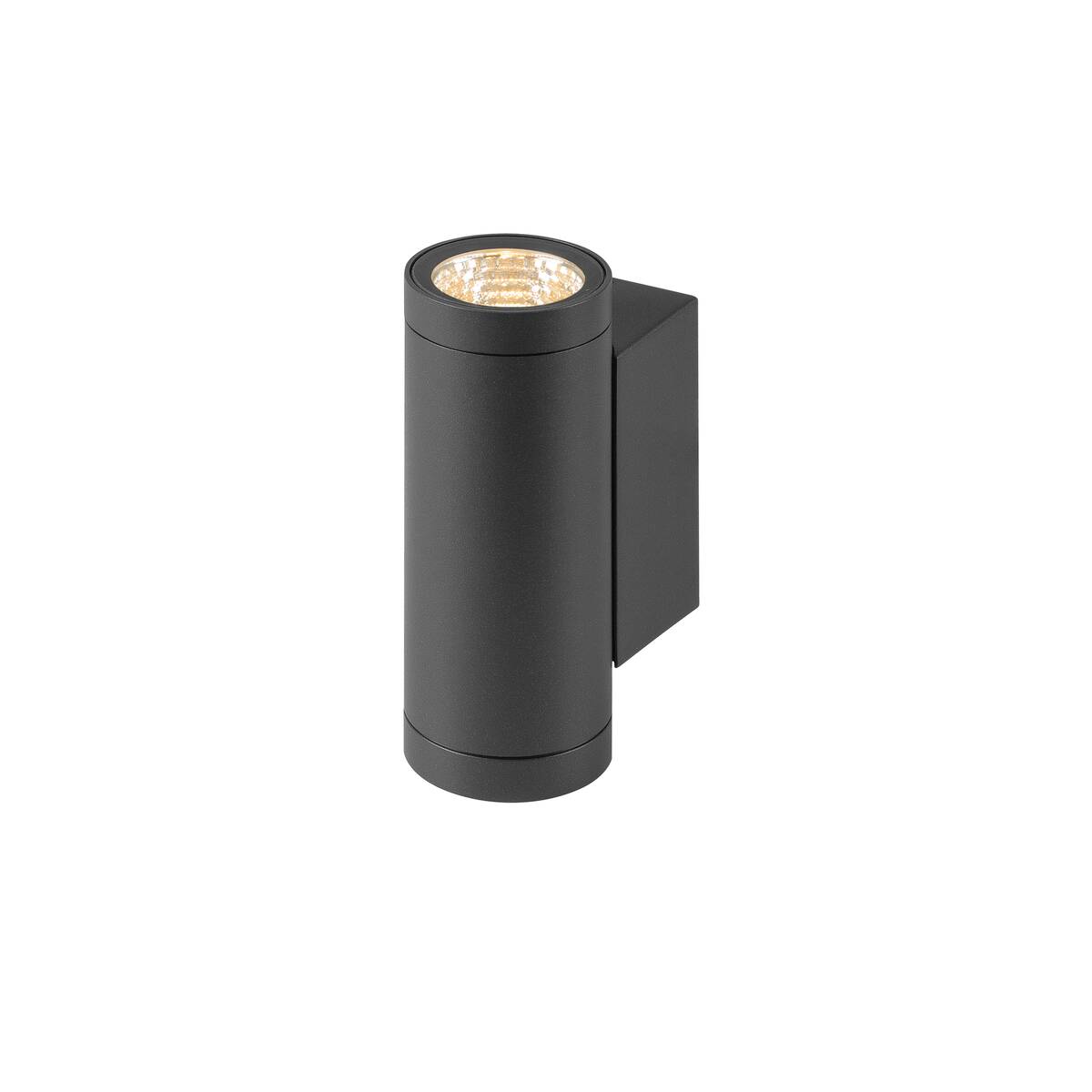

The HELIA PRO S is a cylindrical surface-mounted wall light suitable for indoor and outdoor use. It features a DALI 2 dimming function and offers a directional light distribution with a beam angle of 24°, as well as an interchangeable light distribution via a 10° exchangeable reflector. The luminaire is equipped with a 12-watt LED, providing a luminous flux of 1200 lumens at a colour temperature of 2700 K. The housing is made of aluminium and has an IP65 protection rating as well as an IK06 impact resistance class, making it resistant to dust, jet water, and mechanical impacts. The luminaire measures 17.5 cm in height, 6.5 cm in diameter, and 10 cm in depth. It is supplied with a film for asymmetrical light distribution and, due to its compact design and flexible light control, is suitable for a wide range of applications in commercial environments.

Tehnilised andmed

Half beam angle 24 °
Colour anthracite
Colour temperature 2700 Kelvin
Luminous Flux 1200 lm
electrical power 12 W
CRI 80
Net weight 0.87 kg
Diameter 6.5 cm
Height 17.5 cm
Beam angle 24 °
IP Code IP65
Service life 50000 h
Primary nominal voltage 220-240V ~ 50/60Hz
Secondary power / secondary voltage 300 mA
Light outlet version Top
Shape cylindrical
Glass temperature (light emission) 55 °C
Variant Dimm options DALI
Different light outlets 2
Number of through-wires 15
Seperate beams Yes
Ambient temperature -25 °C
Shock resistance category IK06
Shock resistance 1 joule
Material Aluminium
Product name HELIA PRO S
CCT Switch No
Dimmable Yes
Assembly Surface
Risk group 1
Tehnilised failid Manual
Datasheet
CE declaration
Assembly drawings
REACh
Kategooriad Outdoor, Wall lights
