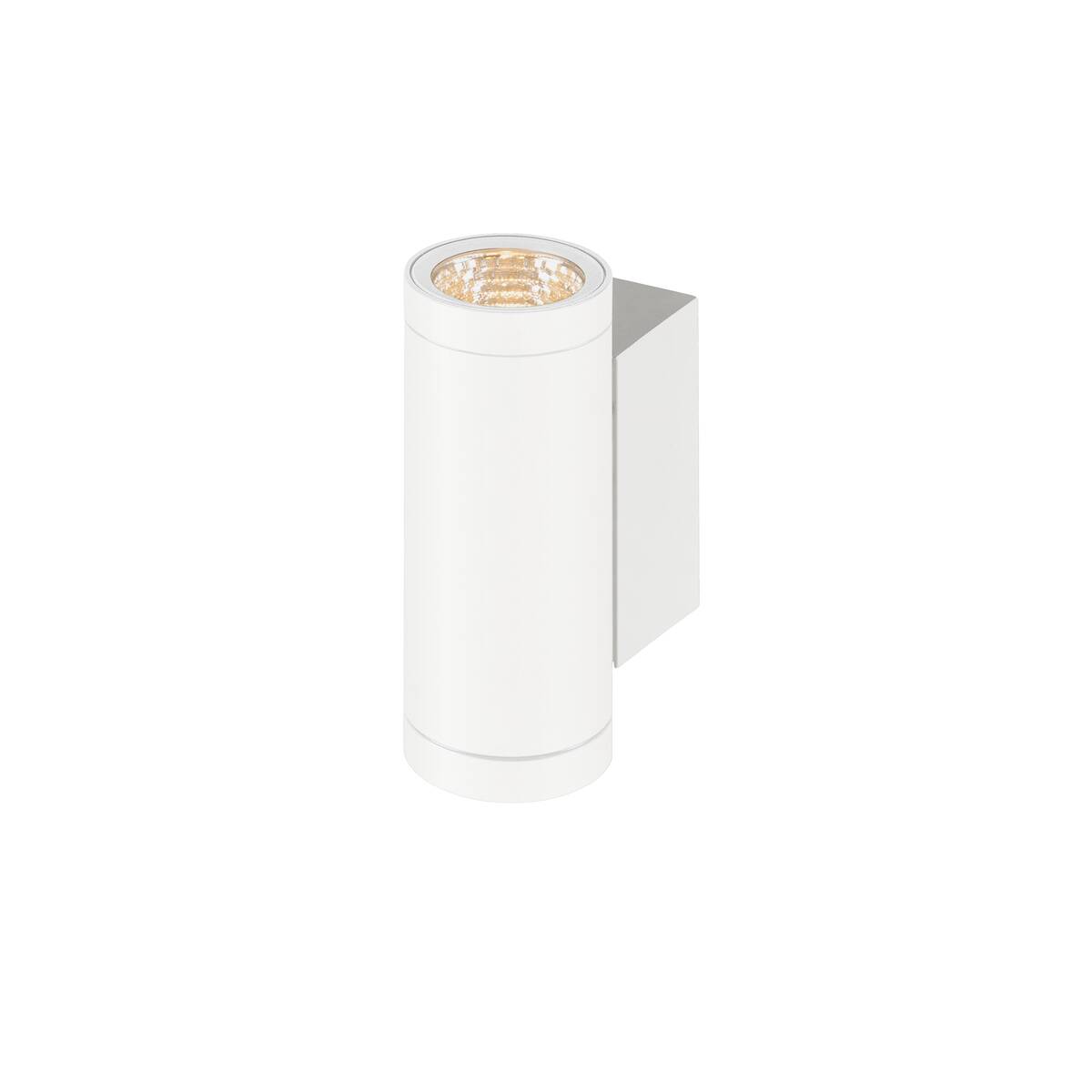

The HELIA PRO S is a cylindrical surface-mounted wall light featuring an Up/Down light distribution, suitable for use in indoor and sheltered outdoor areas. It is equipped with DALI 2 dimming and delivers a luminous flux of 600 lumens at a colour temperature of 2700 K. The luminaire has an aluminium housing and a rectangular canopy. The light distribution can be easily adjusted to 10° using an interchangeable reflector; additionally, a film for asymmetric light distribution is included. With a diameter of 6.5 cm, a height of 17.5 cm, and a product depth of 6.5 cm, the luminaire is compactly designed. The IP65 protection rating and IK06 impact resistance ensure a robust construction suitable for a variety of installation environments. The luminaire features a uniform façade design, as the Up and Up/Down variants within one version have the same luminous flux and dimensions.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	600 lm
electrical power	6 W
CRI	80
Net weight	0.87 kg
Diameter	6.5 cm
Height	17.5 cm
Beam angle	24 °
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	400 mA
Light outlet version	Top
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	2
Number of through-wires	15
Seperate beams	Yes
Ambient temperature	-25 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	HELIA PRO S
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
