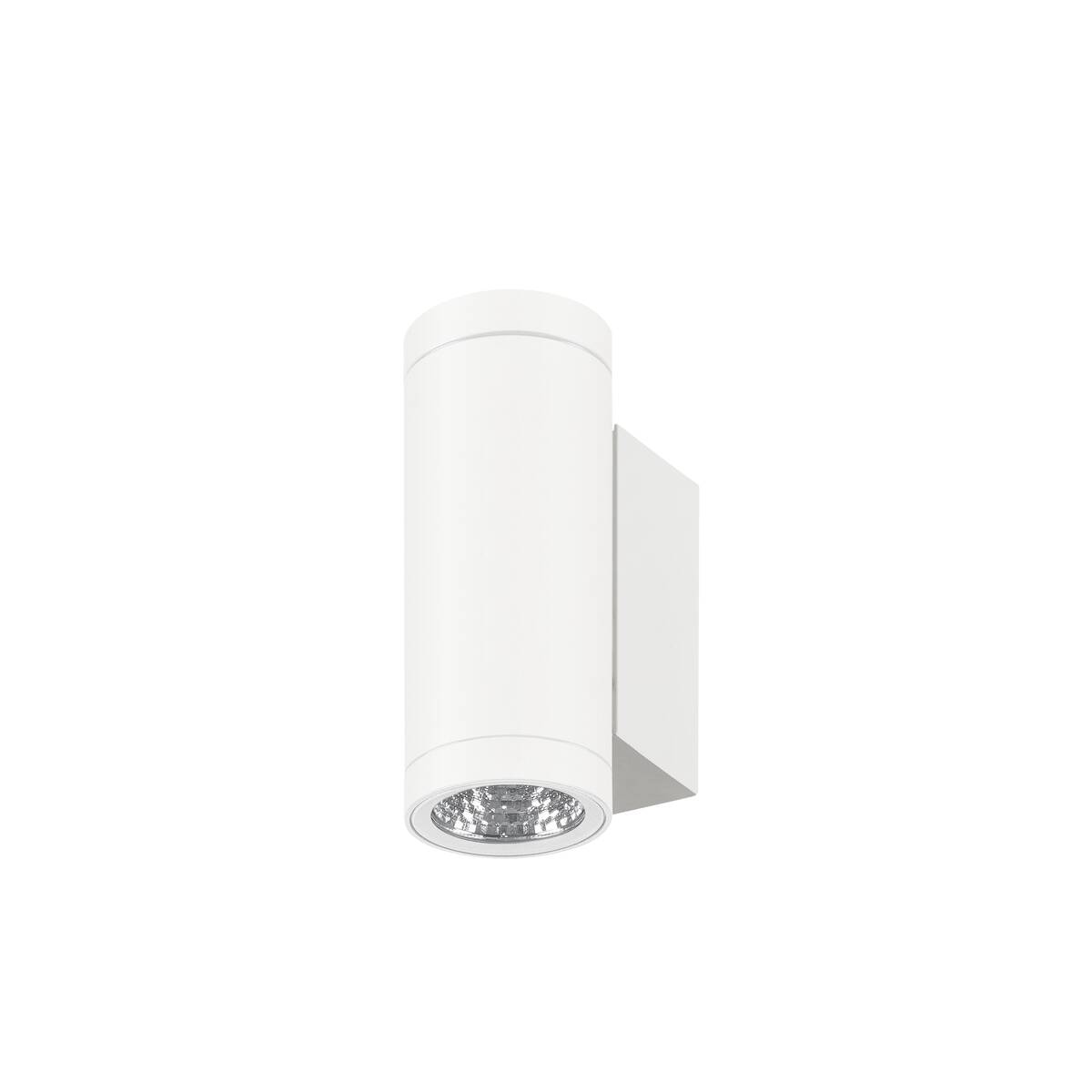

The HELIA PRO S is a cylindrical surface-mounted wall luminaire suitable for use in indoor and protected outdoor areas. It delivers a light output of 600 lumens with a colour temperature of 2700 K and a narrow beam angle of 24°. The luminaire features DALI-2 dimming, allowing flexible light control. The housing is made of aluminium and is rated IP65 for protection against dust and water ingress, as well as IK06 for impact resistance. It offers variable light distribution through an interchangeable reflector with a 10° beam angle and a film for asymmetrical light distribution. With a product depth of 10 cm, a diameter of 6.5 cm, and a height of 17.5 cm, it is compactly designed to enable uniform façade design. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	600 lm
electrical power	6 W
CRI	80
Net weight	0.77 kg
Diameter	6.5 cm
Height	17.5 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	150 mA
Light outlet version	Bottom
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	1
Number of through-wires	15
Seperate beams	Yes
Ambient temperature	-25 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	HELIA PRO S
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
