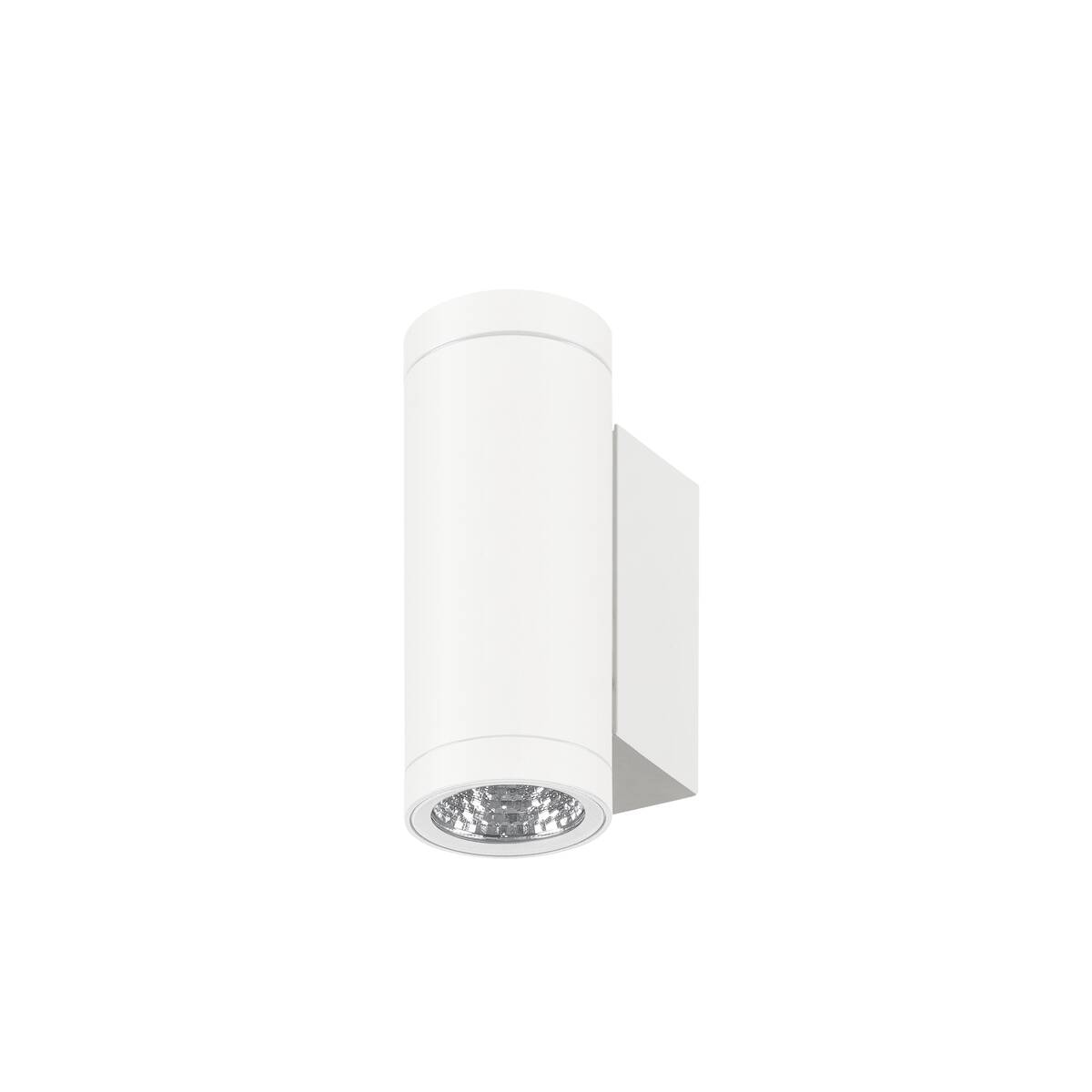

The HELIA PRO S is a cylindrical surface-mounted wall light suitable for use in indoor and protected outdoor areas. It features DALI-2 dimming for flexible light control and delivers a luminous output of 300 lumens at a colour temperature of 2700 K. The luminaire is equipped with an aluminium housing, measuring 10 cm in depth, 6.5 cm in diameter, and 17.5 cm in height. The light distribution can be easily adjusted using an interchangeable reflector with a beam angle of 10°; a film for asymmetrical light distribution is also included. The luminaire is rated IP65 for protection against dust and water ingress and has an impact resistance class of IK06. The design of the fitting is uniform, allowing optimal integration into various lighting concepts.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	300 lm
electrical power	3 W
CRI	80
Net weight	0.77 kg
Diameter	6.5 cm
Height	17.5 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Light outlet version	Bottom
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	1
Number of through-wires	15
Seperate beams	Yes
TC point (°C)	80 °C
Ambient temperature	-25 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	HELIA PRO S
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
