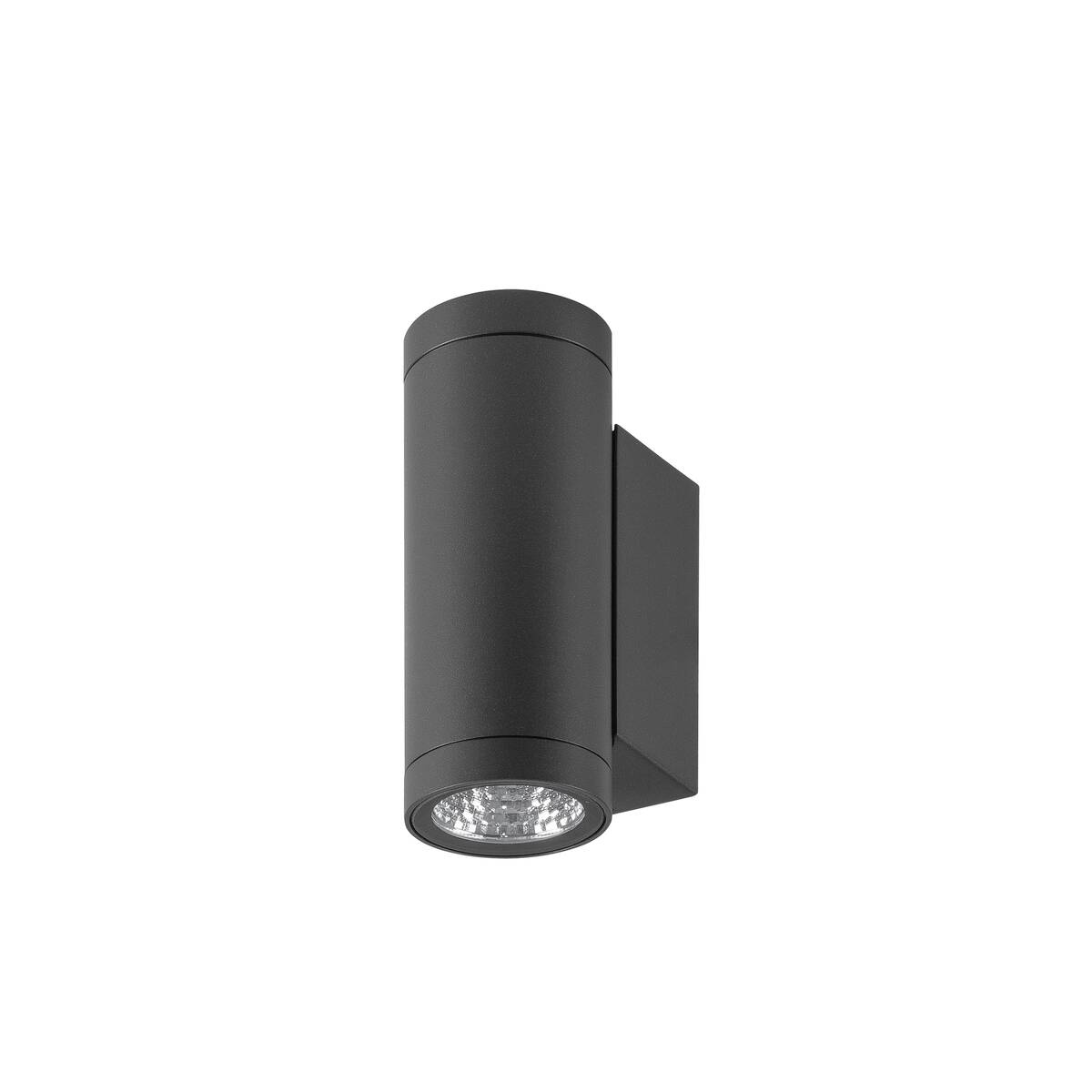

The HELIA PRO S is a cylindrical surface-mounted wall light suitable for indoor and outdoor applications where targeted lighting is required. It delivers a luminous flux of 300 lumens at a colour temperature of 2700 K with a beam angle of 24°. The luminaire is dimmable via DALI 2 and offers flexible light distribution through an interchangeable 10° reflector as well as asymmetric light distribution using the supplied film. The housing is made of aluminium and features a rectangular canopy. With an IP65 rating and IK06 impact resistance, the luminaire is protected against dust, jet water, and mechanical influences. Its compact dimensions of 17.5 cm height, 6.5 cm diameter, and 10 cm depth facilitate installation and integration into various environments. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	anthracite
Colour temperature	2700 Kelvin
Luminous Flux	300 lm
electrical power	3 W
CRI	80
Net weight	0.77 kg
Diameter	6.5 cm
Height	17.5 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Light outlet version	Bottom
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	1
Number of through-wires	15
Seperate beams	Yes
Ambient temperature	-25 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	HELIA PRO S
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
