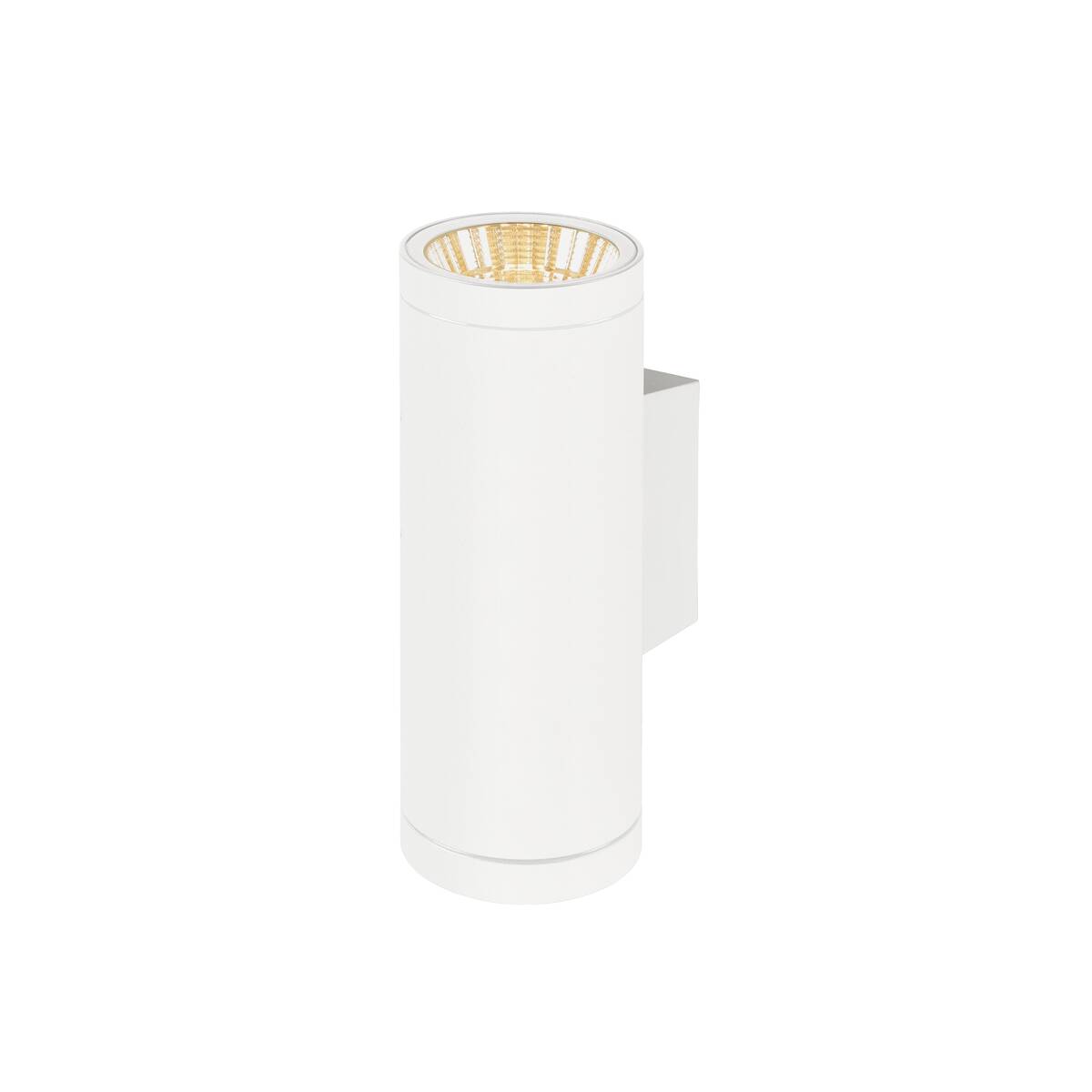

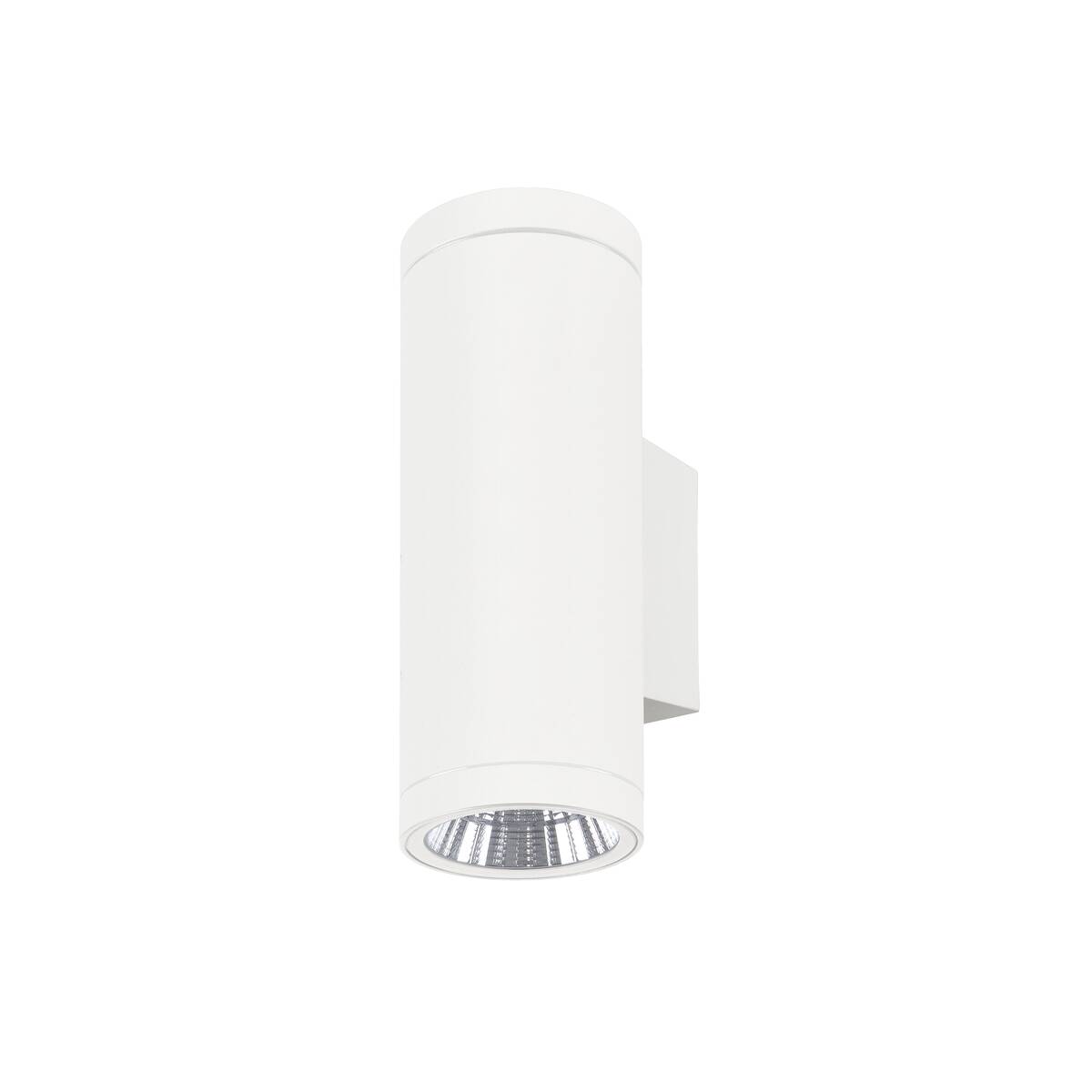

The HELIA PRO L is a surface-mounted wall luminaire with up/down light distribution, particularly suitable for use in indoor and covered outdoor areas. It features DALI-2 dimming and delivers a luminous flux of 2400 lumens at 20 watts with a colour temperature of 2700 Kelvin. The cylindrical aluminium housing measures 30.5 cm in height and 10.8 cm in diameter, and the luminaire is equipped with a rectangular canopy. The light distribution can be conveniently adjusted to 10° using an interchangeable reflector, and an asymmetrical light distribution film is also included. The luminaire offers an IP65 protection rating and IK08 impact resistance, making it robust against environmental influences and mechanical stresses. Uniform dimensions and luminous fluxes within the product version enable optimal façade design.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	2400 lm
electrical power	20 W
CRI	80
Net weight	1.91 kg
Diameter	10.8 cm
Height	30.5 cm
Beam angle	24 °
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Light outlet version	Top
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	2
Number of through-wires	40
Seperate beams	Yes
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminium
Product name	HELIA PRO L
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
