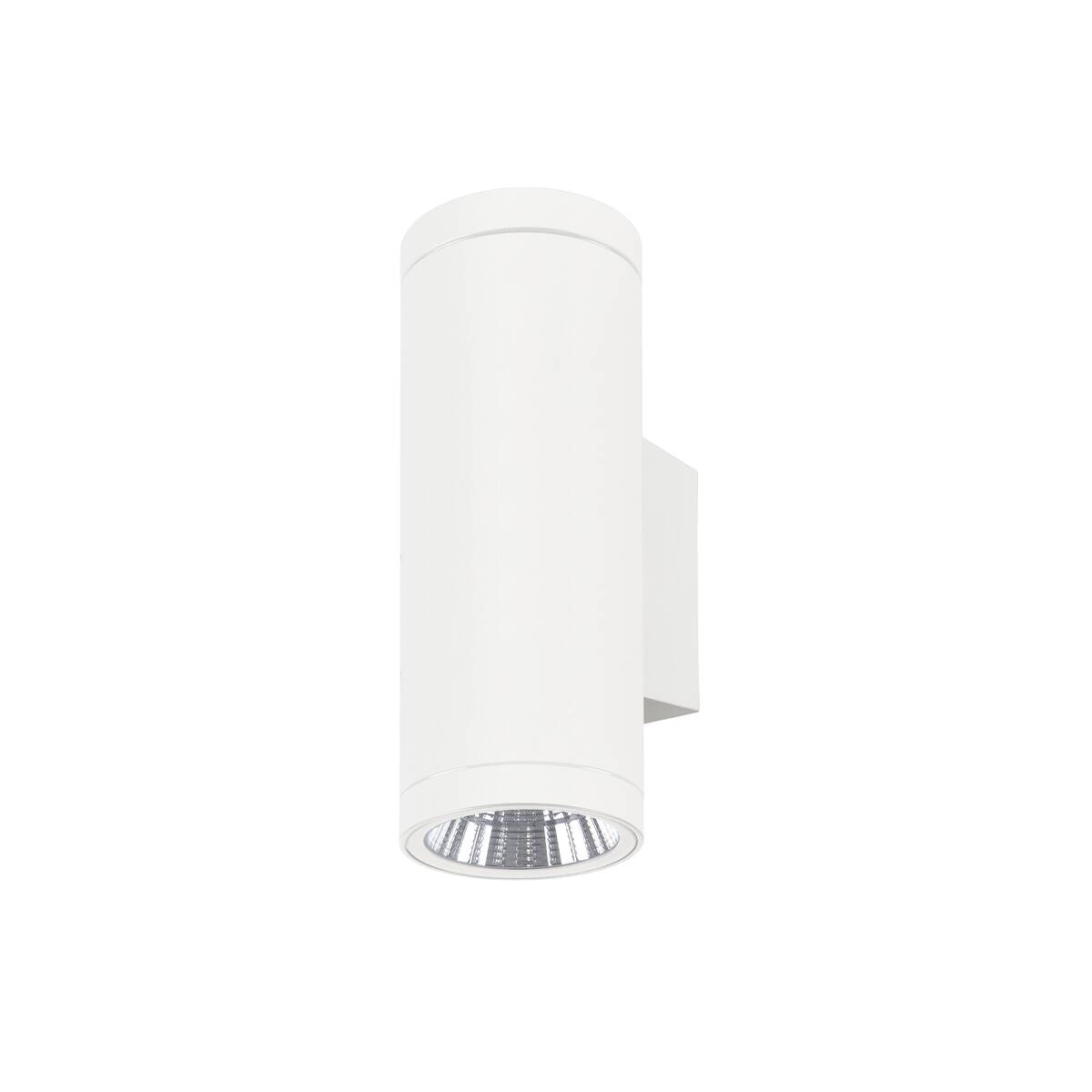

The HELIA PRO L is a cylindrical surface-mounted wall light suitable for use in indoor and outdoor areas where a robust and precise lighting solution is required. It features DALI-2 dimming and delivers a luminous flux of 1800 lumens at a power consumption of 15 watts with a warm white colour temperature of 2700 K. The luminaire is equipped with an interchangeable reflector for an adjustable beam angle of 10° and includes a film for asymmetrical light distribution. The housing is made of aluminium, the IP65 rating ensures protection against dust and jet water, and the impact resistance corresponds to IK08. With a height of 30.5 cm, a diameter of 10.8 cm, and a depth of 15.5 cm, the luminaire is compactly designed, allowing for a uniform façade design. The declared lifespan is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	1800 lm
electrical power	15 W
CRI	80
Net weight	1.62 kg
Diameter	10.8 cm
Height	30.5 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	380 mA
Light outlet version	Bottom
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	1
Number of through-wires	15
Seperate beams	Yes
TC point (°C)	80 °C
Ambient temperature	-25 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminium
Product name	HELIA PRO L
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
