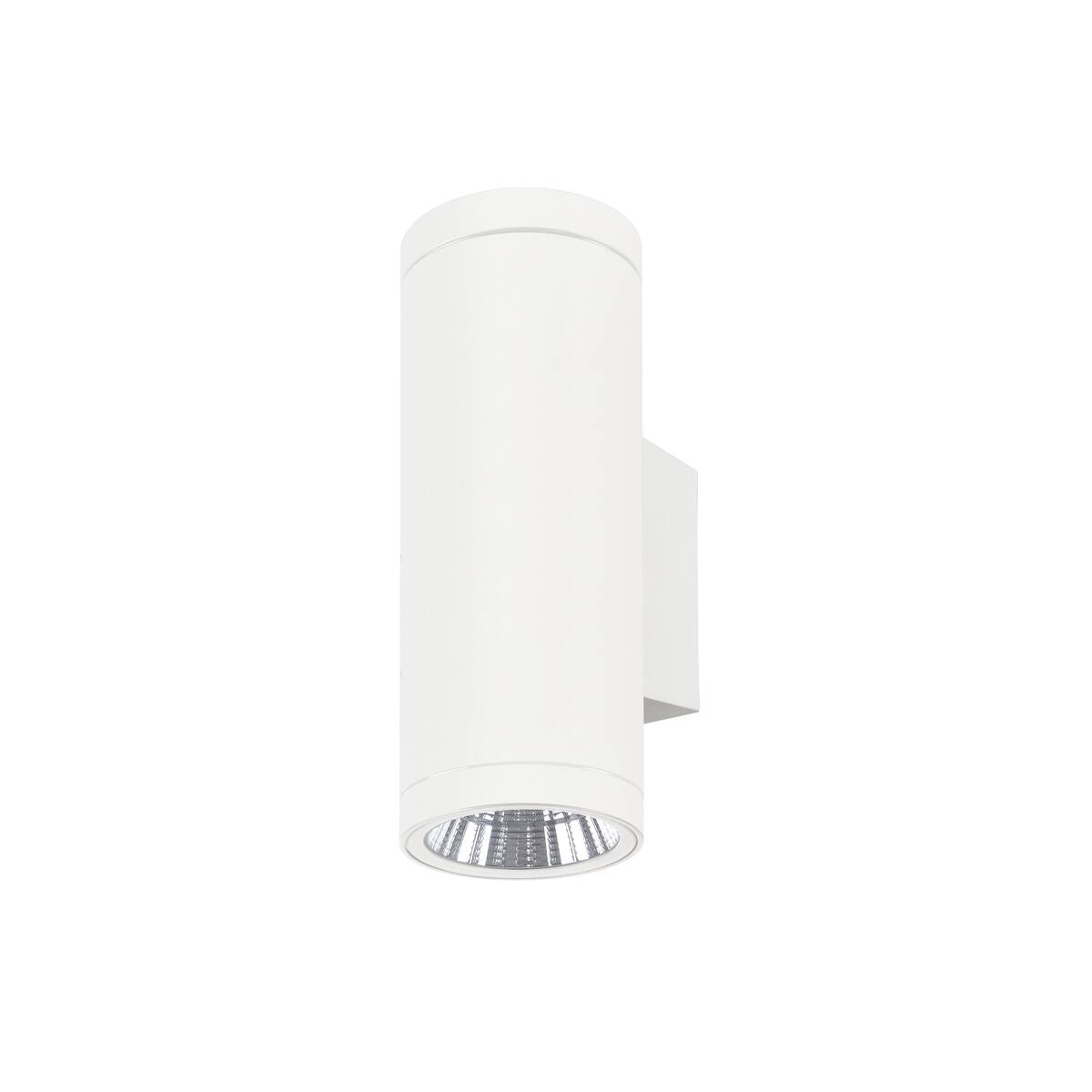

The HELIA PRO L is a cylindrical surface-mounted wall luminaire suitable for use in indoor and outdoor areas where targeted lighting is required. It features DALI-2 dimming for flexible light control and delivers a luminous flux of 1200 lumens at 10 watts with a colour temperature of 2700 K. The light distribution can be adjusted using an interchangeable reflector with a 10° beam angle as well as a film for asymmetrical light distribution. The housing is made of aluminium and is designed for demanding environments with an IP65 protection rating and IK08 impact resistance. With a product depth of 15.5 cm, a diameter of 10.8 cm, and a height of 30.5 cm, the luminaire offers a compact design. The uniform dimensions and luminous fluxes enable optimal façade design.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	1200 lm
electrical power	10 W
CRI	80
Net weight	1.62 kg
Diameter	10.8 cm
Height	30.5 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	250 mA
Light outlet version	Bottom
Shape	cylindrical
Glass temperature (light emission)	55 °C
Variant Dimm options	DALI
Different light outlets	1
Number of through-wires	15
Seperate beams	Yes
Ambient temperature	-25 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Aluminium
Product name	HELIA PRO L
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
