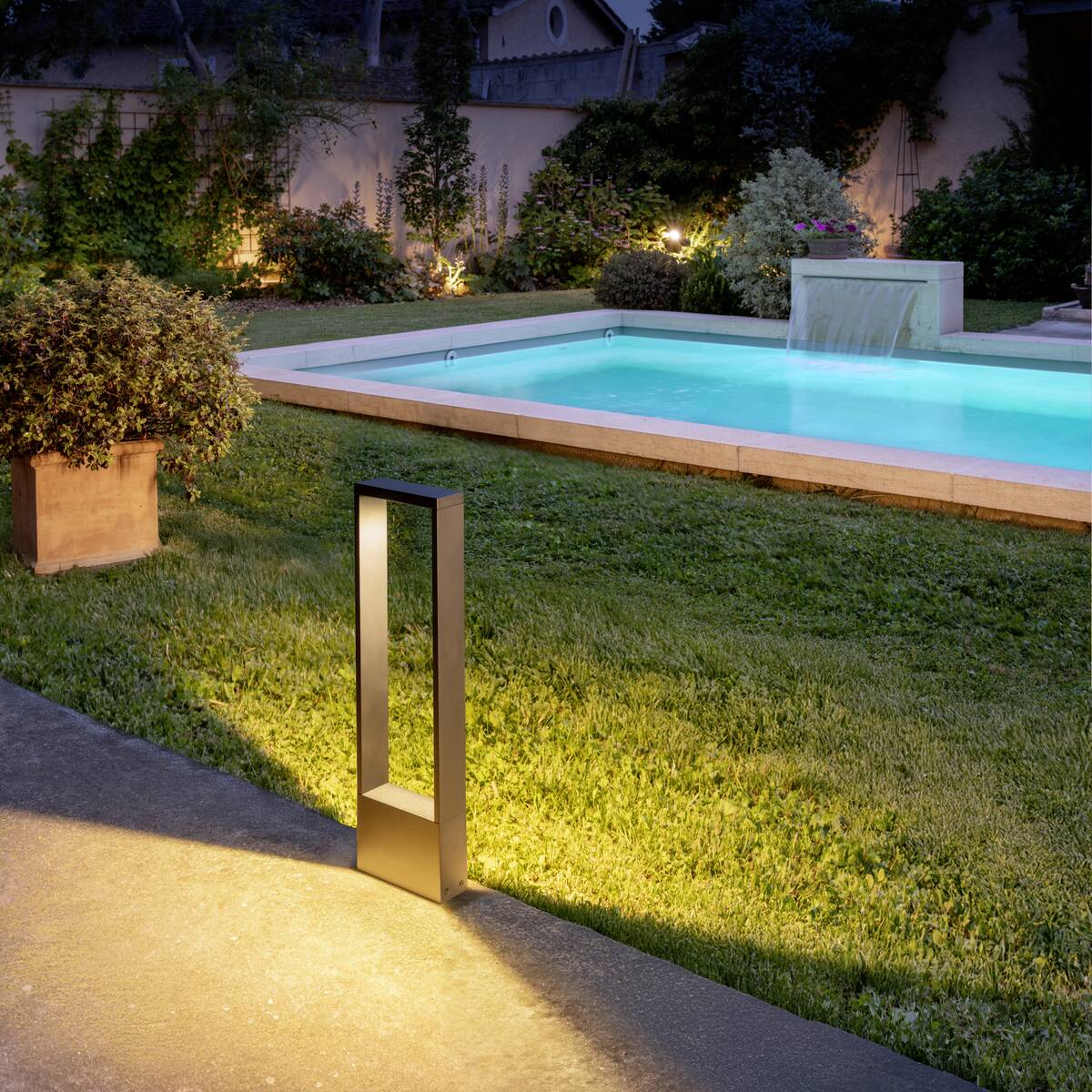

The FLATT II 62 is a floor lamp suitable for use in indoor and protected outdoor areas, as it features an IP65 rating. The luminaire has a square shape and a robust, durable aluminium housing. With a height of 62 centimetres and a compact base measuring 6 x 18 centimetres, it is space-saving and flexible in its application. The light source delivers a brightness of 650 lumens at a colour temperature of 2700 Kelvin, producing warm white light. Dimming is achieved via PHASE cut-on and cut-off technology, allowing flexible light control. The floor lamp is rated IK03 for impact resistance, providing a certain level of protection against mechanical influences.

Tehnilised andmed

Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	650 lm
electrical power	10 W
CRI	80
Net weight	2.11 kg
Height	62 cm
Length	18 cm
Width	6 cm
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	240 mA
Shape	square
Glass temperature (light emission)	75 °C
Variant Dimm options	leading edge and trailing edge dimmable
Plug type light	open cable end
Different light outlets	1
Number of through-wires	200
Seperate beams	Yes
Ambient temperature	-25 °C
Berker 2873 Result	Not compatible
Shock resistance category	IK03
Shock resistance	0.35 joule
Material	Aluminium
Product name	FLATT II 62
CCT Switch	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Floor stand, Outdoor
