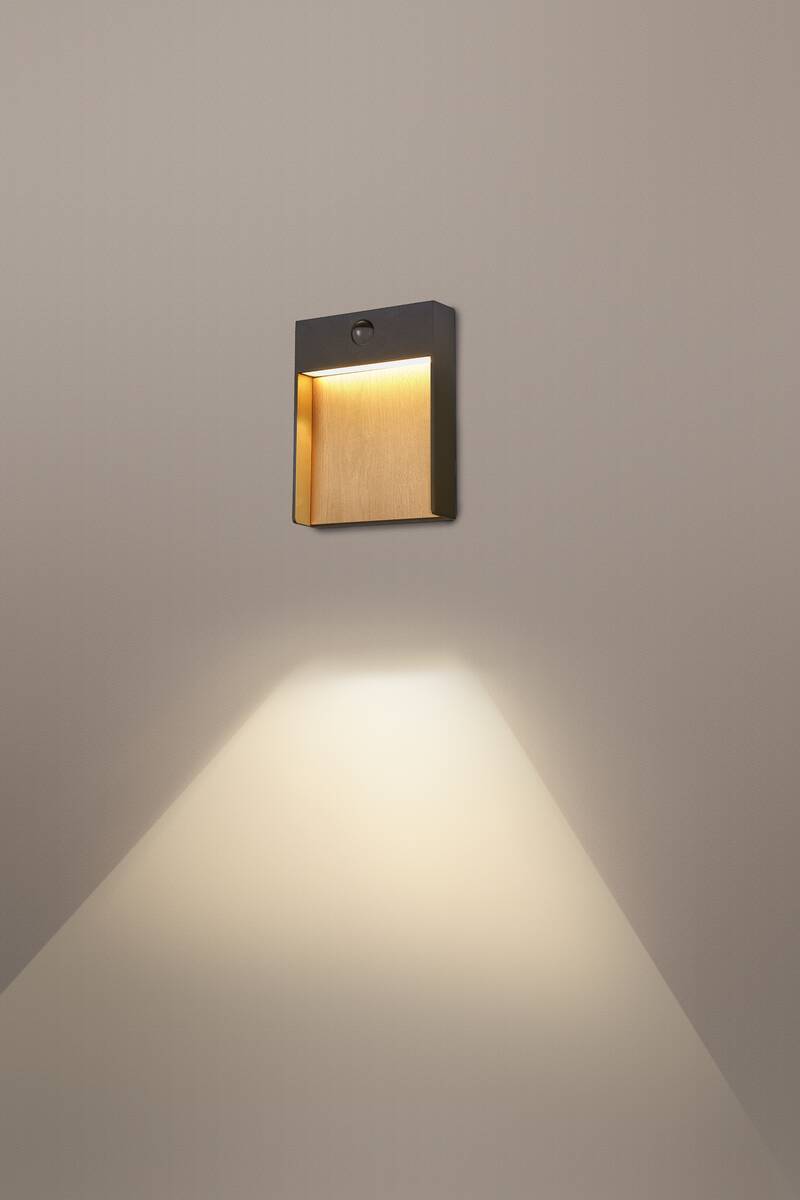

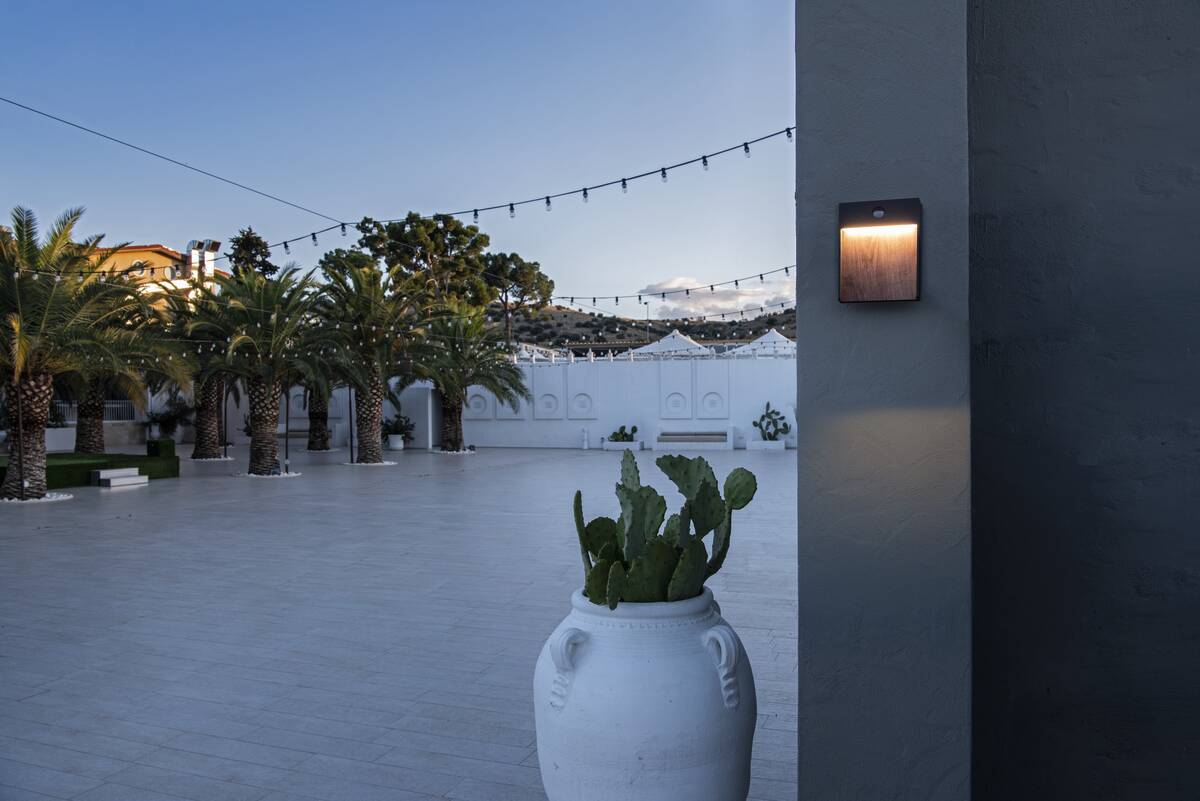

The FLATT SENSOR is an outdoor LED surface-mounted wall light suitable for installation on exterior walls. It features a PIR motion sensor with an adjustable detection range of 6 to 9 metres, an adjustable brightness threshold from 15 to 2000 lux, and an adjustable hold time from 5 seconds to 10 minutes. The luminaire provides a colour temperature of 3000 K and a luminous flux of 500 to 550 lumens. The housing is made of aluminium and measures 23 cm in height, 18 cm in width, and 8 cm in depth. The luminaire has an IP54 protection rating and an impact resistance class of IK03, making it resistant to dust, splashing water, and mechanical impacts. The FLATT SENSOR is designed for outdoor use and is particularly suitable for illuminating façades and entrance areas.

Tehnilised andmed

Colour	anthracite/anthracite
Variant Color 2	anthracite
Colour temperature	4000 Kelvin
Luminous Flux	550 lm
electrical power	13 W
CRI	80
Net weight	2.048 kg
Height	23 cm
Width	18 cm
IP Code	IP54
Service life	50000 h
Luminous flux	500 / 550 lm
Primary nominal voltage	100-240V ~ 50/60Hz
Secondary power / secondary voltage	300 mA
Ambient temperature	-25 °C
Shock resistance category	IK03
Shock resistance	0.35 joule
Material	Aluminium
LED can be changed	LED lightbulb not replaceable
Product name	FLATT SENSOR
CCT Switch	Yes
DALI capable	No
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	LED, Outdoor, Surface mounted , Wall lights
Sildid	Motion Sensor luminaire
