WL 149

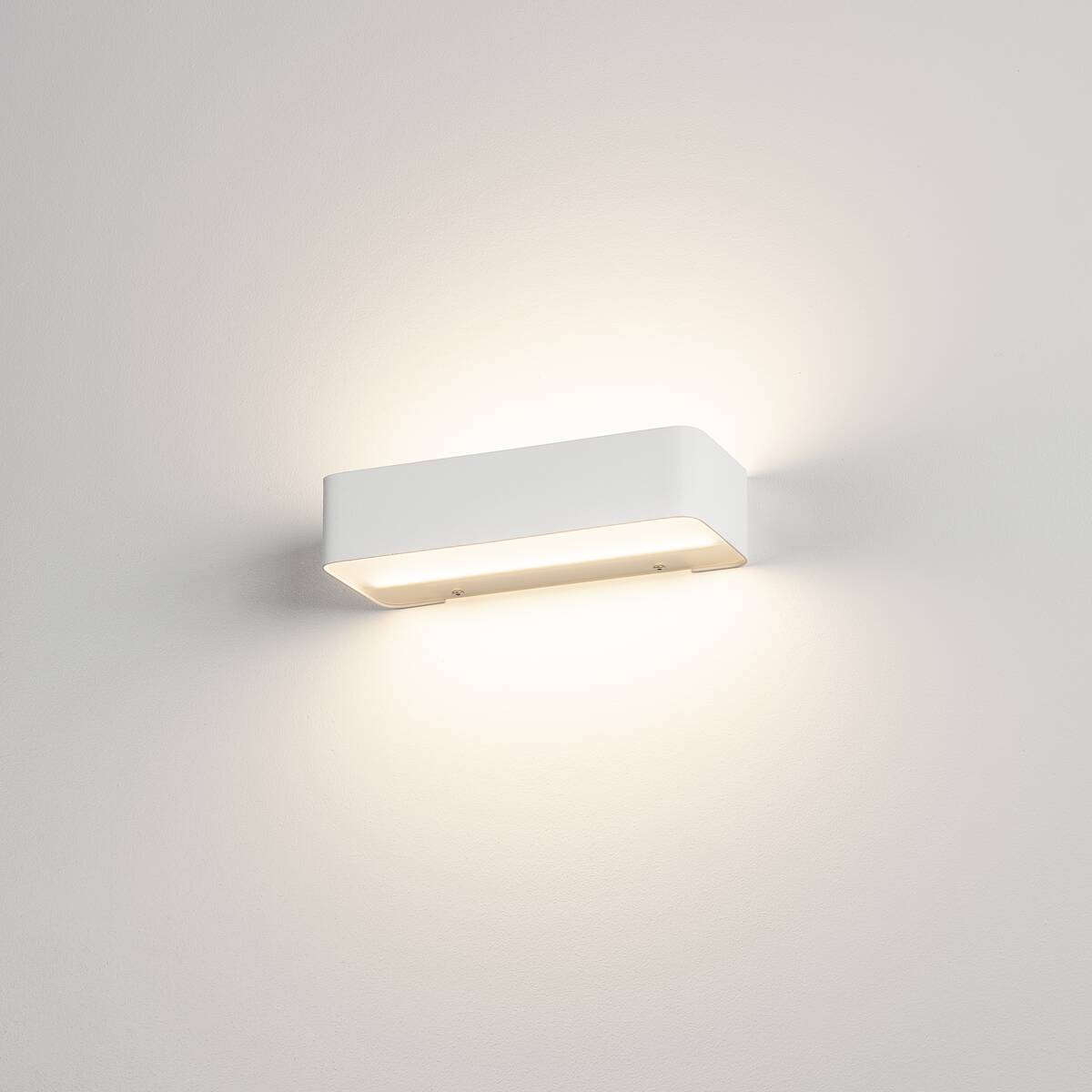

The WL 149 is a surface-mounted wall light with LED technology, designed for indoor use. It features a colour temperature of 3000 K and a luminous flux of 1080 lumens at a power consumption of 10 watts. The housing is made of steel and glass, ensuring a stable and durable construction. The luminaire measures 24 cm in width, 6 cm in height, and 10 cm in depth. It is equipped with PHASE-cut dimming, allowing flexible light control. The IP20 protection rating provides protection against solid foreign objects larger than 12.5 mm in diameter, but no protection against water. The WL 149 is suitable for various applications where a functional and technically sophisticated wall lighting solution is required.

Tehnilised andmed

Colour white
Colour temperature 3000 Kelvin
Luminous Flux 1080 lm
electrical power 10 W
CRI 90
Net weight 1.11 kg
Height 6 cm
Width 24 cm
IP Code IP20
Service life 50000 h
Primary nominal voltage 220-240V ~ 50/60Hz
Secondary power / secondary voltage 250 mA
Variant Dimm options Trailing edge
Ambient temperature -20 °C
Material Steel
LED can be changed Exchange of lightsource only by professional
Product name WL 149
CCT Switch No
DALI capable No
Dimmable Yes
Risk group 1
Berker 2873 Result Compatible
Busch-Jäger 6523U Result Compatible
Eltako EUD 61 NPN-UC Result Compatible
Legrand PRO21 LED Dimmer 775659 Result Compatible
LK Fuga LED Dimmer 180 Touch Result Compatible
Merten MEG5134-0000 Result Compatible
Niko 310-0190X Result Compatible
Tehnilised failid Manual
CE declaration
Removal instructions
Assembly drawings
REACh
Kategooriad Indoor, LED, Surface mounted , Wall lights
