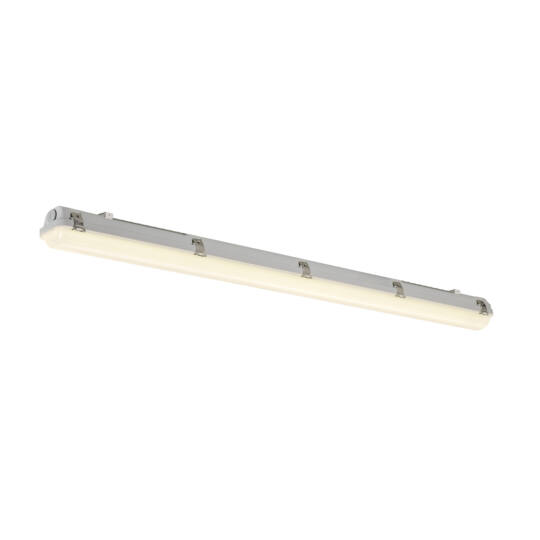

The WATERPROOF V DALI 1200 damp-proof luminaire is designed for use in demanding indoor environments with high humidity levels. It is suitable for both wall and ceiling mounting. With a power consumption of 36 watts, the luminaire produces a luminous flux of 4470 lumens at a colour temperature of 4000 Kelvin (neutral white). The housing is made of polycarbonate and ensures a high protection rating of IP66 as well as impact resistance class IK08, protecting the luminaire against dust ingress and powerful jets of water while withstanding mechanical stresses. The dimensions are 123.6 cm in length, 8 cm in width, and 7.6 cm in height. The luminaire is equipped with DALI 2 and touch dimming technology, enabling flexible light control. The declared service life is 50,000 hours.

Tehnilised andmed

Colour	gray
Colour temperature	4000 Kelvin
Luminous Flux	4470 lm
electrical power	36 W
CRI	80
Net weight	1.609 kg

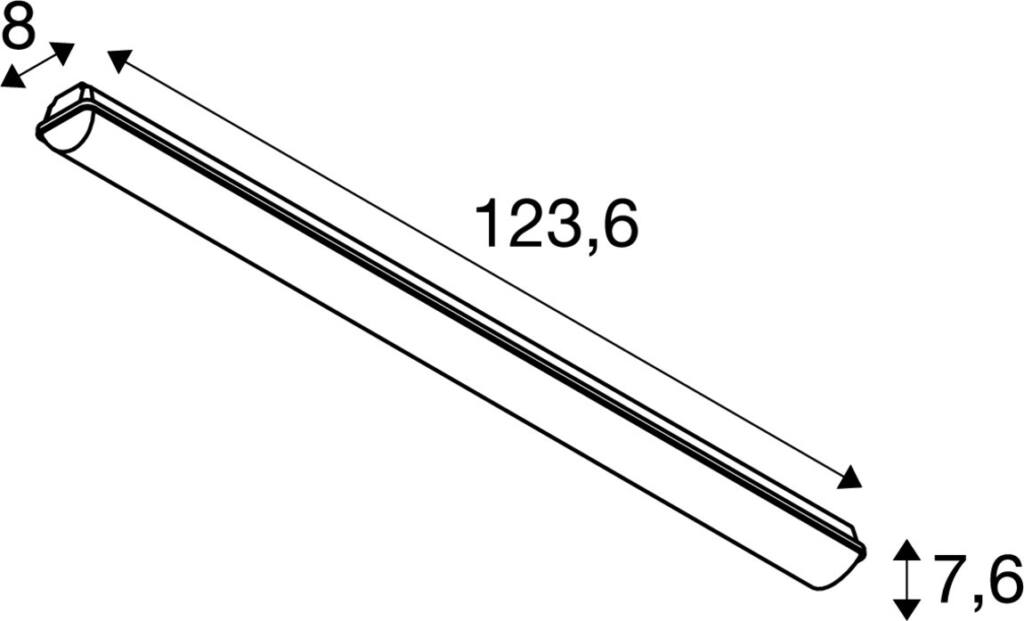

Height	7.6 cm
Length	123.6 cm
Width	8 cm
IP Code	IP66
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	DALI_TOUCH
Variant Dimm options	DALI and Touch
Number of through-wires	15
Ambient temperature	-25 °C
Shock resistance category	IK08
Material	Polycarbonate (PC)
Product name	WATERPROOF V DALI 1200
CCT Switch	No
Dimmable	Yes
Risk group	0
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Ceiling lights, Indoor, Surface mounted
