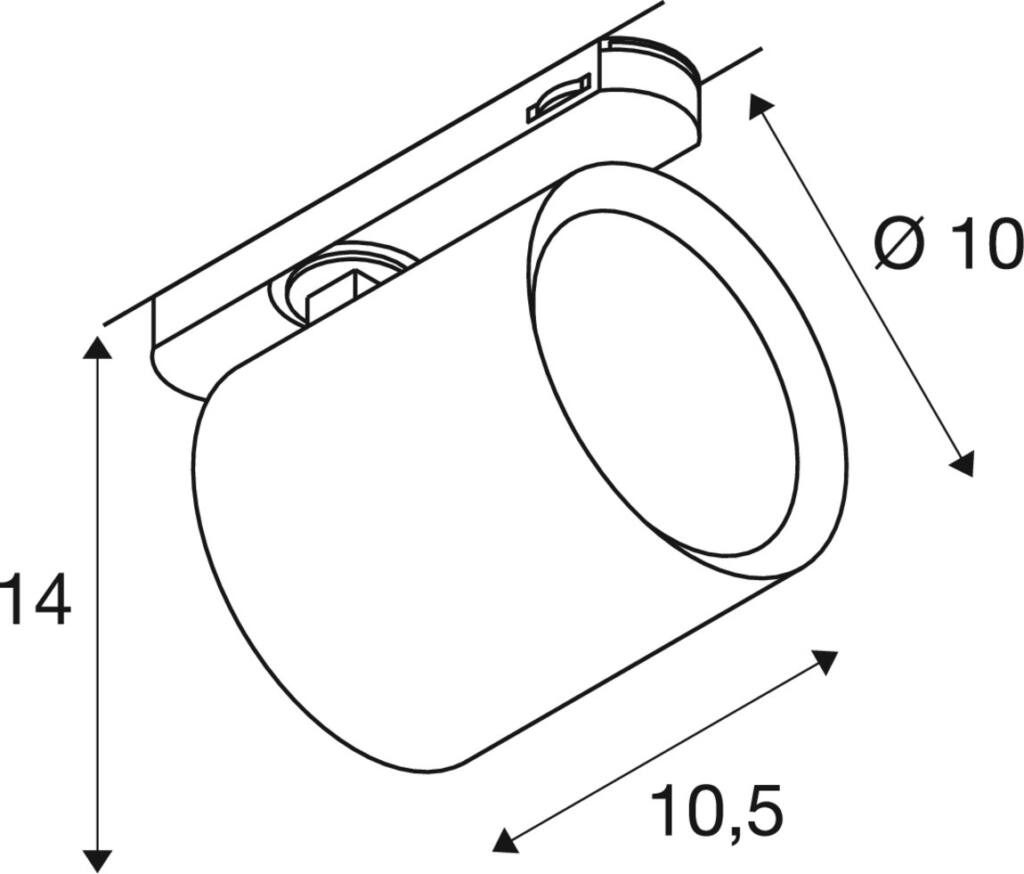

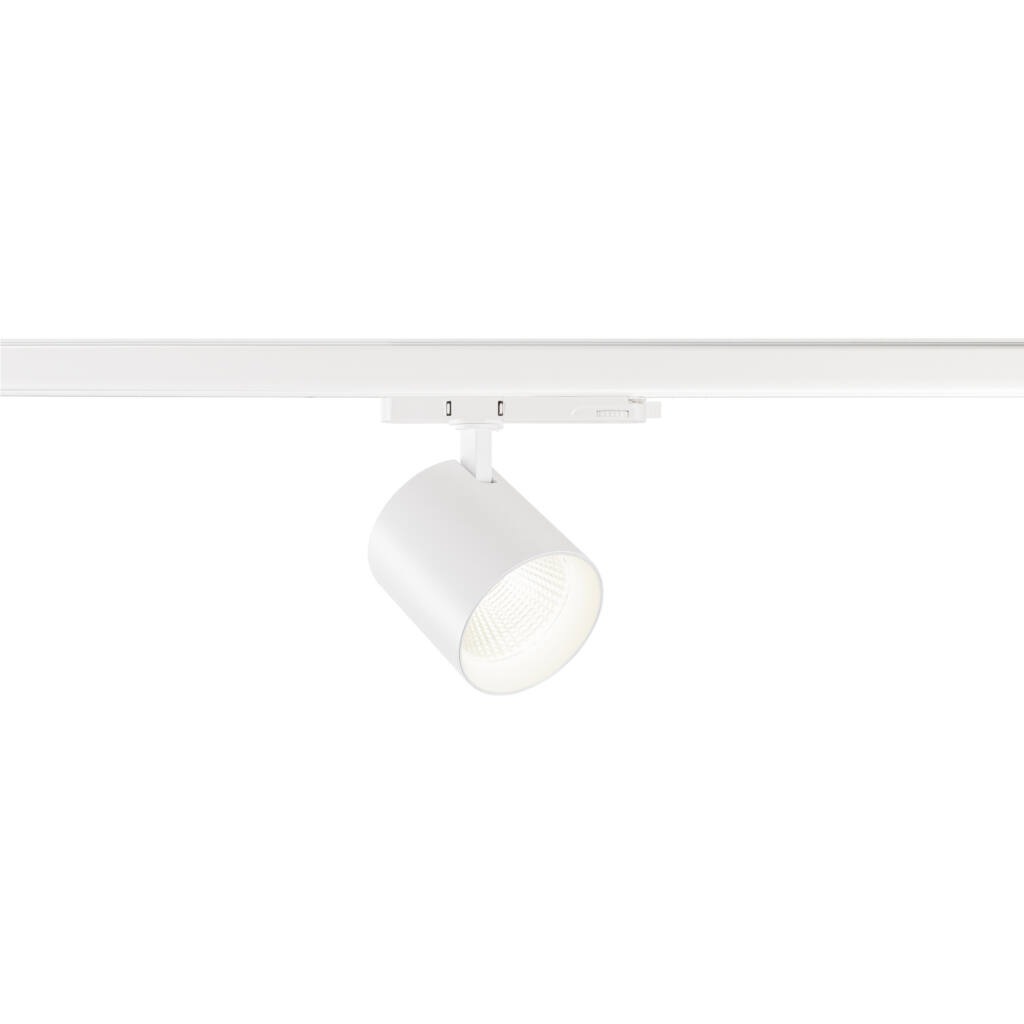

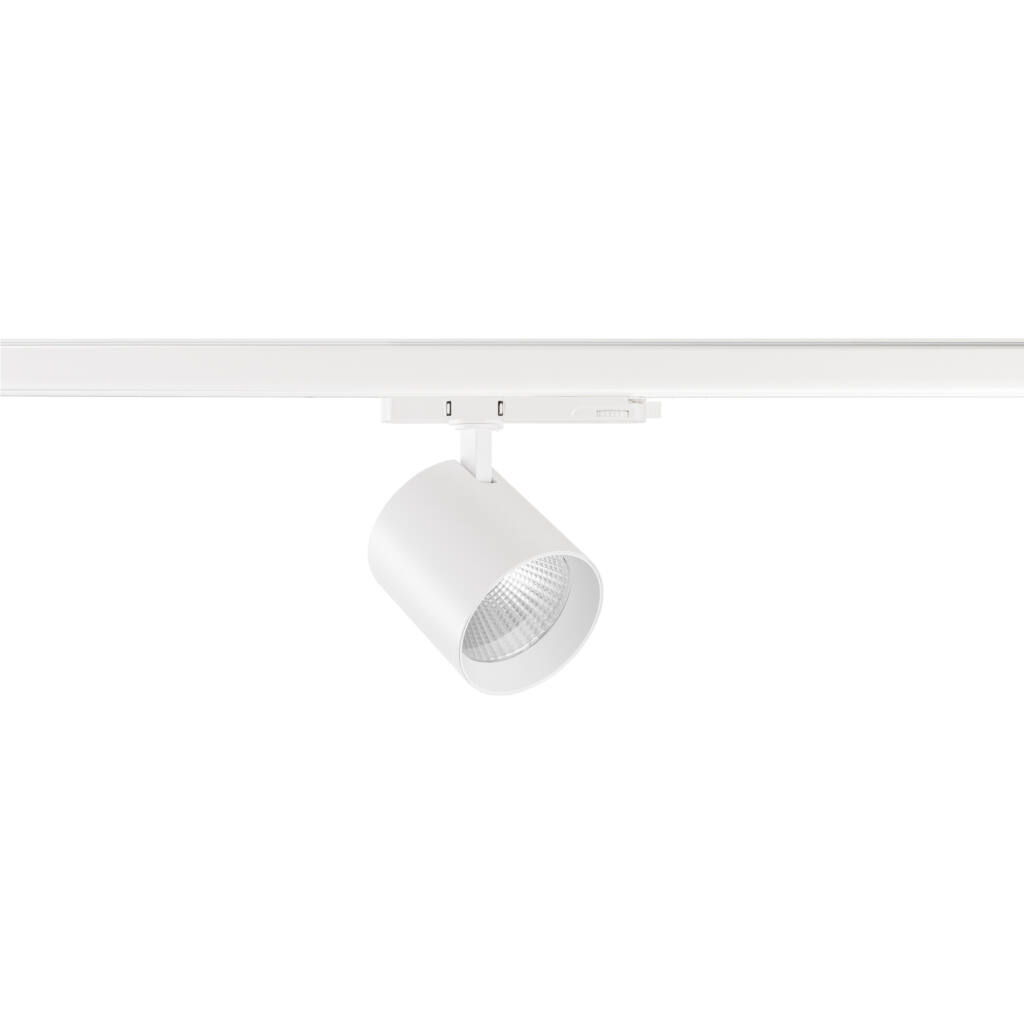

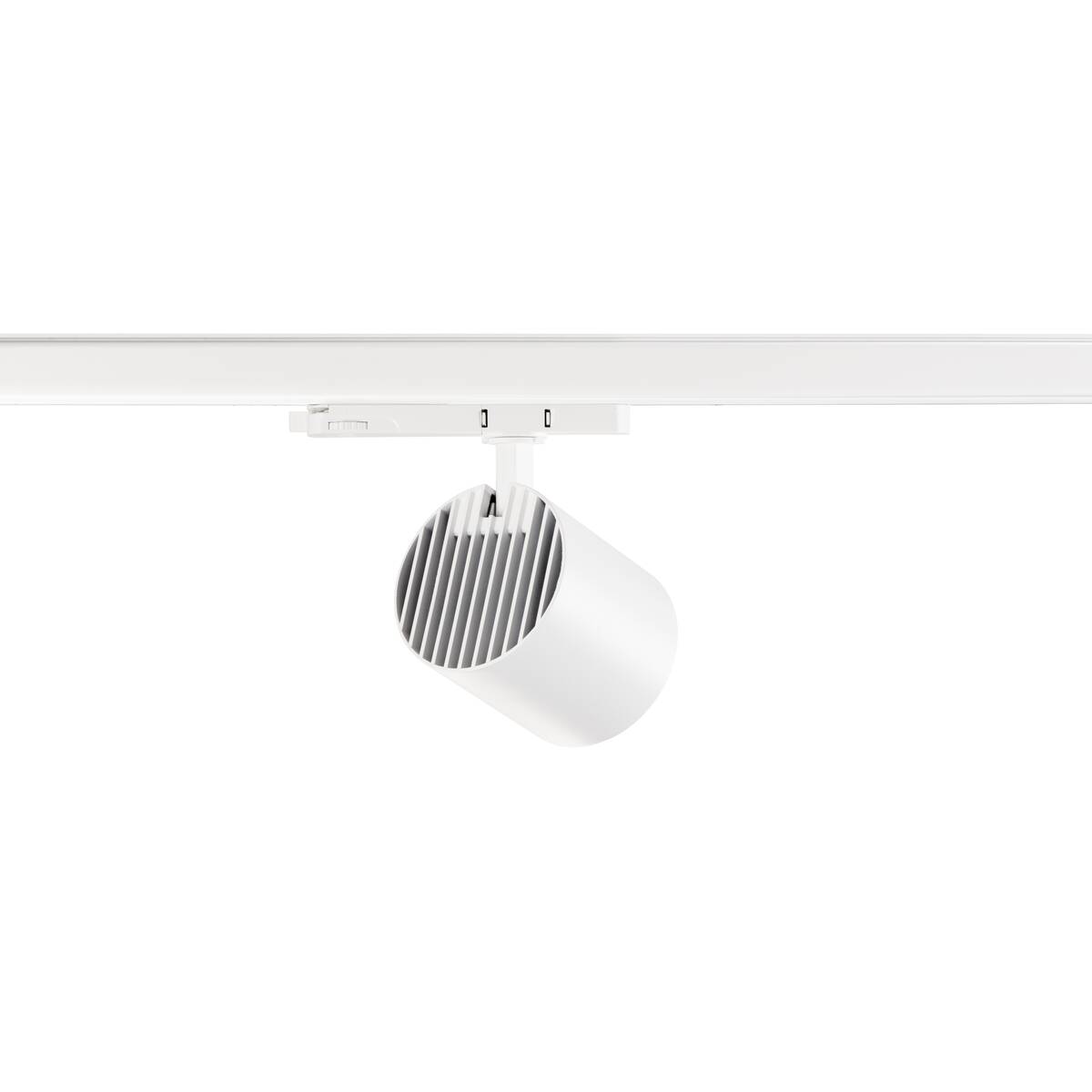

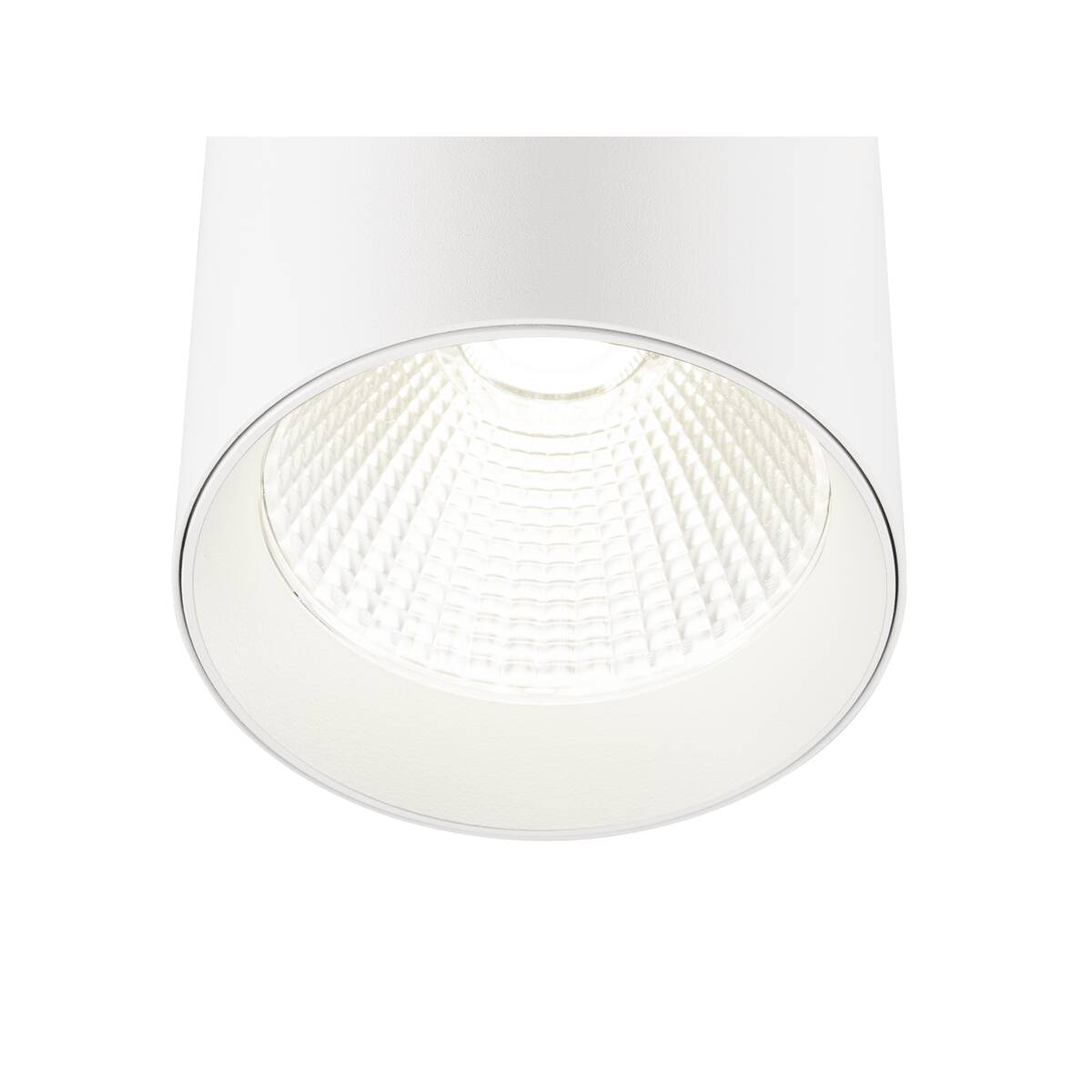

The TRACKSPOT C is a 3-PHASE spot designed for mounting on ceiling and wall track systems. It is particularly suitable for indoor use where targeted lighting is required. The luminaire offers a power output of 29 watts and a colour rendering index of 940 with a beam angle of 50 degrees. The housing is made of aluminium and has a cylindrical shape. With a length of 10.5 cm, a diameter of 10 cm, and a height of 14 cm, the spot is compactly sized. The protection rating IP20 and impact resistance IK03 ensure safe operation in protected indoor areas. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	50 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	4500 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3740 - 4500 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
