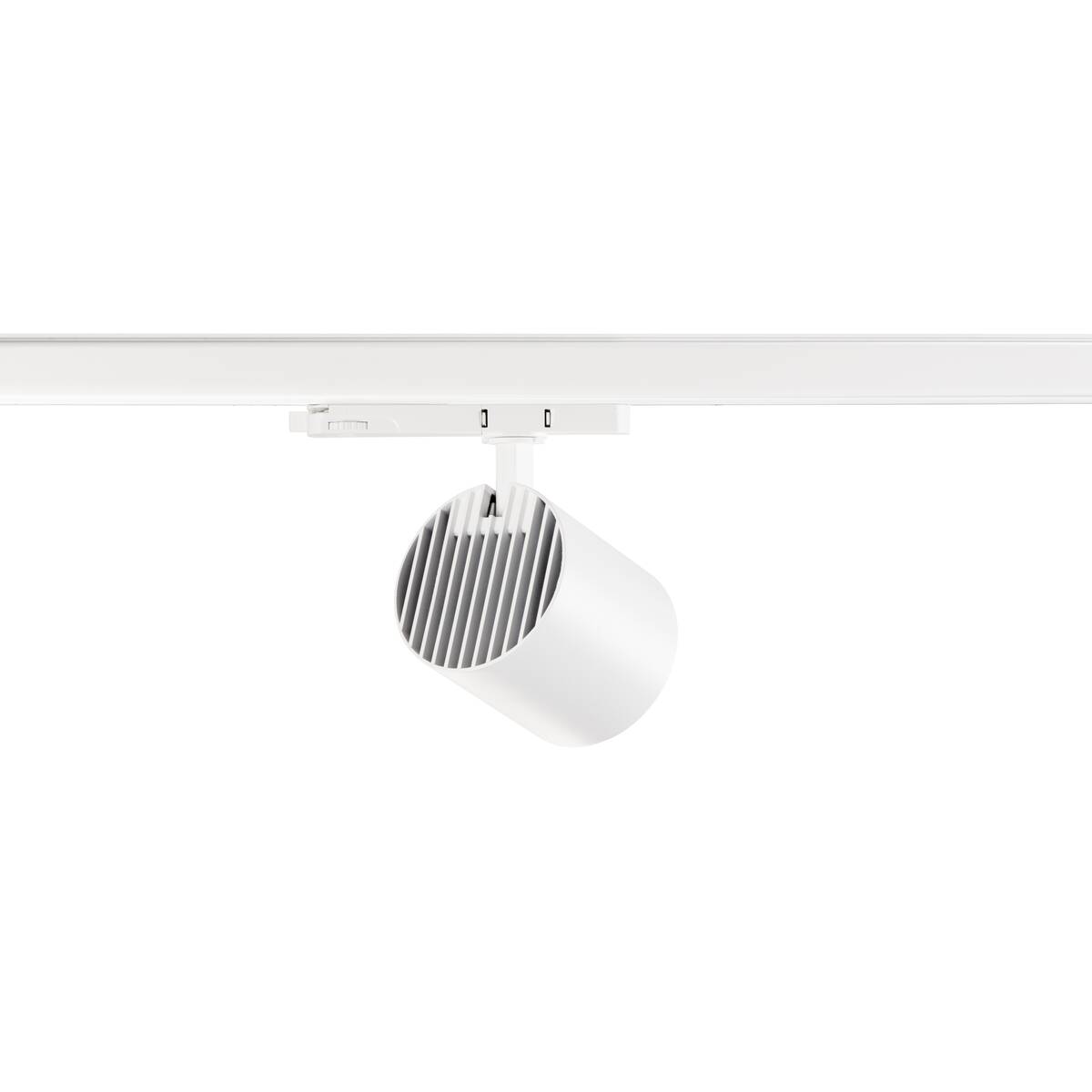

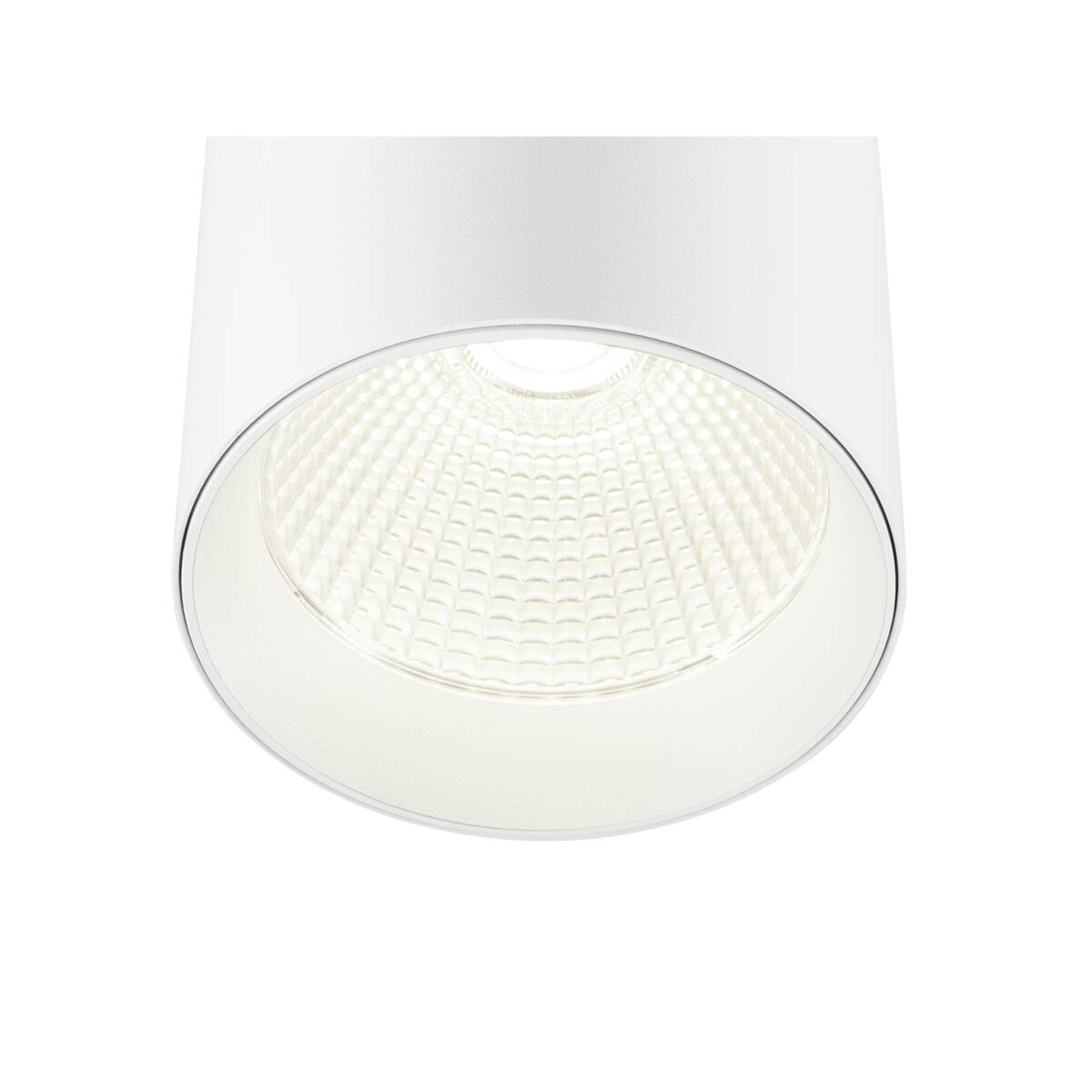

The TRACKSPOT C 3 Ph. is a 3-PHASE spot designed for mounting on ceiling or wall track systems. This cylindrical luminaire housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. With a power consumption of 29 watts and a colour temperature of 4000 Kelvin (940), the spot provides a luminous flux of 3700 to 4520 lumens with a beam angle of 36°. The IP20 protection rating and IK03 impact resistance class ensure solid mechanical durability for indoor use. The luminaire is suitable for professional applications in various indoor environments where precise and flexible lighting is required.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	4520 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3700 - 4520 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
