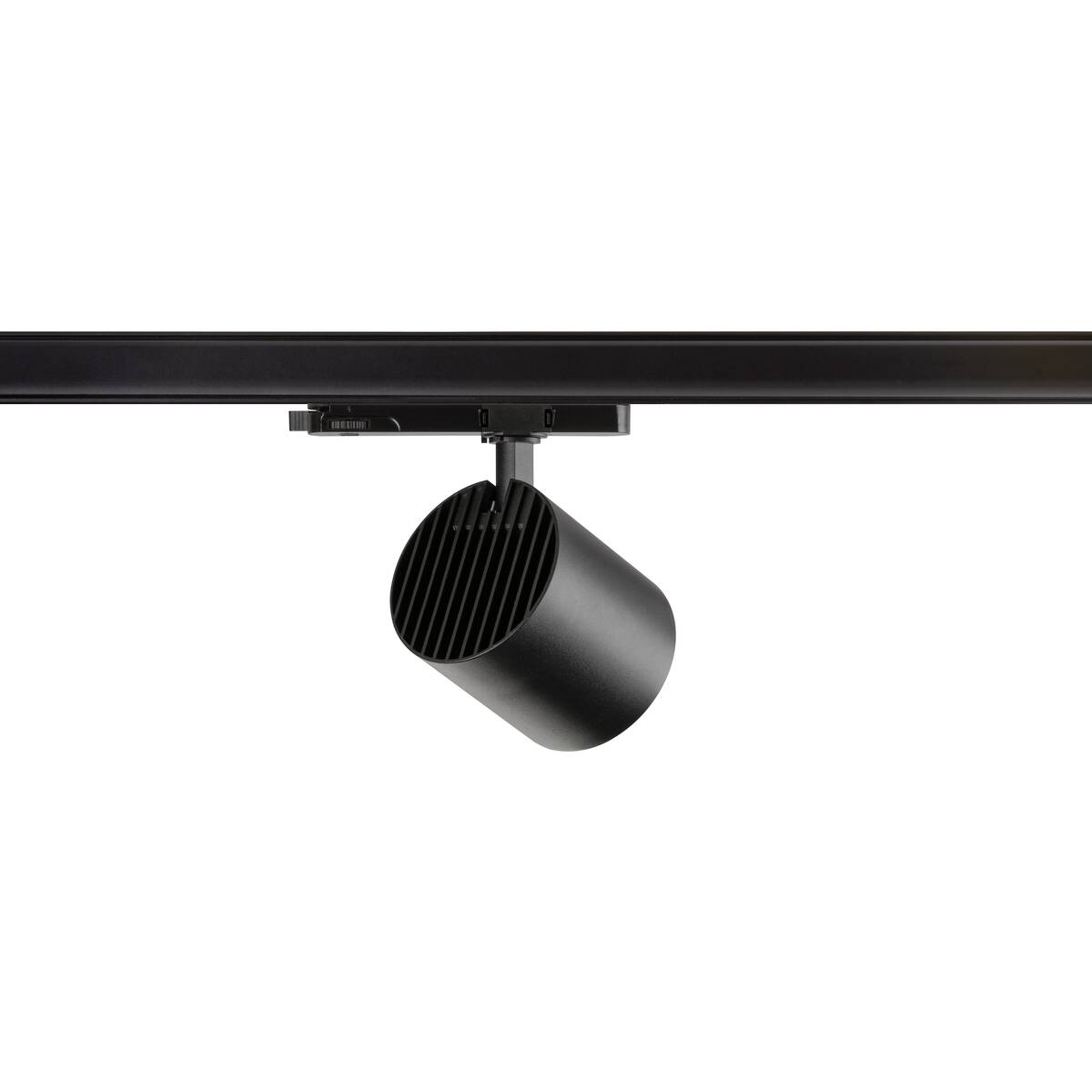

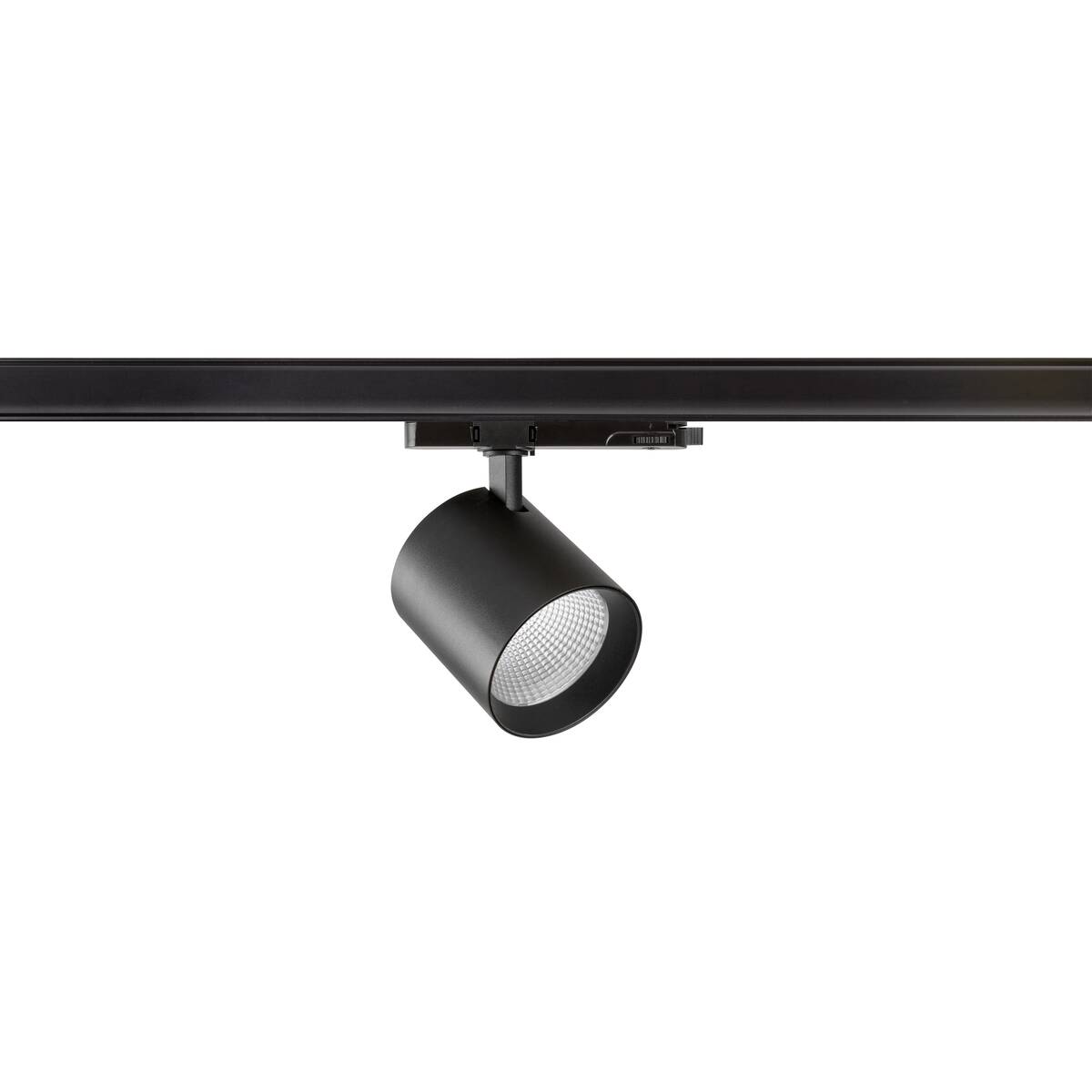

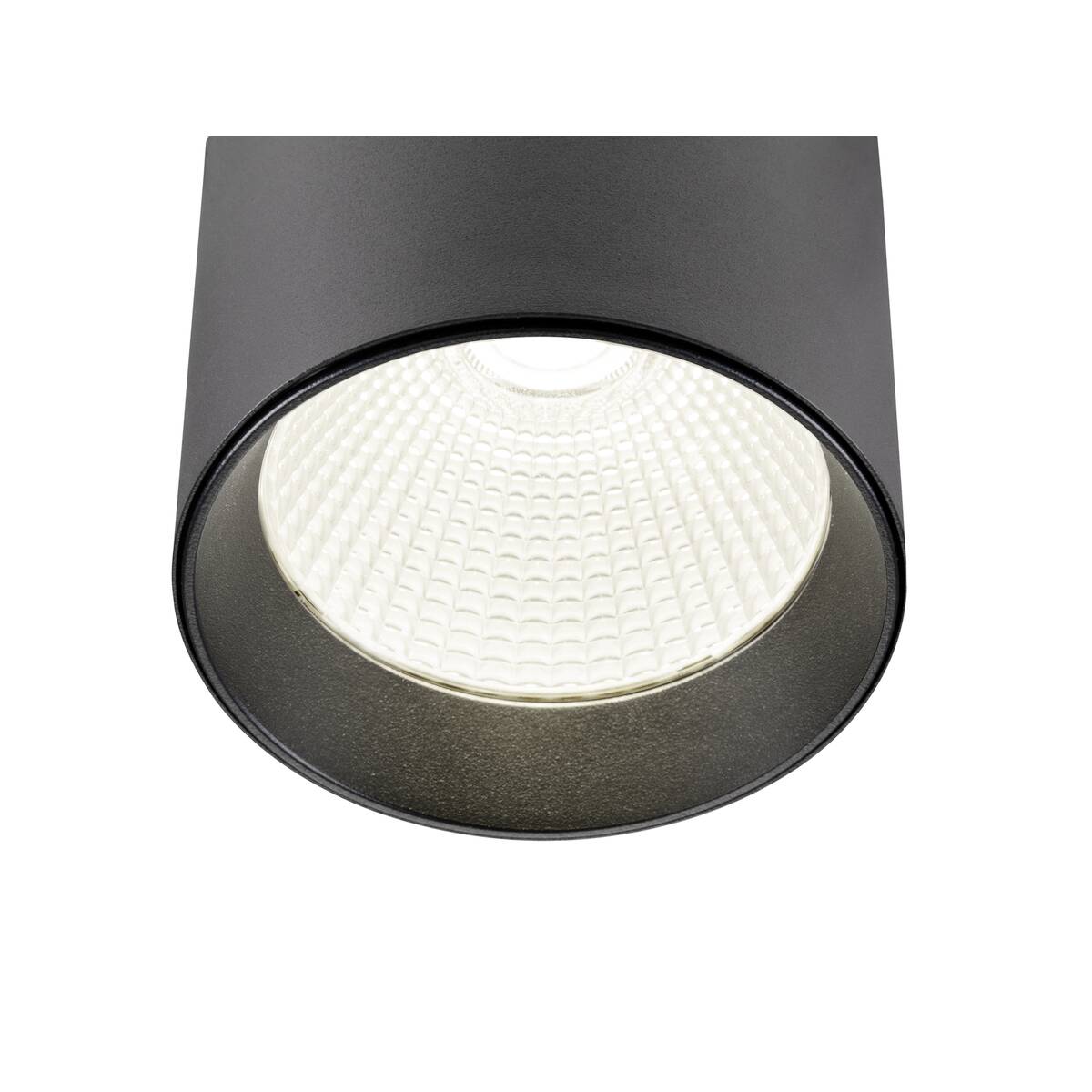

The TRACKSPOT C 3 Ph. is a cylindrical 3-phase spot designed for mounting on ceiling or wall track systems. The lamp, with a power output of 29 watts, delivers a luminous intensity ranging from 3700 to 4520 lumens with a beam angle of 36° and a colour temperature of 4000 Kelvin (940). The housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. The spot features a protection rating of IP20 and an impact resistance class of IK03. The declared lifespan is 50,000 hours. This product is suitable for indoor use, especially in commercial or public areas where flexible and targeted lighting is required.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	4520 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3700 - 4520 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
