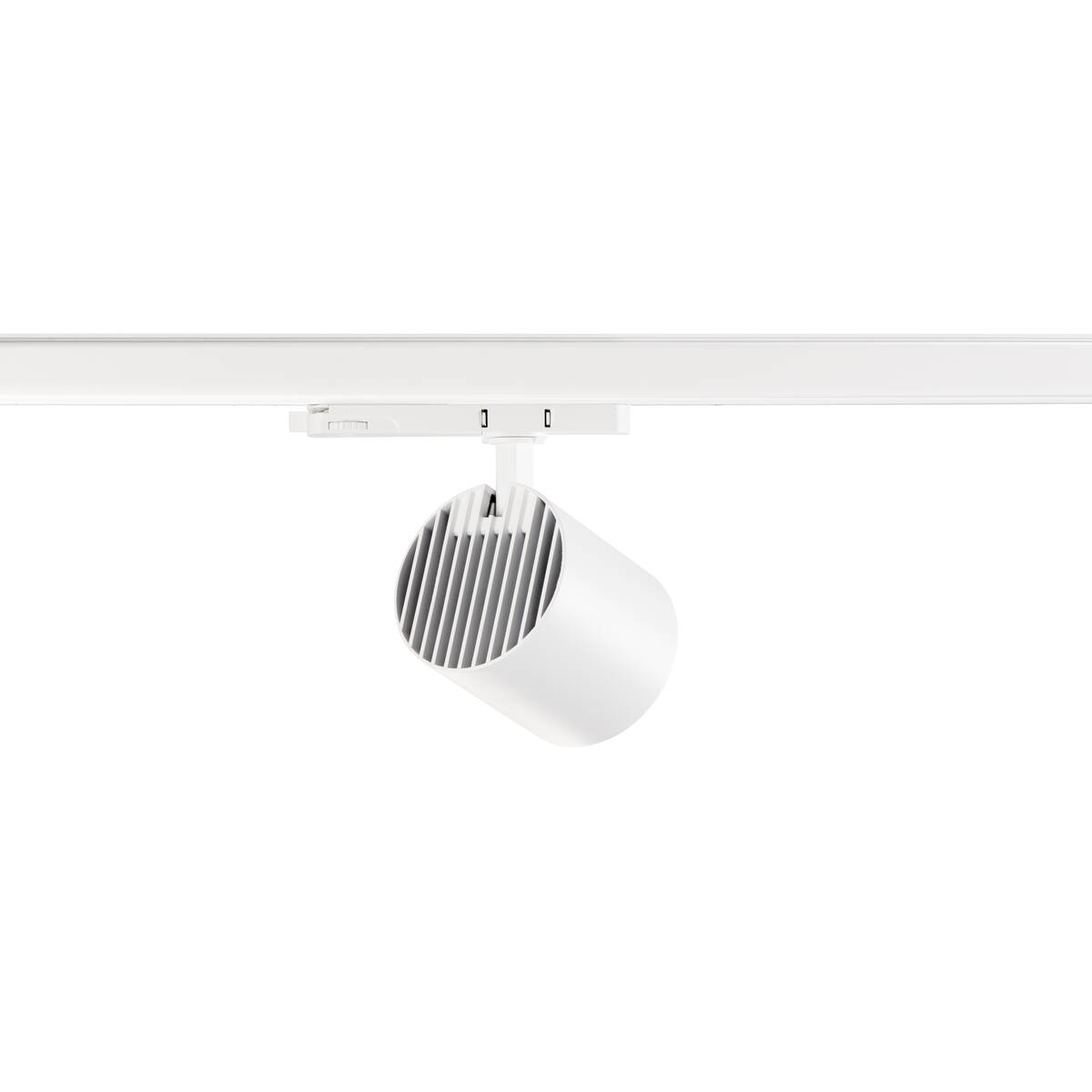

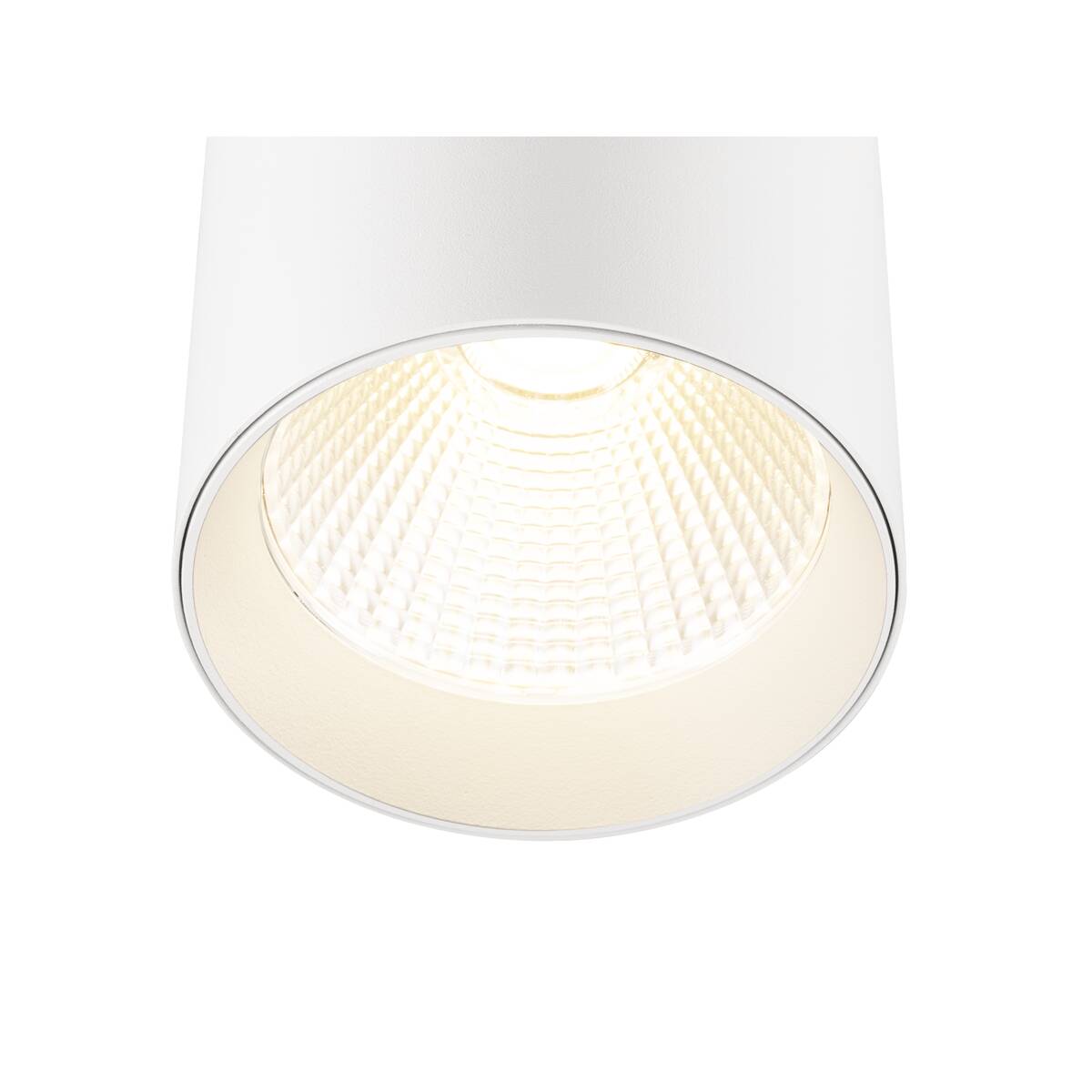

The TRACKSPOT C is a 3-PHASE spot luminaire with a power consumption of 29 watts and a colour temperature of 3000 Kelvin (930). It is suitable for mounting on ceiling or wall track systems and is designed for indoor use. The cylindrical housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. The luminaire has a beam angle of 50 degrees and produces a luminous flux ranging from 3550 to 4250 lumens. With an IP20 protection rating and an impact resistance class of IK03, the spot is suitable for standard environments without direct exposure to moisture. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	50 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	4250 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3550 - 4250 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
