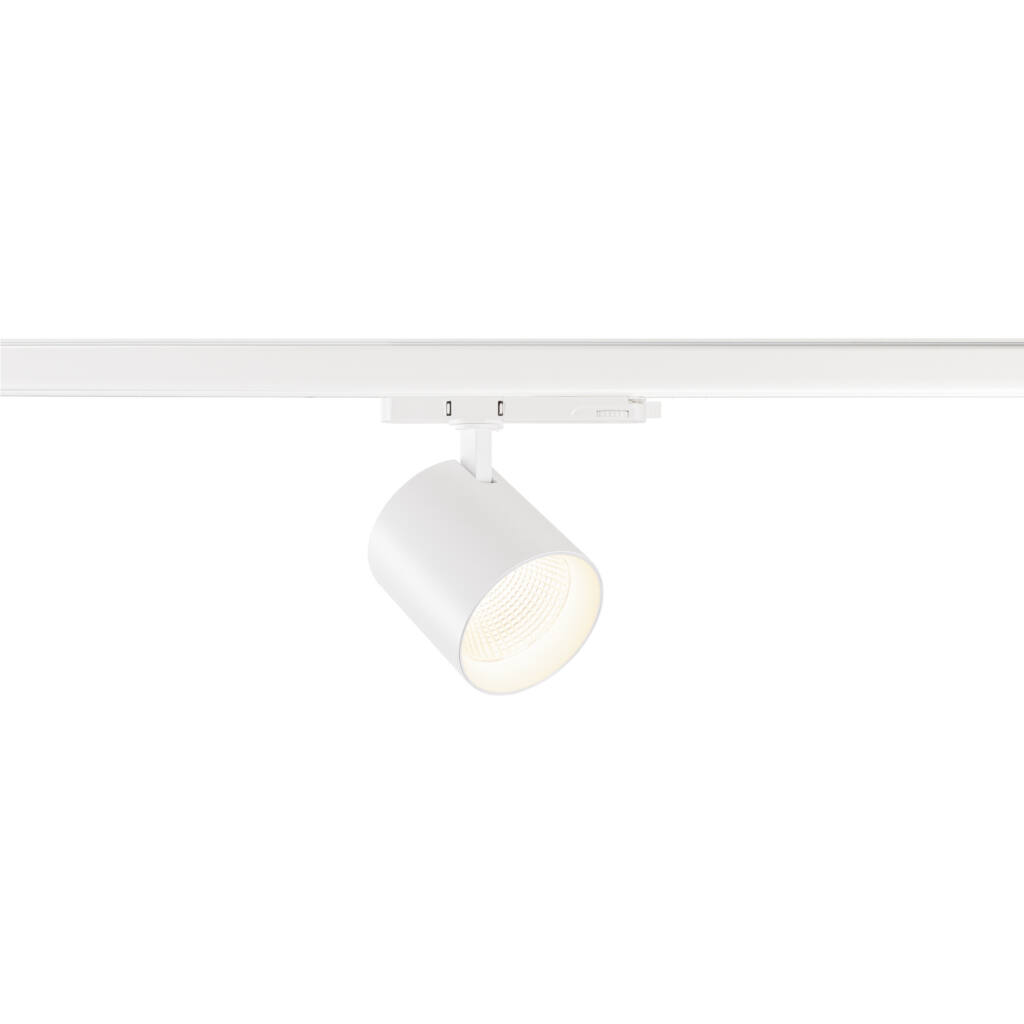

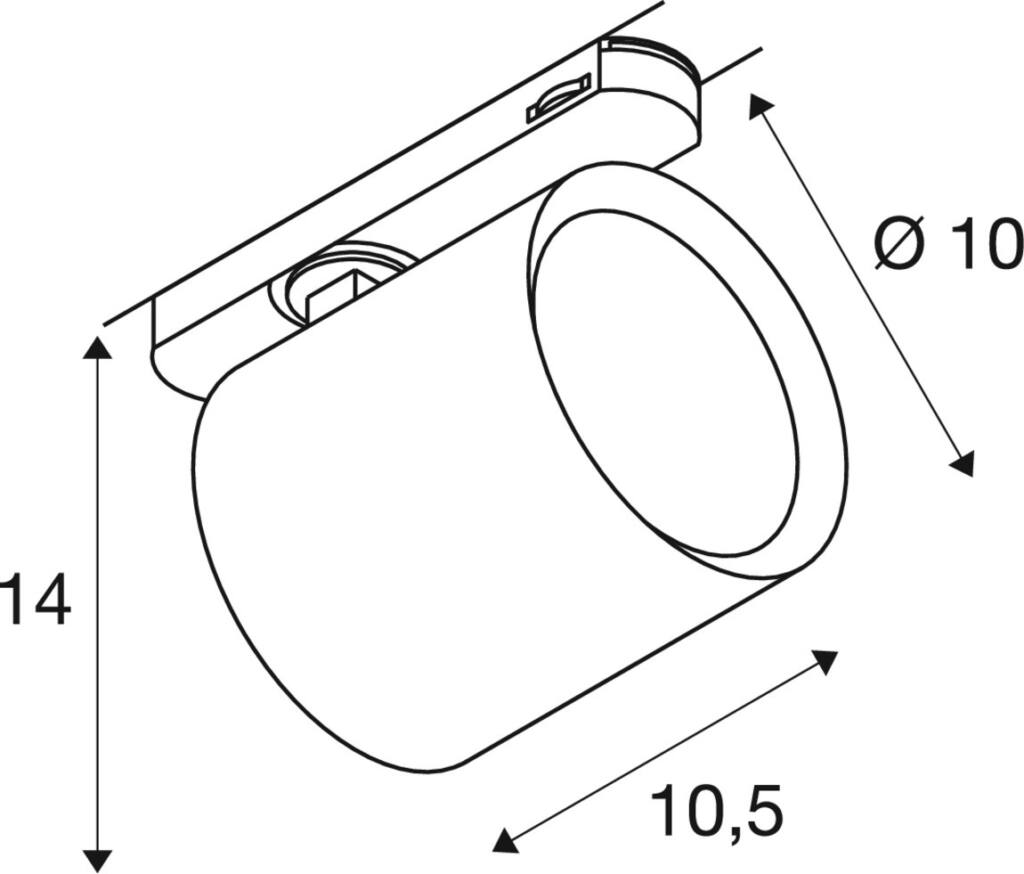

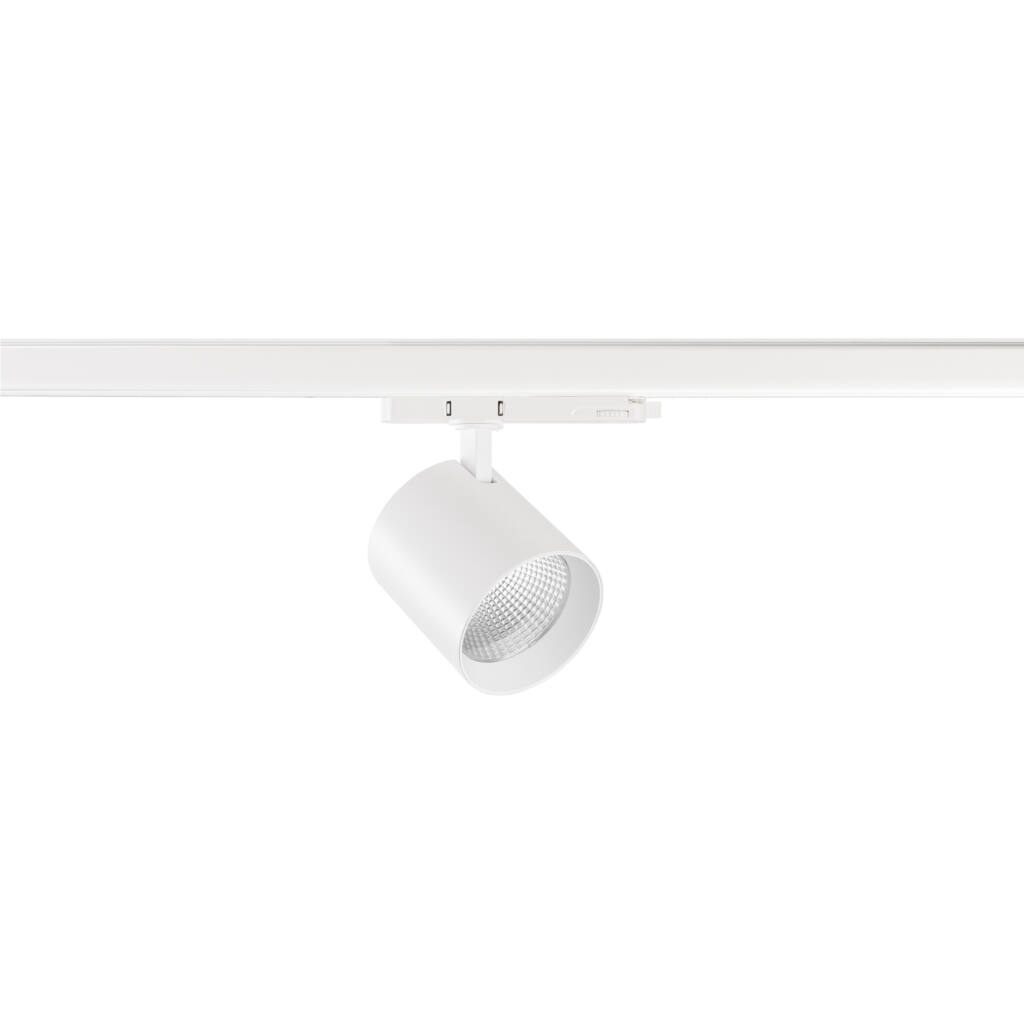

The TRACKSPOT C is a 3-PHASE spot with a power rating of 29 watts, designed for mounting on ceiling or wall track systems. The cylindrical luminaire housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. With a luminous flux ranging from 3550 to 4250 lumens and a beam angle of 36°, the luminaire is suitable for targeted indoor lighting tasks. The colour temperature is 3000 Kelvin (warm white) with a colour rendering index (CRI) of 90. The IP20 protection rating and IK03 impact resistance ensure reliable operation in protected environments. The luminaire has a rated lifetime of 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	4250 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3550 - 4250 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
