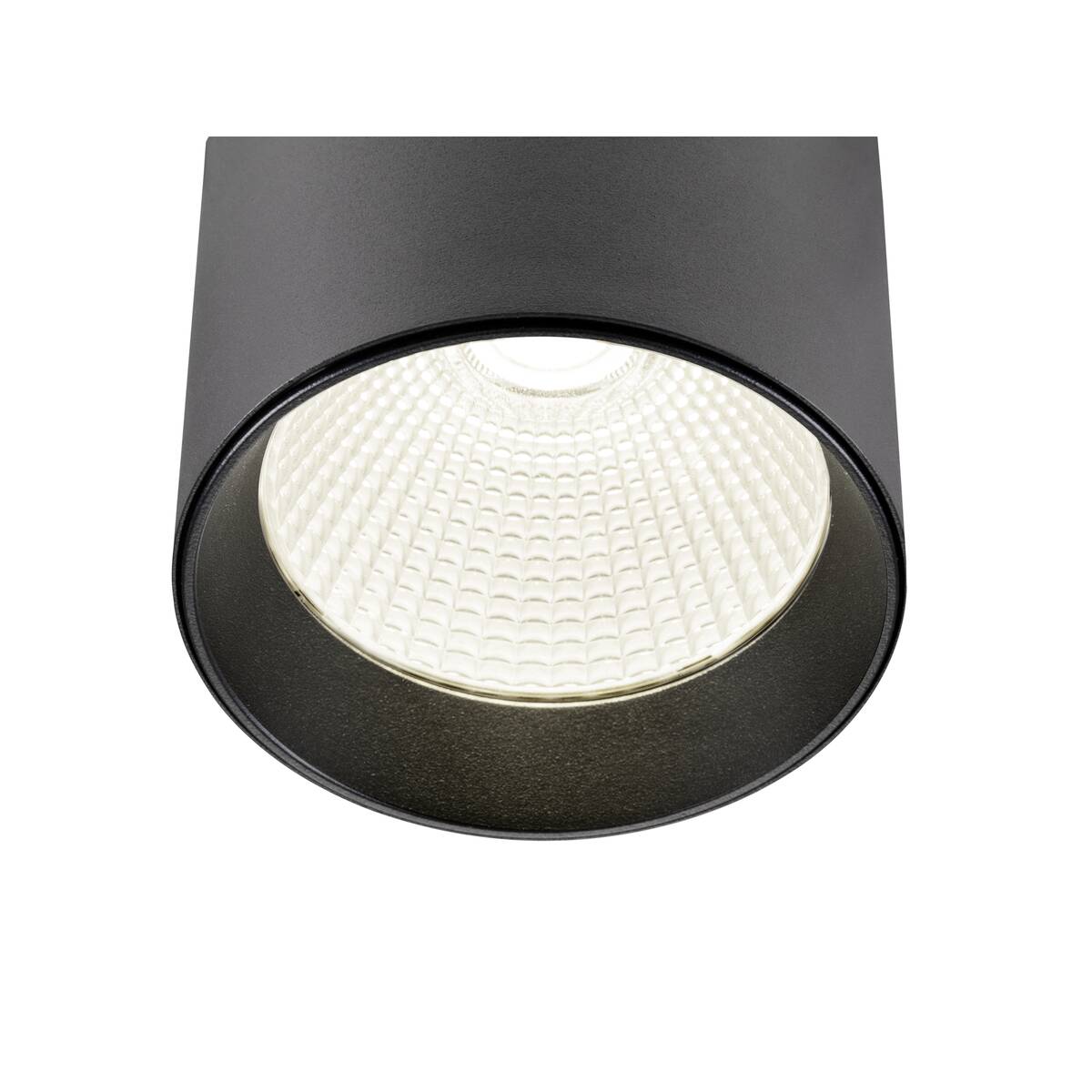

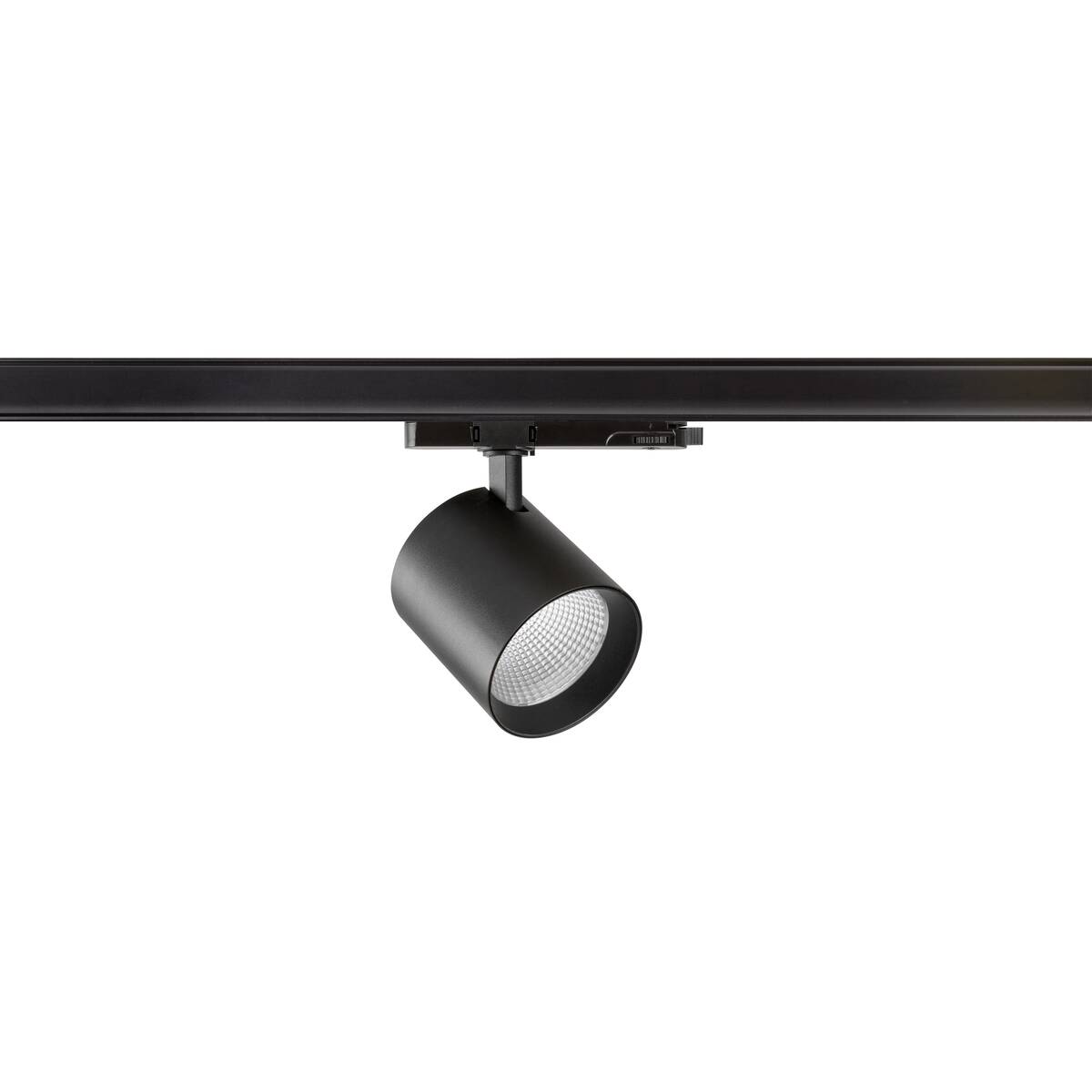

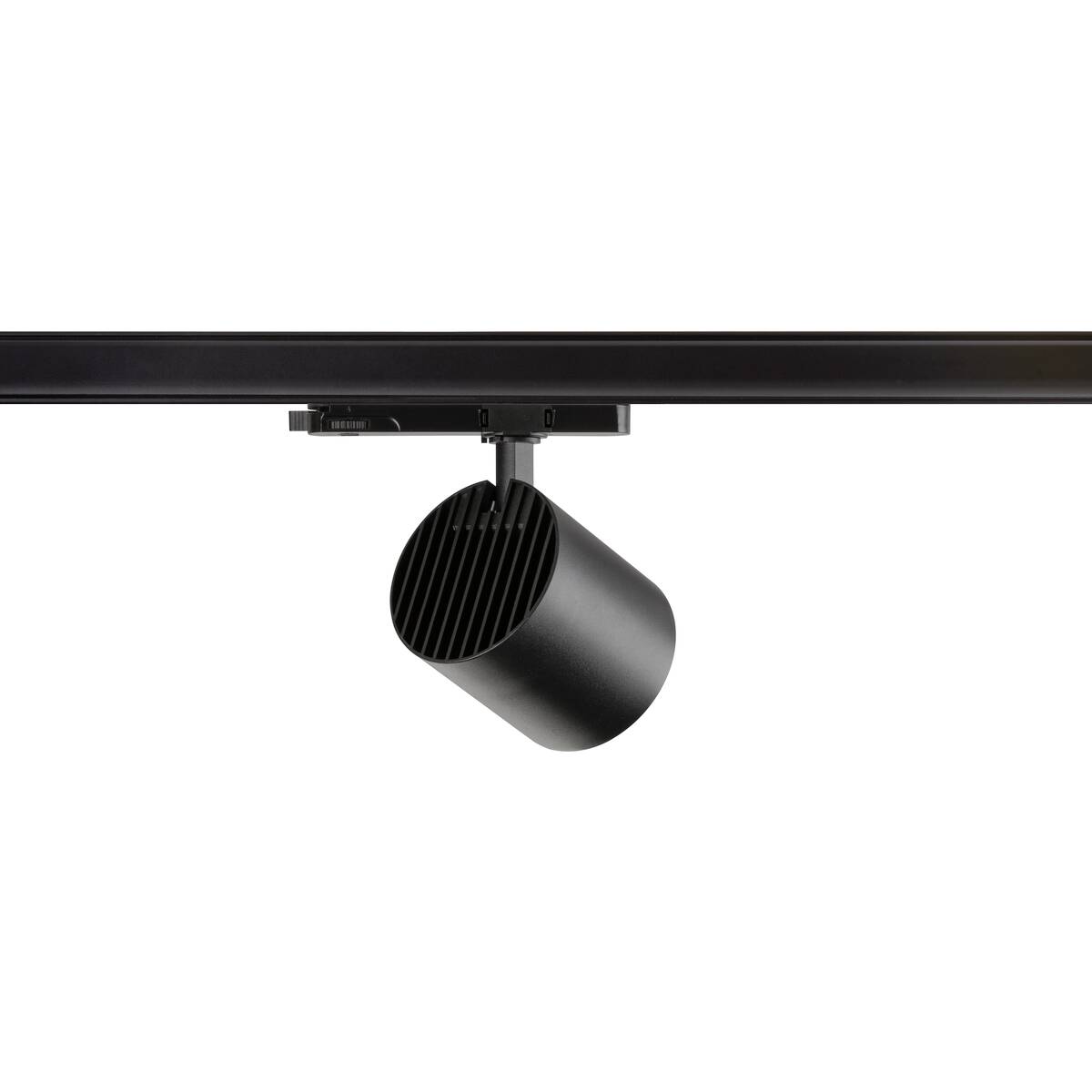

The TRACKSPOT C is a 3-PHASE spotlight designed for mounting on ceiling or wall track systems. The cylindrical luminaire housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. With a power consumption of 29 watts, the luminaire produces a luminous intensity ranging from 3550 to 4250 lumens, featuring a beam angle of 36 degrees and a colour temperature of 3000 Kelvin (930). The IP20 protection rating and IK03 impact resistance ensure reliable operation indoors. This luminaire is suitable for professional lighting applications where precise light control and flexible positioning are required.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	4250 lm
electrical power	25 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	3550 - 4250 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	650-800mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
