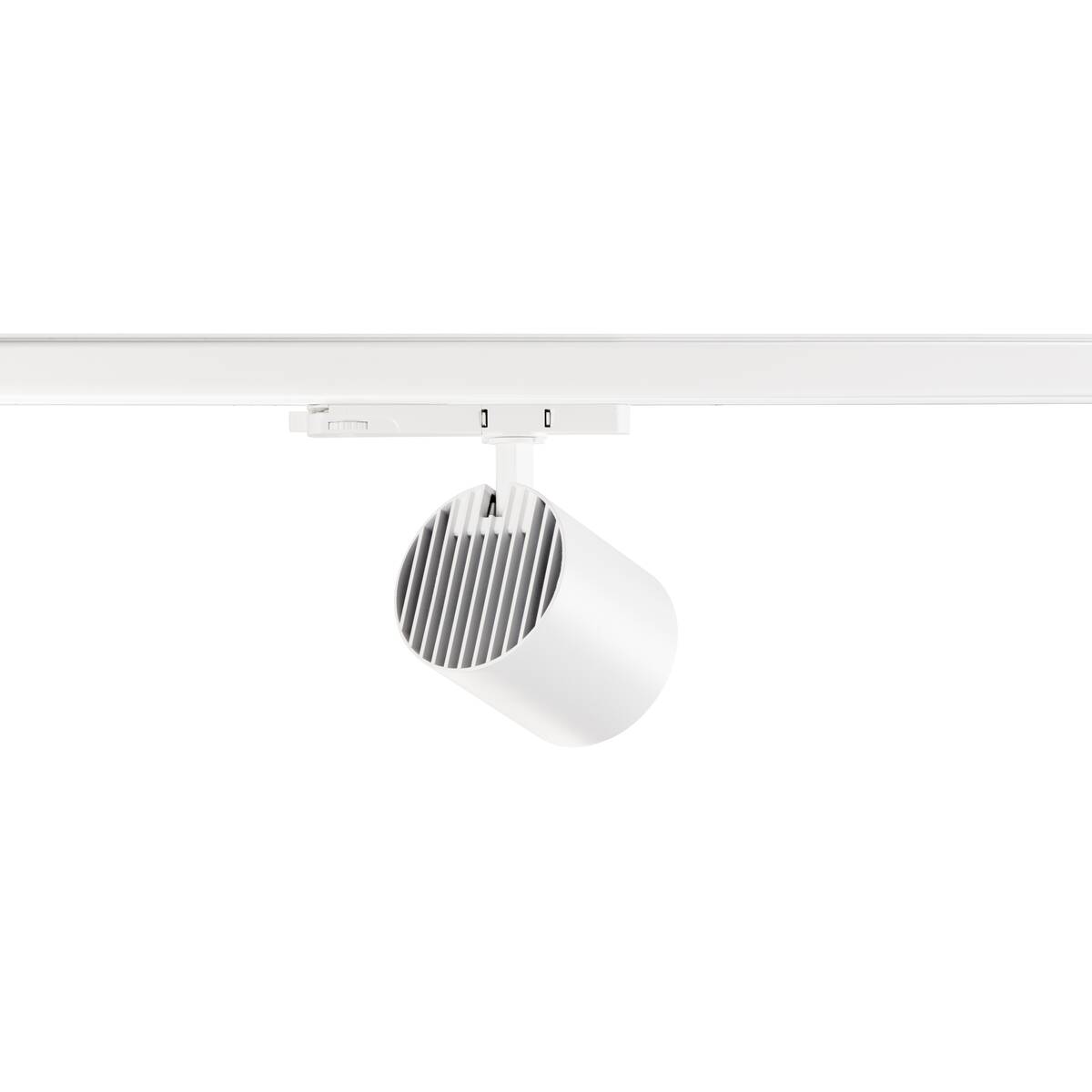

The TRACKSPOT C is a cylindrical 3-PHASE spot designed for mounting on ceiling and wall track systems. It is particularly suitable for indoor use where targeted lighting is required. The lamp has a power consumption of 17 watts and offers a light colour with a colour rendering index of 90 at 4000 Kelvin. The beam angle is 50 degrees, allowing for precise light distribution. The housing is made of aluminium and measures 10.5 cm in length, 10 cm in diameter, and 14 cm in height. The spot is protected to IP20 against contact and ingress of foreign objects and features an impact resistance rating of IK03. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	50 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	3460 lm
electrical power	17 W
CRI	90
Net weight	0.72 kg
Diameter	10 cm
Height	14 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	2700 - 3460 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	450-600mA
Shape	cylindrical
Horizontal rotation range	355 °
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Shock resistance category	IK03
Material	Aluminium
UGR ≤	25
Product name	TRACKSPOT C
CCT Switch	No
Assembly	Track
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
