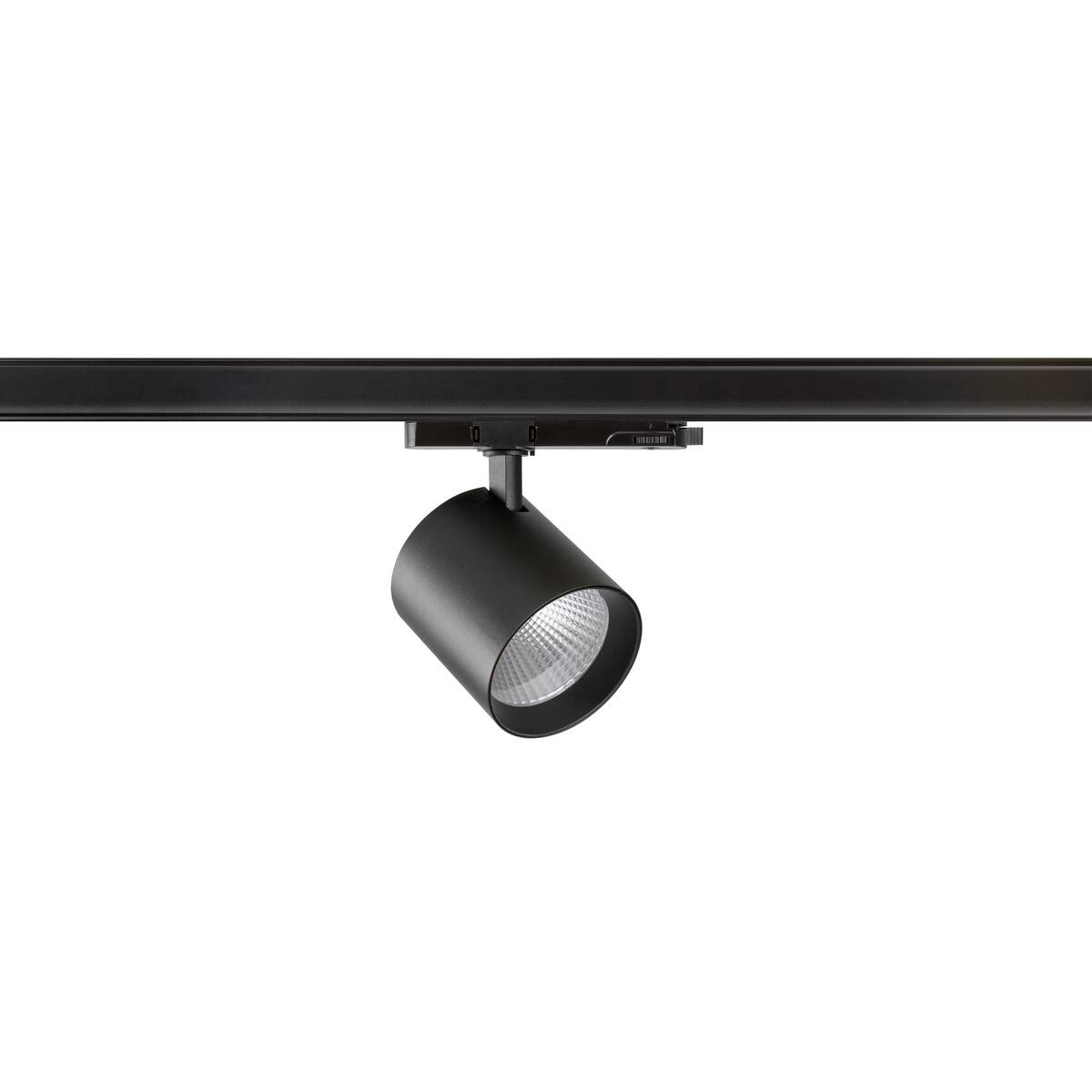

TRACKSPOT C 3 Ph. 17W 940 50°, Black

normal
Dimensioned drawing

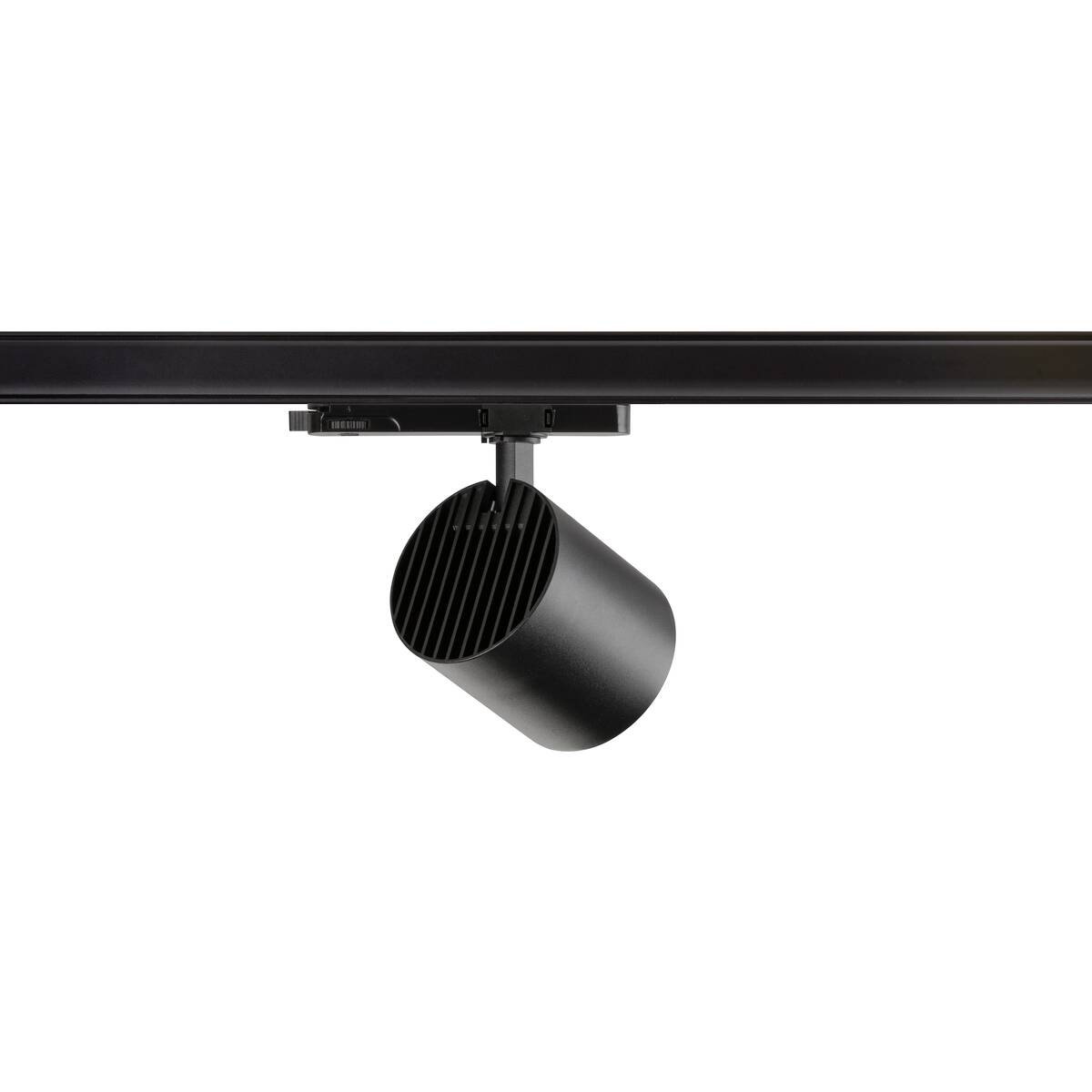

Product picture back view
Product picture bottom view
-25%
  • normal
  • Dimensioned drawing
  • Product picture back view
  • Product picture bottom view

The TRACKSPOT C 3-phase spotlight, which is compatible with S-Track and Eutrac systems, is the ideal choice for demanding commercial projects with a moderate budget, where high efficiency and the lowest possible energy consumption are the key points of focus. With an energy efficiency of over 145 lm/W, excellent colour rendering thanks to CRI 90, and a high luminous flux of up to 4,400 lumens, the luminaire offers a lighting solution that is perfect for small and large commercial areas. Thanks to a service life of 50,000 hours (L80B50), the TRACKSPOT C also ensures long-term reliability and reduces maintenance costs. Available in different versions with 17W or 29W, beam angles of 36° or 50°, in 3,000 K and 4,000 K, the TRACKSPOT C comes in black and white versions. This flexibility enables harmonious integration into different room concepts.

Tehnilised andmed

Width 100 mm
IP Code IP20
Wattage 17 W
Lumen 2600
Colour temperature 4000 K
CRI 90-100
Rated life time Rated lifetime L70/B50 at 25 °C h
Installation diameter 100 mm
Safety class II
Lamp type LED not exchangeable
Hämardamine No
PRODUCT DIAMETER IN CM 10
PRODUCT WIDTH IN CM 10
PRODUCT LENGTH IN CM 10.5
LIFE TIME IN H 50000
UGR 25
BEAM ANGLE 50
EEK contains Lightsources of EEC B
RATED SECONDARY IN MA/V 450mA
RATED PRIMARY VOLTAGE 220-240V ~50/60 Hz
Luminaire efficacy 152.94
Length 105 mm
Height/depth 140 mm
Suitable for lamp power 17 W
Light outlet Direct
Material cover Other
Colour housing Black
Surface protection Lacquered
Material housing Aluminium
Tehnilised failid Mounting instruction
Product data sheet
Declaration warranty
Kategooriad 3-Phase-System, High voltage track systems, Indoor, Track systems
