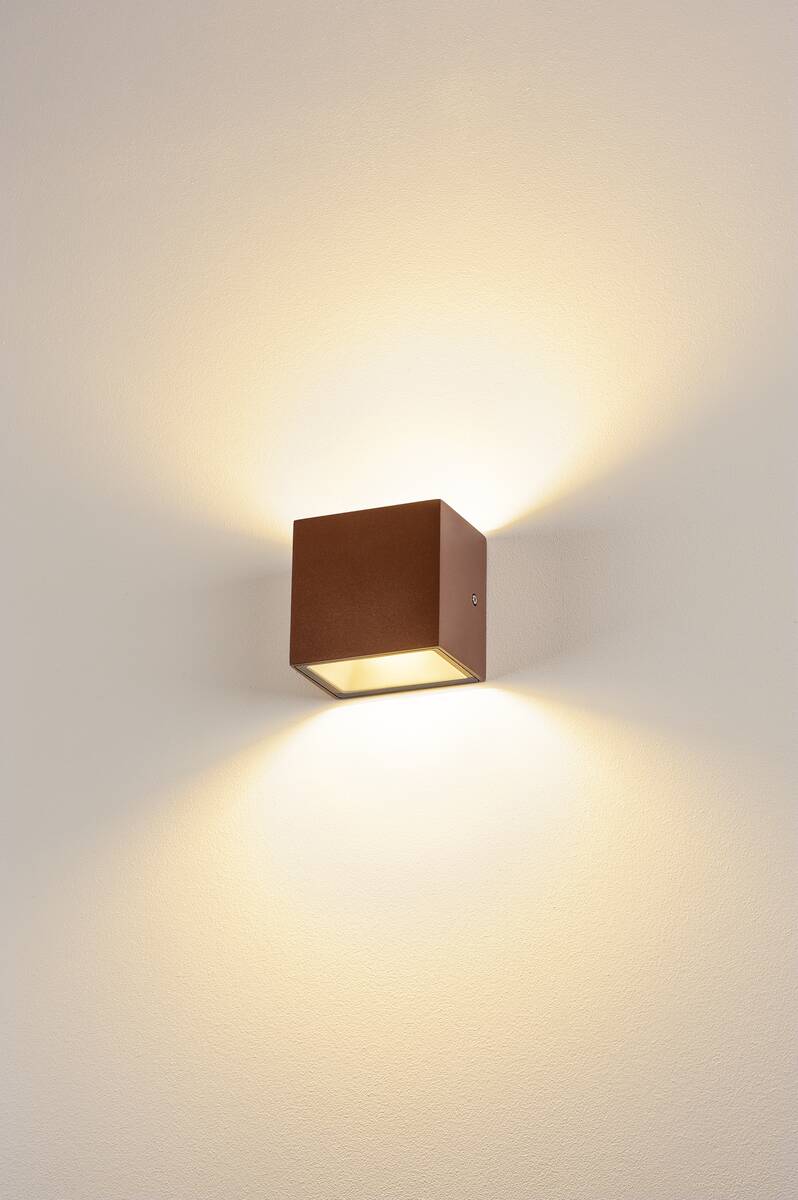

The SITRA S is an LED wall and ceiling surface-mounted luminaire suitable for outdoor use. It is specifically designed for illuminating façades, entrance areas, and pathways. The luminaire features a colour temperature of 3000 K and a luminous flux of 1100 to 1270 lumens with a power consumption of 10 watts. The housing is made of aluminium and is protected against dust and water ingress with an IP65 rating. The luminaire has an impact resistance of IK05 and measures 11.8 cm in width, 11 cm in height, and 8.4 cm in depth. With a service life of 50,000 hours, it offers a durable lighting solution for outdoor areas.

Tehnilised andmed

Half beam angle	105 °
Colour	rust
Colour temperature	4000 Kelvin
Luminous Flux	1270 lm
electrical power	11 W
CRI	80
Net weight	0.877 kg
Height	11 cm
Width	11.8 cm
Beam angle	105 °
IP Code	IP65
Service life	50000 h
Luminous flux	1100 / 1270 lm
Primary nominal voltage	100-277V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Light outlet version	Up
Different light outlets	2
Seperate beams	Yes
Ambient temperature	-20 °C
Shock resistance category	IK05
Shock resistance	0.7 joule
Material	Aluminium
LED can be changed	LED lightsource not replaceable
Product name	SITRA S
CCT Switch	Yes
DALI capable	No
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	LED, Outdoor, Surface mounted , Wall lights
