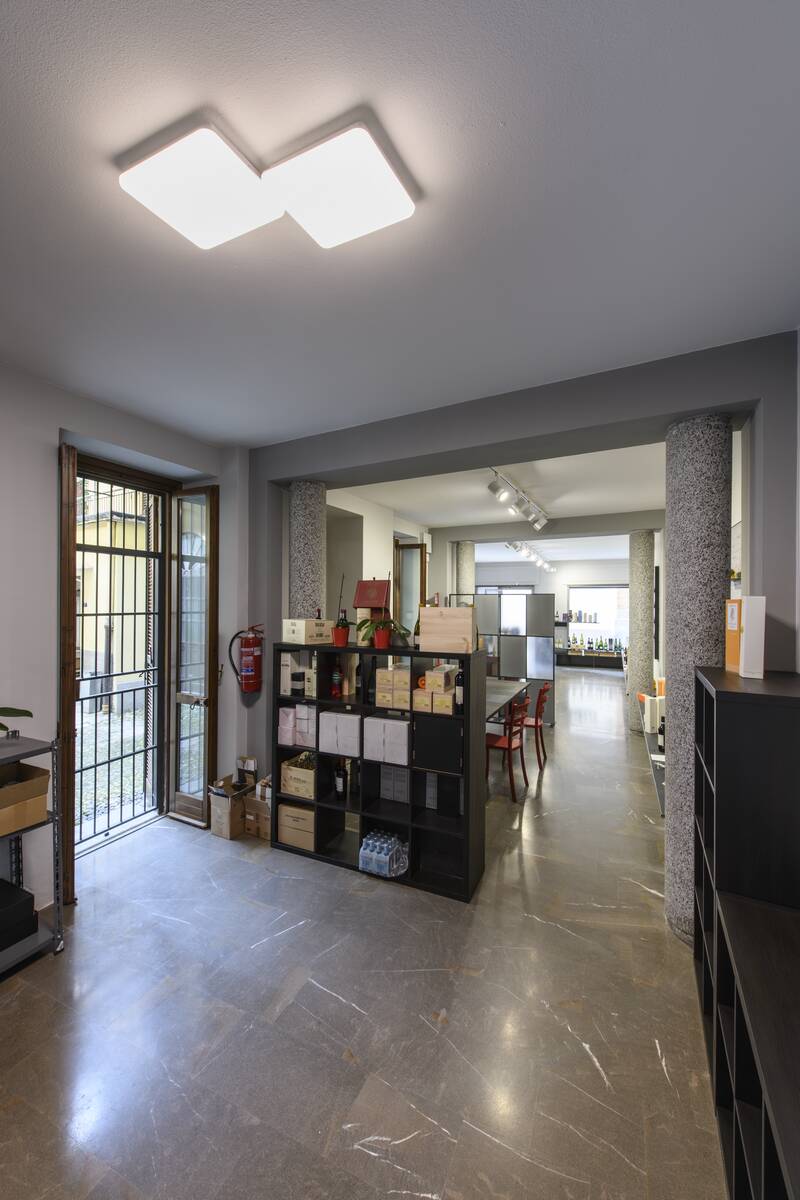

The SIMA is an indoor LED wall and ceiling surface-mounted luminaire with a square design and a colour temperature of 3000 K. It is suitable for use in indoor spaces, such as residential or work areas, and offers dimmable light control via phase-cut dimming. The luminaire provides a luminous flux of 2200 lumens and a declared service life of 30,000 hours. The housing is made of polycarbonate, ensuring a robust and durable construction. With dimensions of 30 x 30 cm and a height of 5.8 cm, it is compact and unobtrusive to install. The IP44 rating provides protection against splashing water, while the IK02 impact resistance class offers protection against light mechanical impacts.

Tehnilised andmed

Half beam angle	120 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	2200 lm
electrical power	24 W
CRI	90
Net weight	1.329 kg
Height	5.8 cm
Length	30 cm
Width	30 cm
IP Code	IP44
Service life	30000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	320 mA
Dimming options	TRAILING_EDGE
Variant Dimm options	Trailing edge
Number of through-wires	12
Ambient temperature	-25 °C
Shock resistance category	IK02
Material	polycarbonate (PC)
LED can be changed	LED lightsource not replaceable
Product name	SIMA
CCT Switch	No
DALI capable	No
Dimmable	Yes
Risk group	1
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Indoor, LED, Wall and ceiling
Sildid	LED ceiling light, LED wall light
