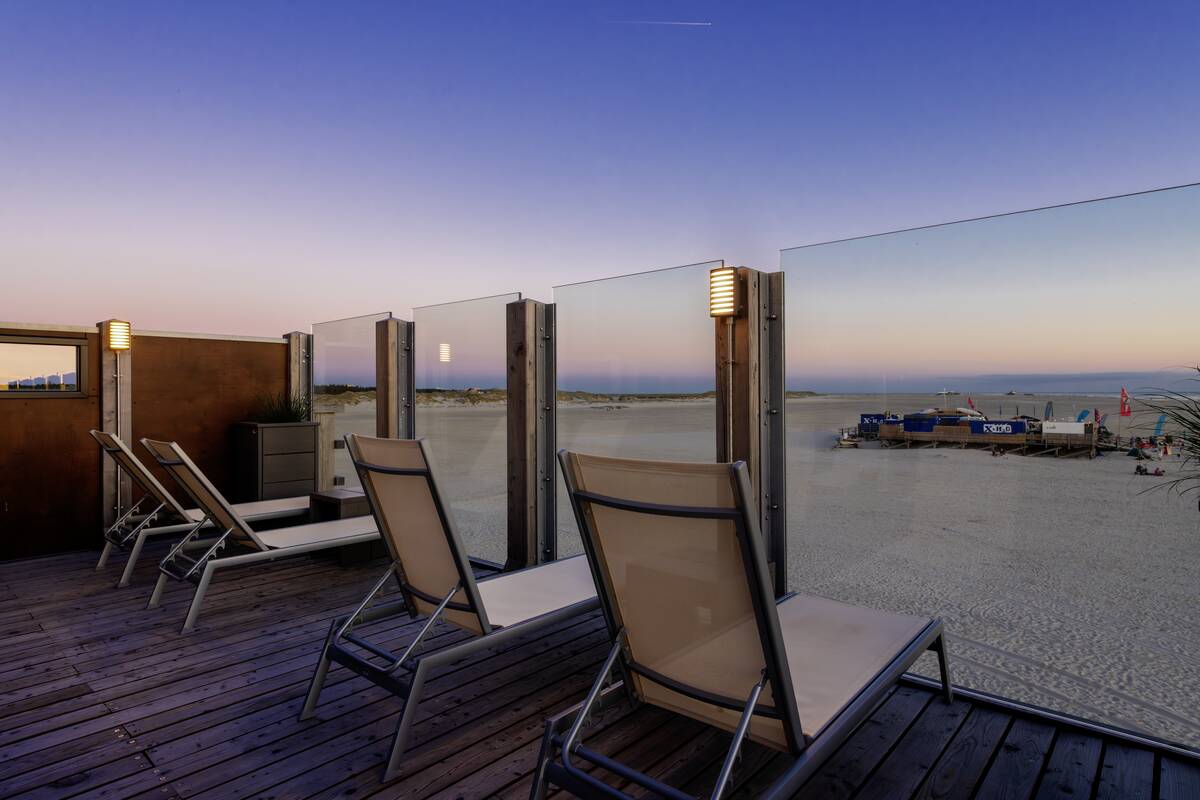

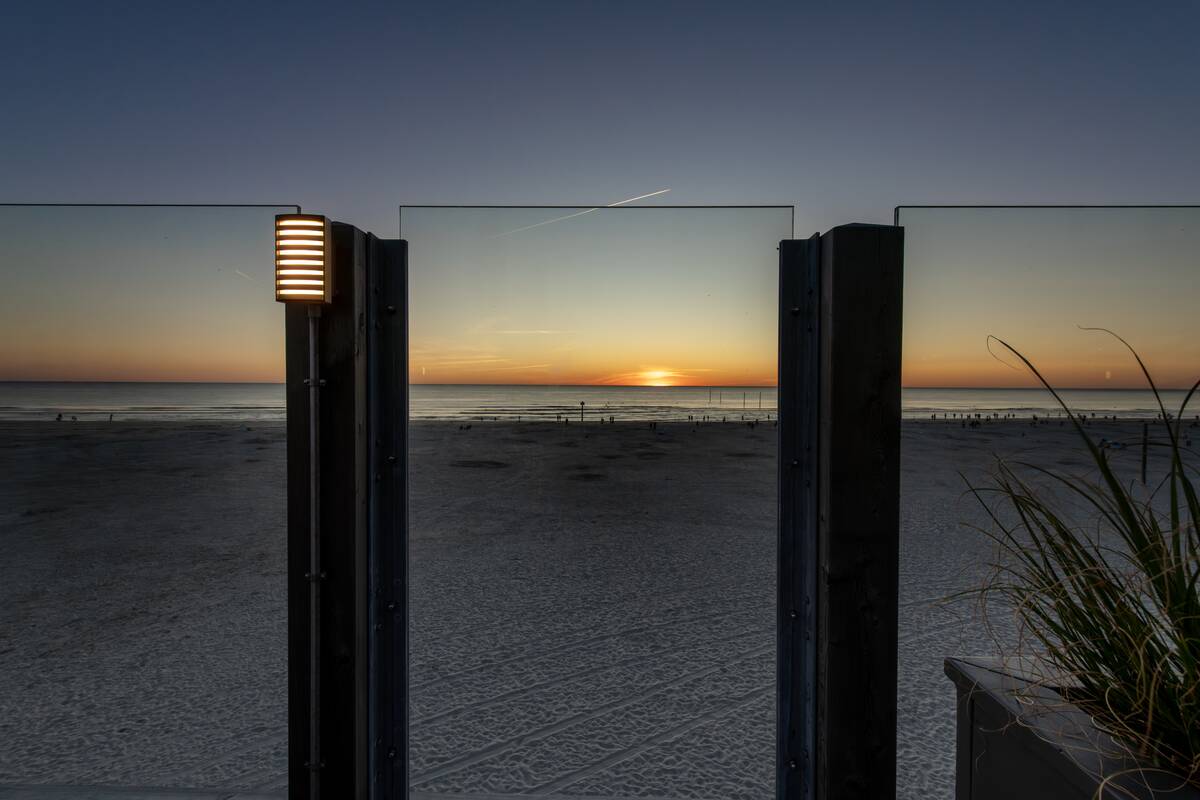

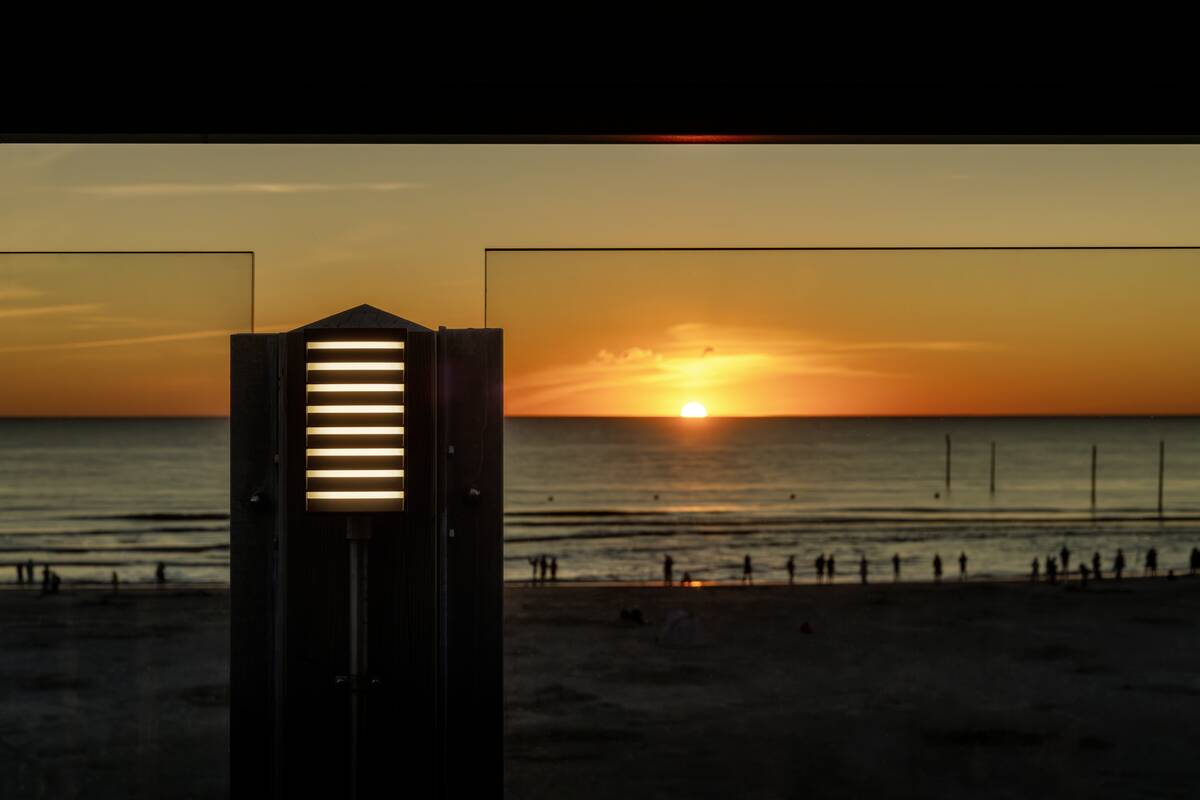

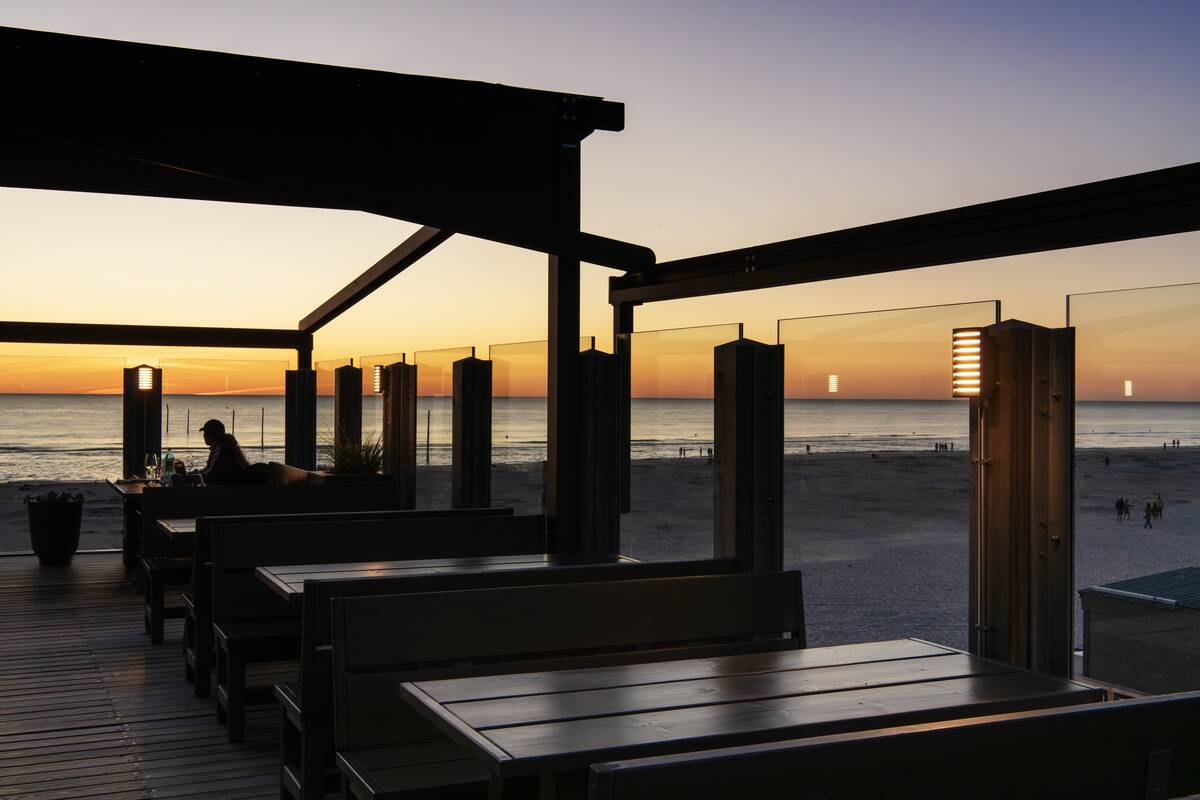

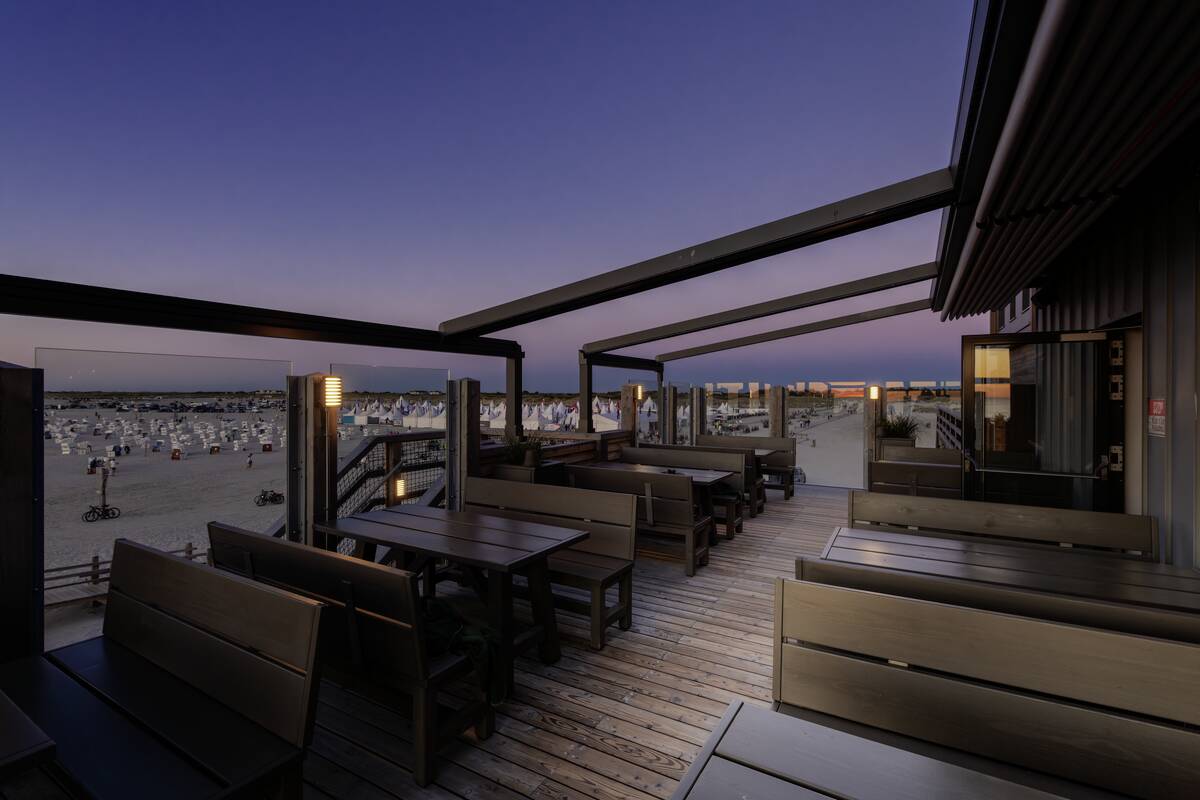

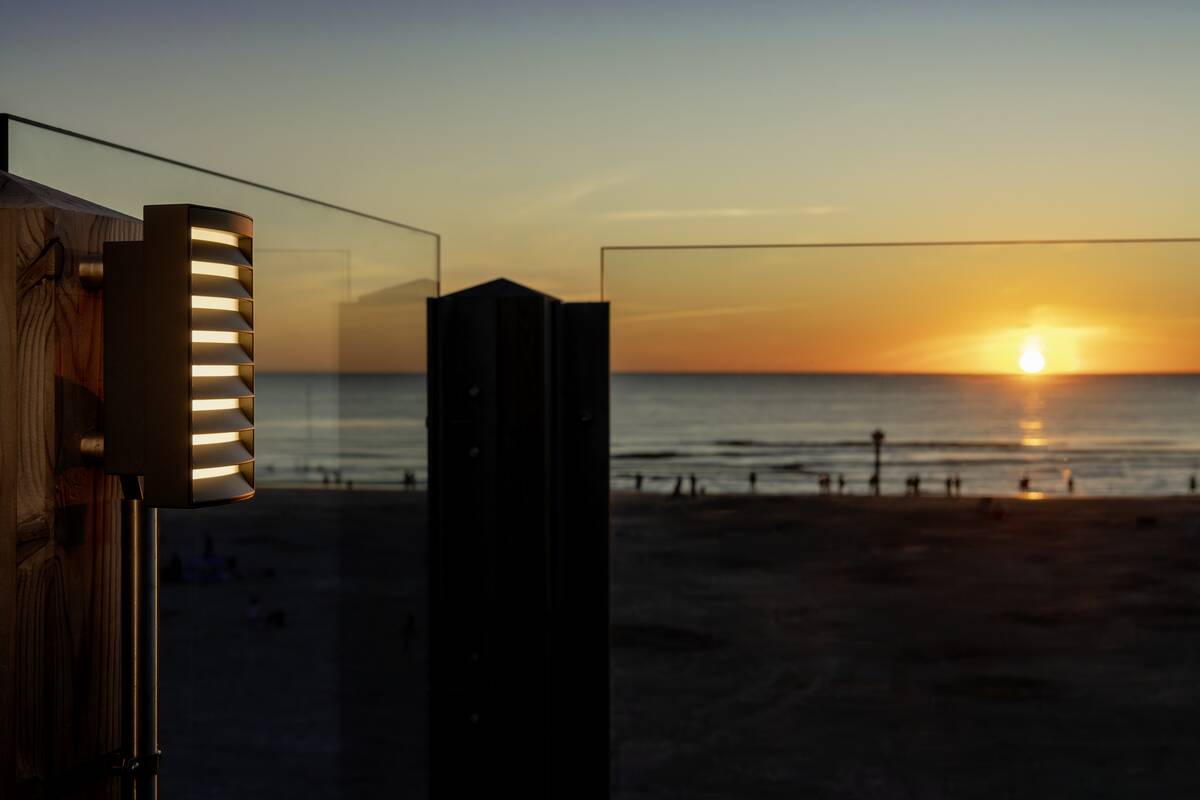

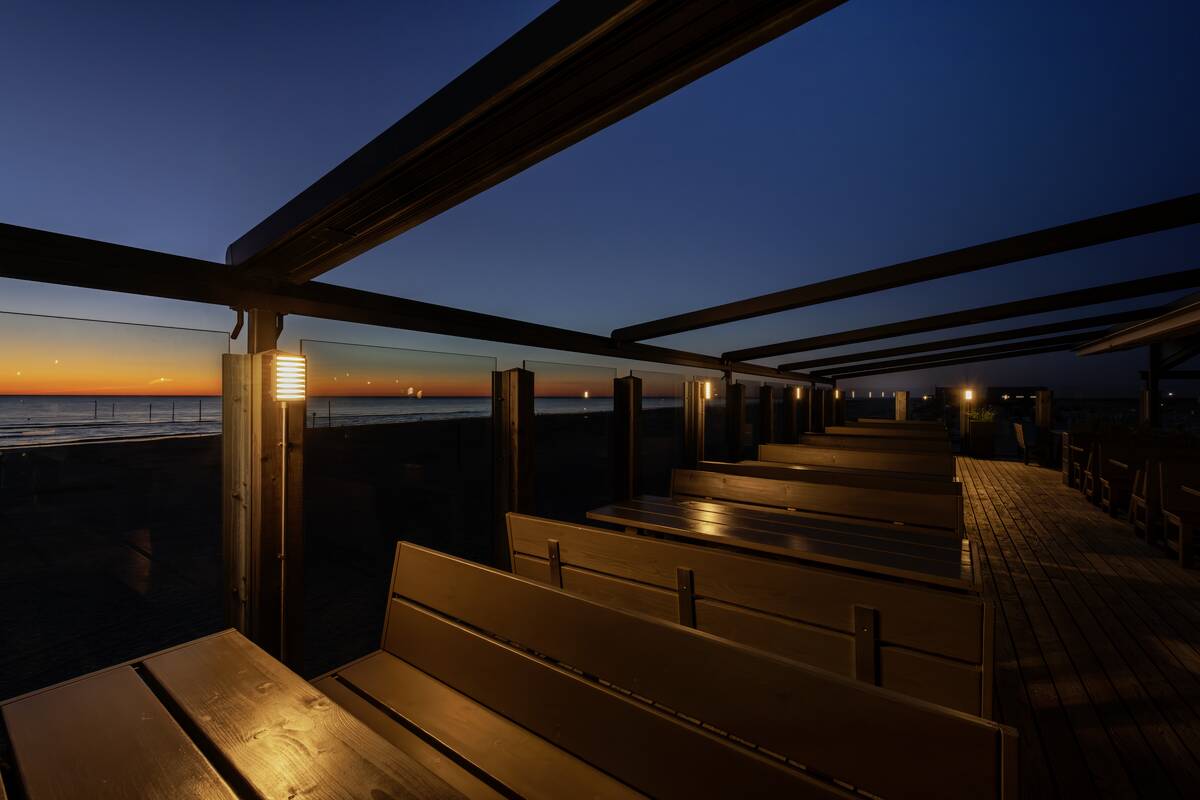

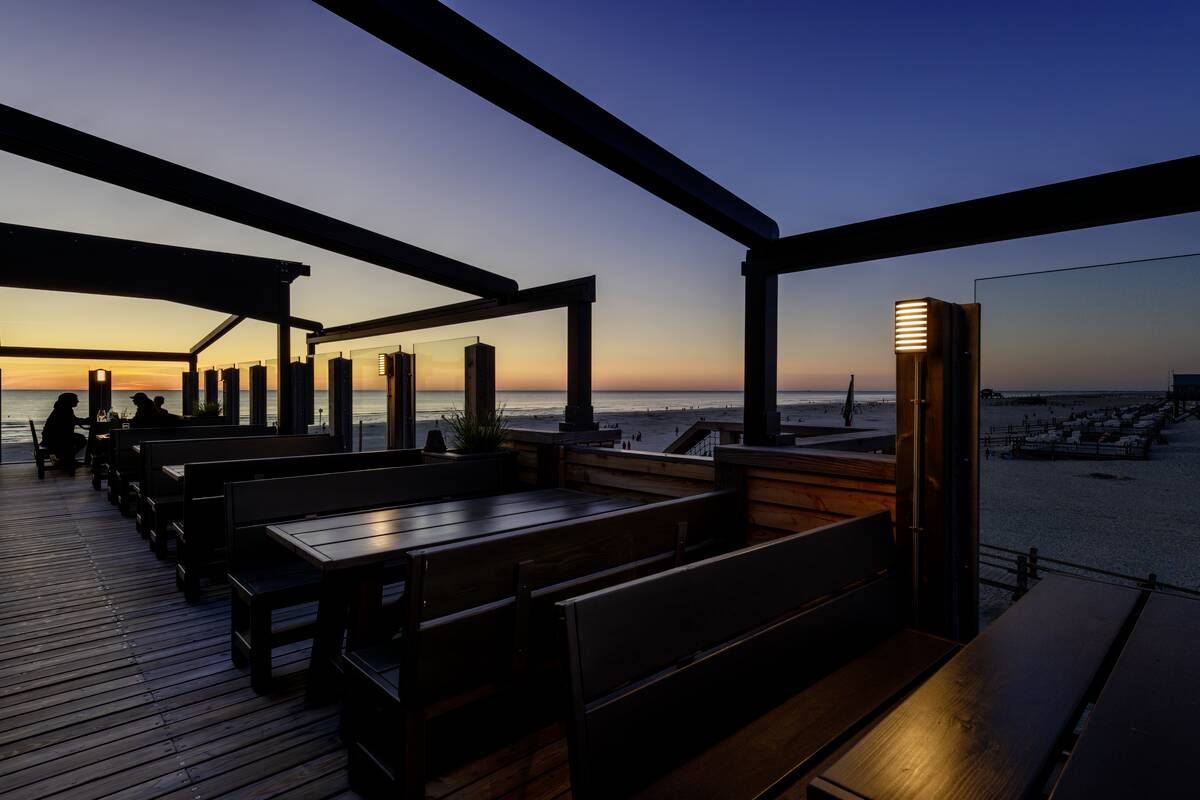

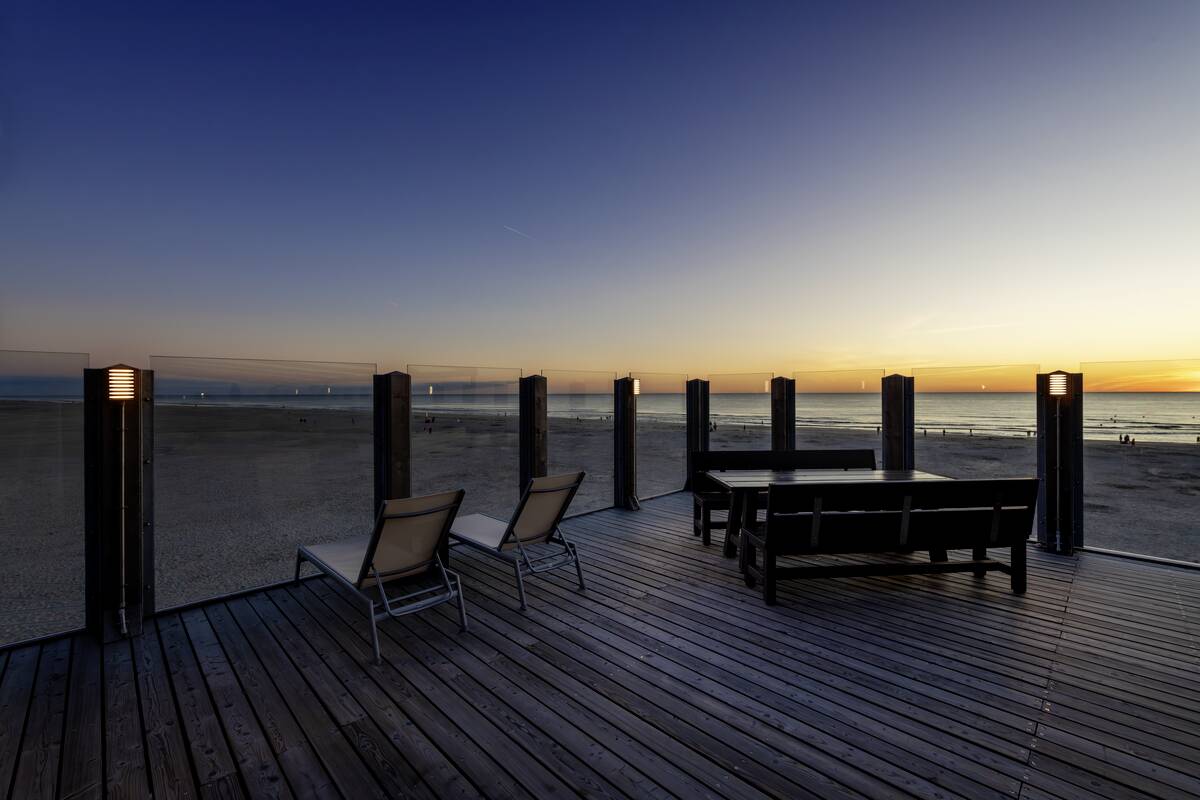

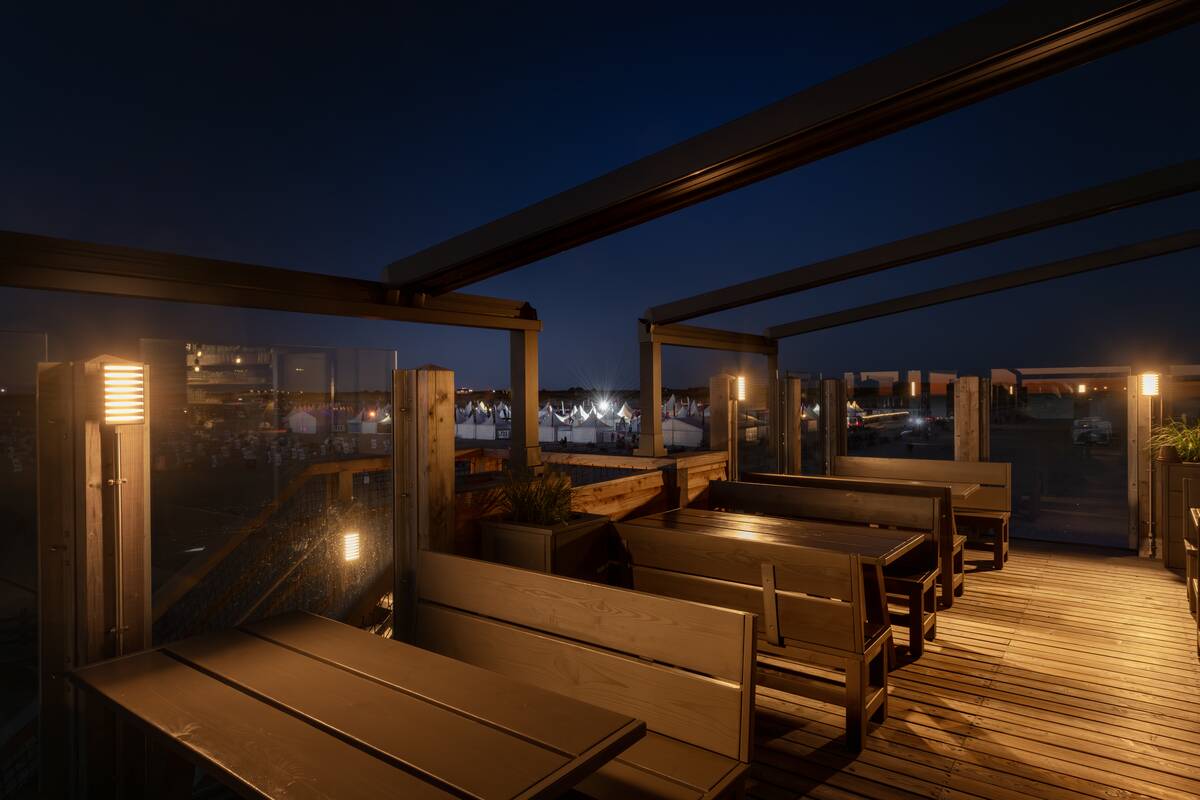

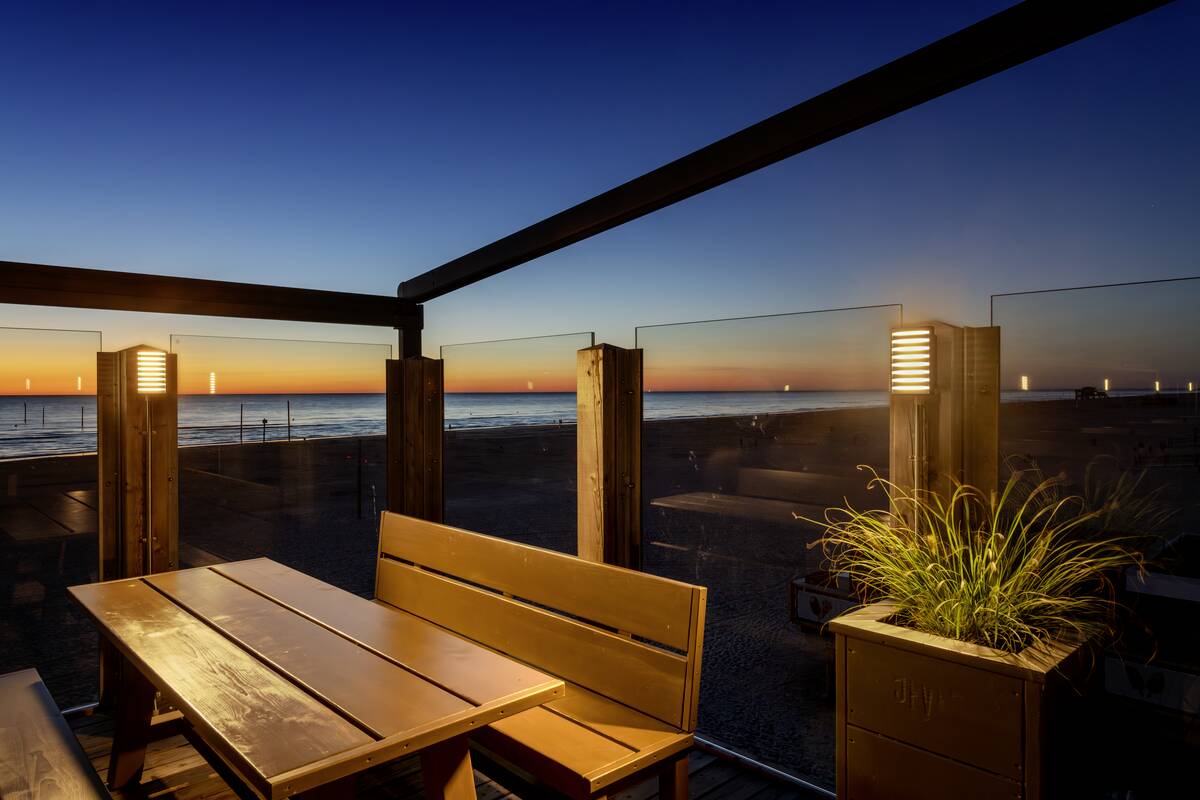

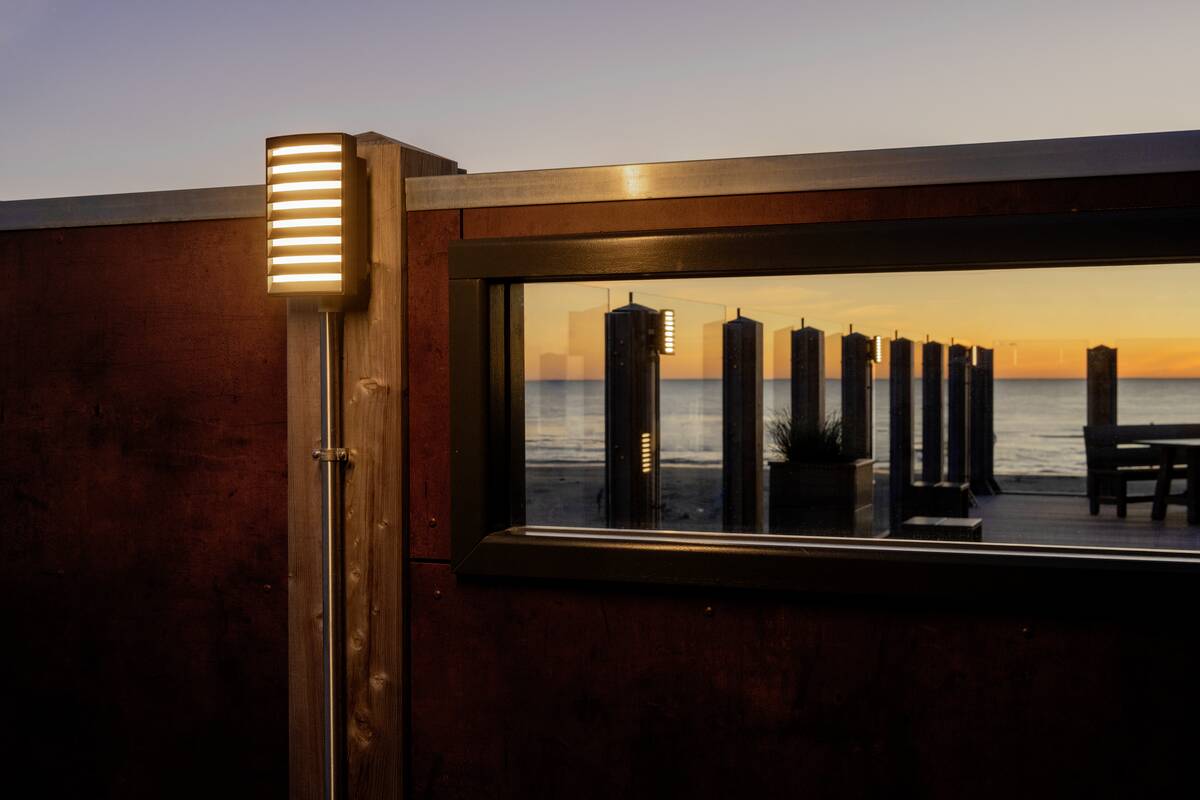

The RASTERLYS WL is a rectangular surface-mounted wall light suitable for use in indoor and protected outdoor areas. It features a colour temperature of 2700 or 3000 K, which must be set prior to installation, and offers a power output of 14 watts. The luminaire is equipped with both PHASE cut-on and cut-off dimming, allowing for flexible light control. The housing is made of aluminium and measures 21 cm in height, 12 cm in width, and 7.6 cm in depth. Light distribution is achieved with a beam angle of 70°. The luminaire is suitable for DC operation and has an IP65 protection rating as well as an impact resistance class of IK06. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	70 °
Colour	anthracite
Colour temperature	3000 Kelvin
Luminous Flux	400 lm
electrical power	14 W
CRI	80
Net weight	1.3 kg
Depth	7.6 cm
Height	21 cm
Width	12 cm
IP Code	IP65
Service life	50000 h
Luminous flux	350 / 400 lm
Primary nominal voltage	220-240V ~ 0/50/60Hz
Secondary power / secondary voltage	350 mA
Light outlet version	Bottom
Dimming options	LEADING_EDGE_AND_TRAILING_EDGE
Shape	rectangular
Glass temperature (light emission)	55 °C
Variant Dimm options	leading edge and trailing edge dimmable
Different light outlets	1
Number of through-wires	50
Seperate beams	Yes
Ambient temperature	-20 °C
Shock resistance category	IK06
Shock resistance	1 joule
Material	Aluminium
Product name	RASTERLYS
CCT Switch	Yes
Dimmable	Yes
Assembly	Surface
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Outdoor, Wall lights
