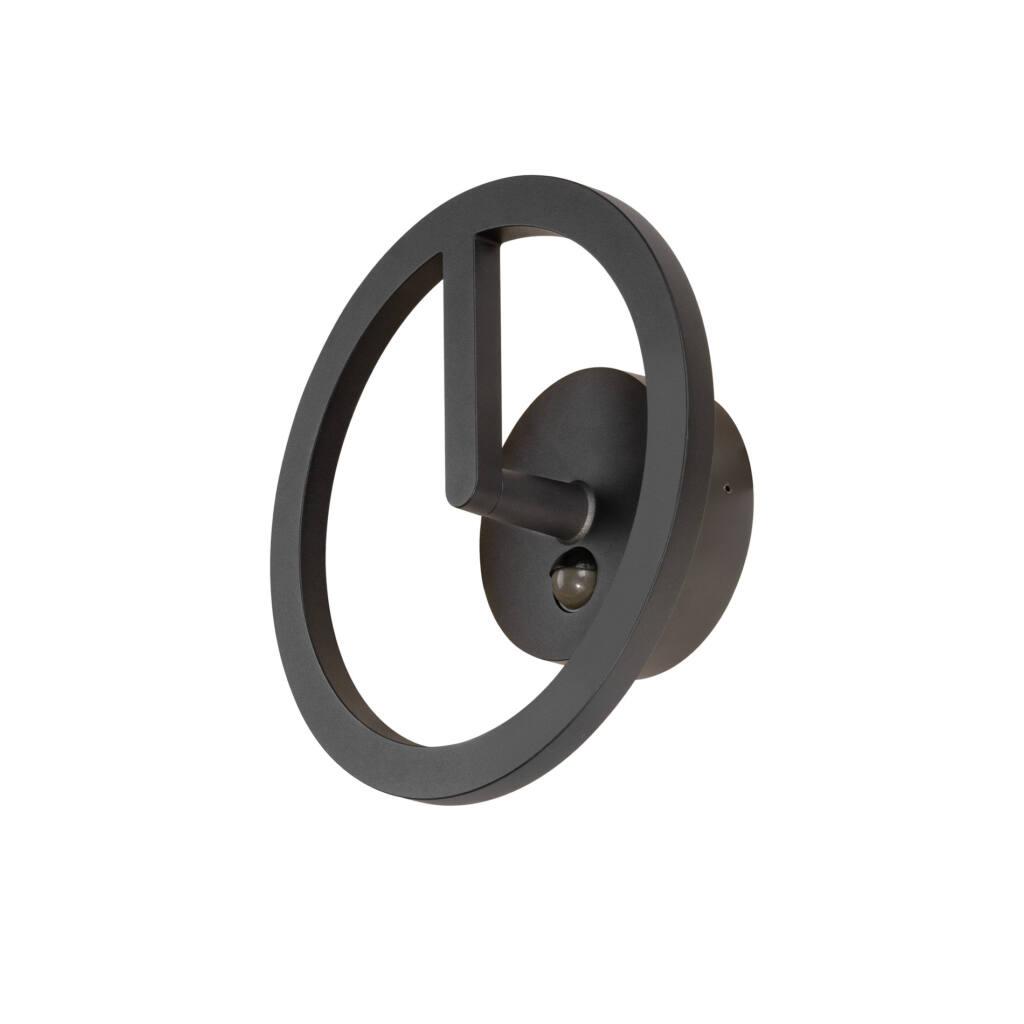

Q-RING

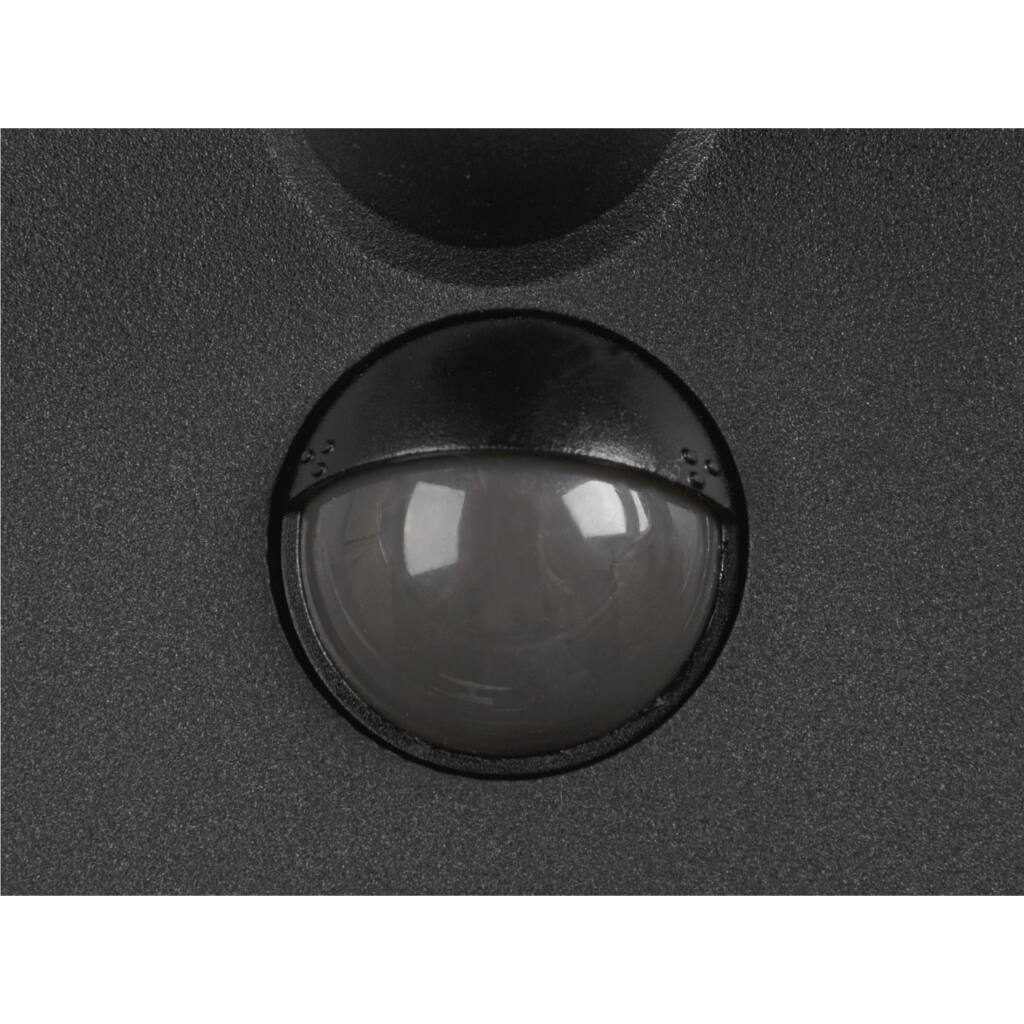

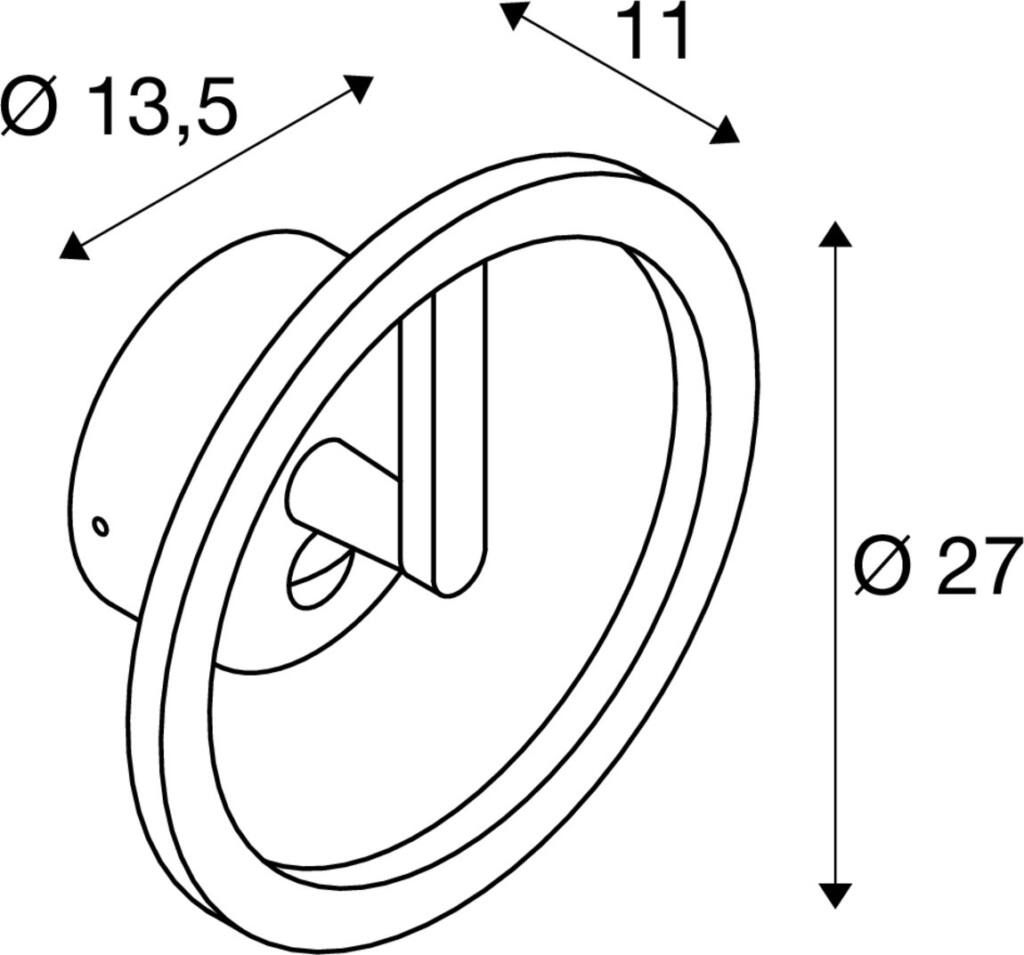

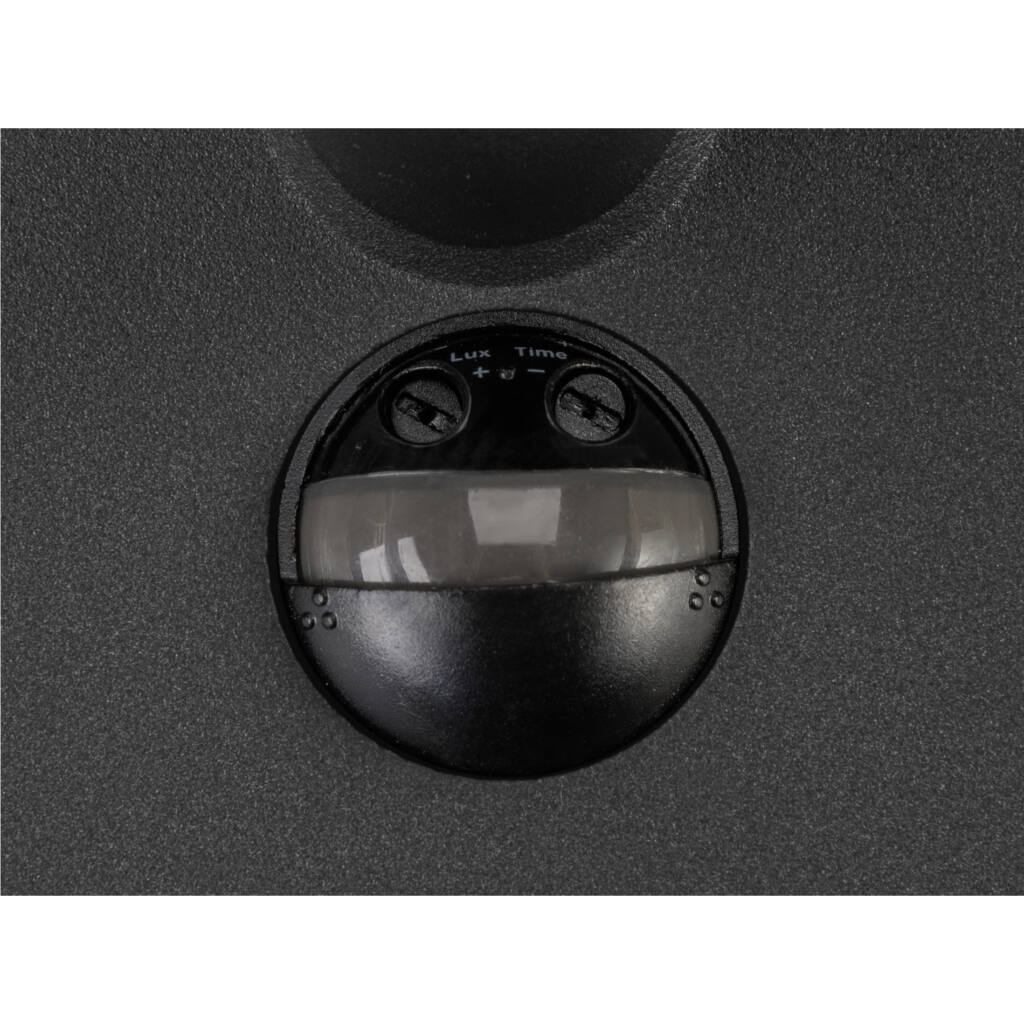

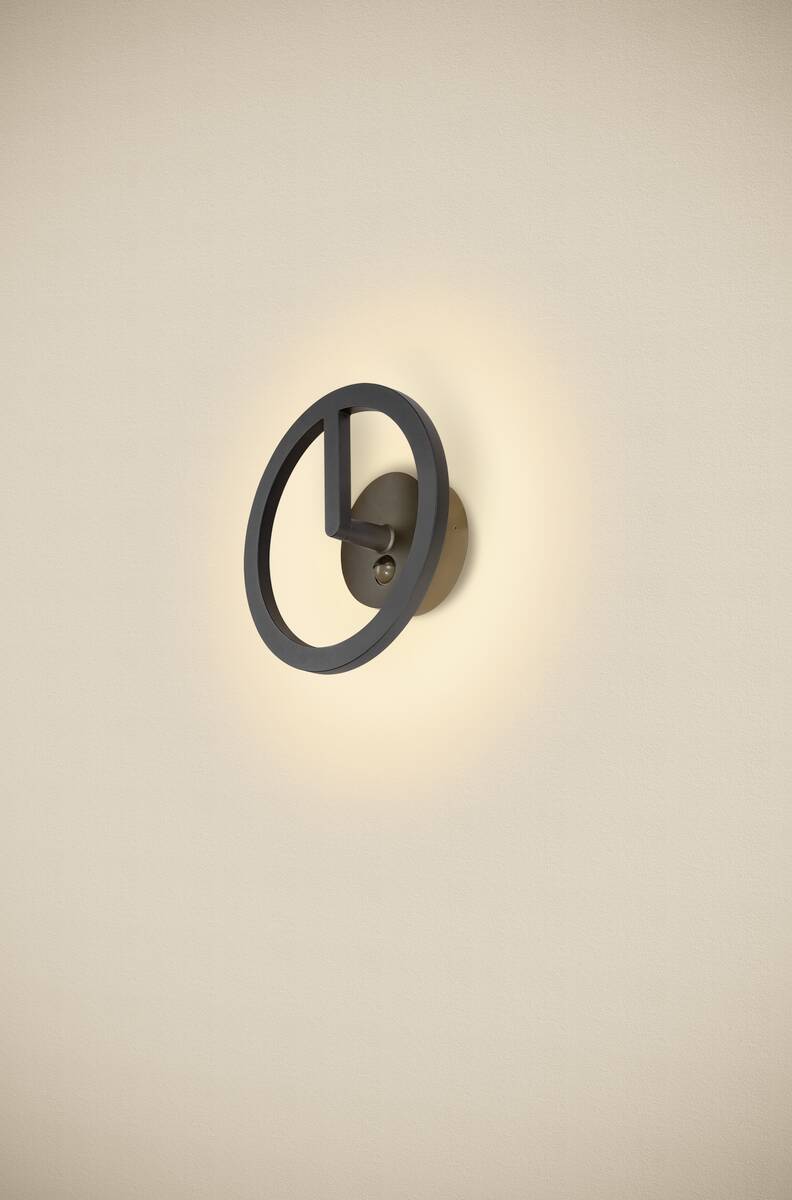

The Q-RING wall light is designed for wall mounting and is suitable for use in indoor and sheltered outdoor areas. It features an integrated PIR motion sensor with an adjustable detection range of 6 to 10 metres, as well as brightness and time control settings. The luminaire provides a light output of 950 lumens at a colour temperature of 3000 K. The housing is made of aluminium and plastic, protected to IP54 against dust and splashing water, and has an impact resistance rating of IK06. With a product depth of 11 cm and a diameter of 27 cm, the luminaire is compactly designed and allows for easy wall mounting. The declared service life is 30,000 hours.

Tehnilised andmed

Colour black
Colour temperature 3000 Kelvin
Luminous Flux 950 lm
electrical power 10 W
CRI 80
Net weight 1.068 kg
Diameter 27 cm
IP Code IP54
Service life 30000 h
Primary nominal voltage 220-240V ~ 50/60Hz
Secondary power / secondary voltage 240 mA
Glass temperature (light emission) 50 °C
Number of through-wires 20
Ambient temperature -20 °C
Shock resistance category IK06
Shock resistance 2 joule
Material Aluminium
Motion sensor Infrared passive
Product name Q-RING
CCT Switch No
Tehnilised failid Manual
Datasheet
CE declaration
Assembly drawings
REACh
Kategooriad LED, Outdoor, Surface mounted , Wall lights
