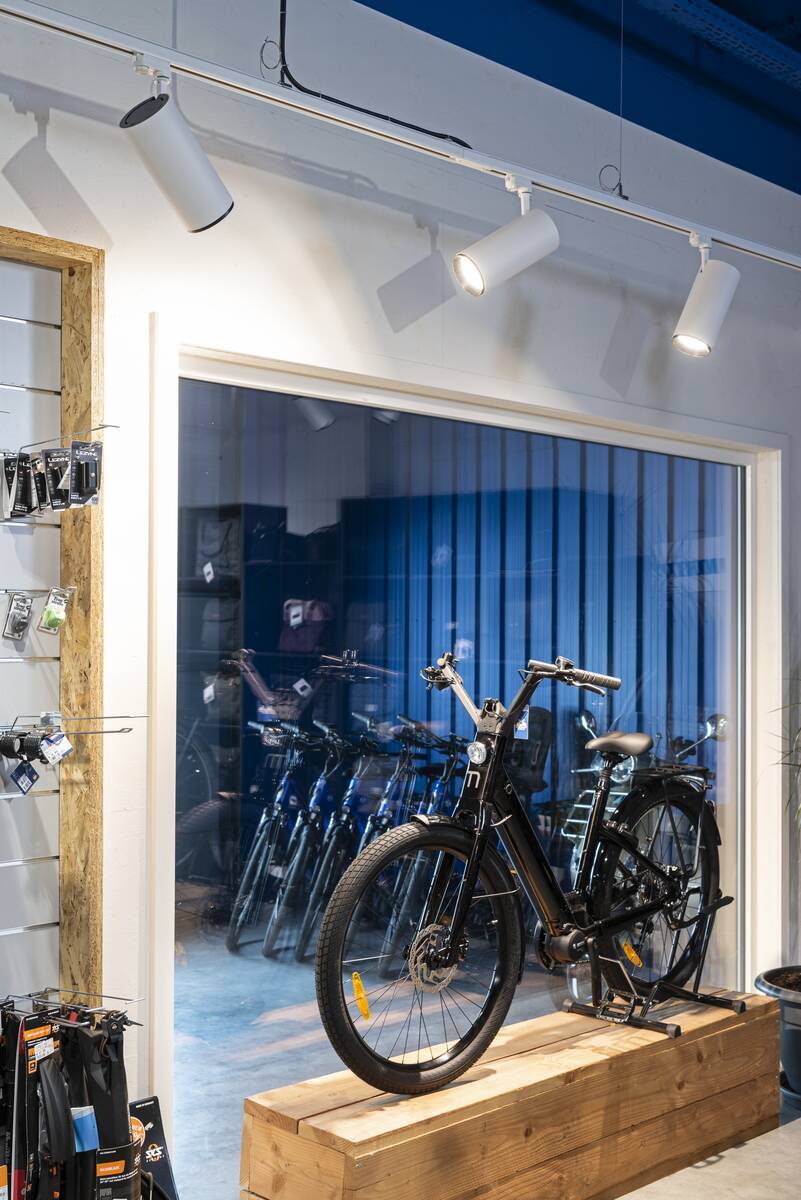

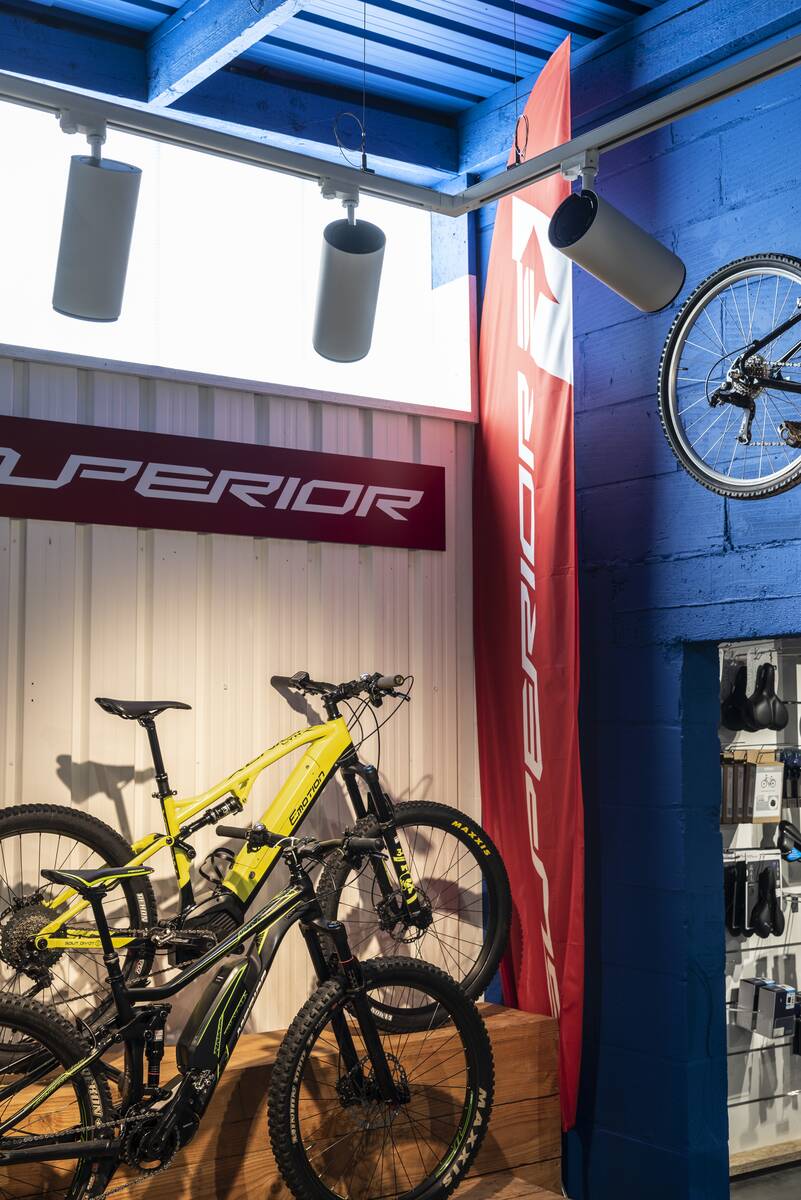

The NUMINOS® XL 3Ph. spot is a cylindrical 3-phase spotlight designed for installation in ceiling track systems. It is particularly suitable for indoor use where directional lighting is required. With a luminous flux of 3900 lumens at 28 watts and a colour temperature of 4000 K, the spot provides neutral white illumination. The beam angle is 36°, allowing precise light control. The housing is made of aluminium and is available in matt white or matt black. The luminaire has a product height of 18.5 cm, a diameter of 12 cm, and a length of 25.8 cm. The spot features trailing edge phase-cut dimming and is rated IP20.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	3900 lm
electrical power	28 W
CRI	90
Net weight	1.635 kg
Diameter	12 cm
Height	18.5 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
