The NUMINOS® XL 3Ph. spot is a cylindrical 3-phase spotlight designed for ceiling track system mounting. It is particularly suitable for indoor use where targeted lighting is required. The light source delivers a luminous flux of 3150 lumens at a colour temperature of 2700 K and a beam angle of 60°. Dimming is carried out via phase-cut control. The housing is made of aluminium and is available in matt white or matt black. With a length of 25.8 cm, a diameter of 12 cm, and a height of 18.5 cm, the luminaire is compactly sized. The IP20 rating provides basic protection against contact and the ingress of foreign objects. The declared service life is 50,000 hours.

Tehnilised andmed

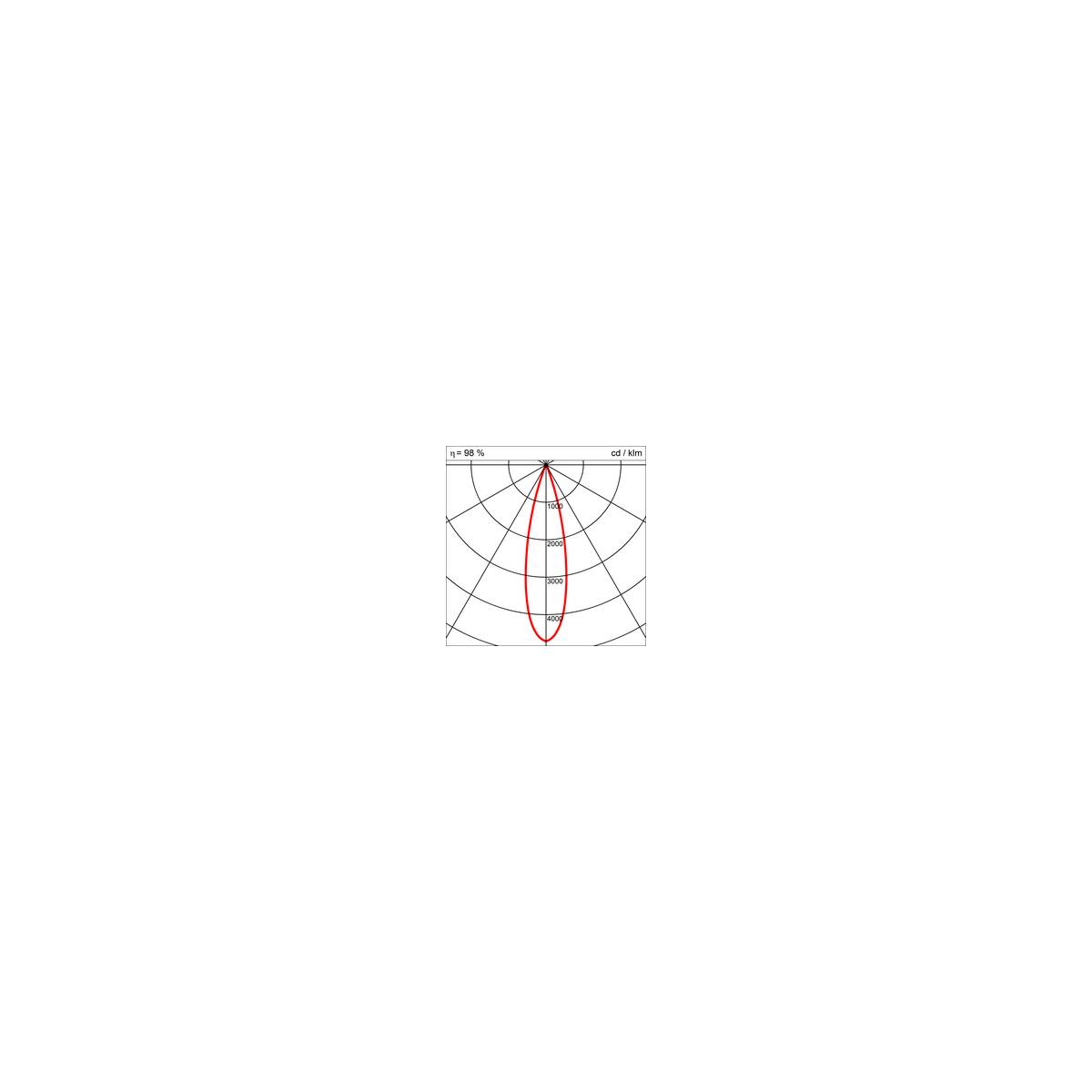

Half beam angle	60 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	3150 lm
electrical power	28 W
CRI	90
Net weight	1.635 kg
Diameter	12 cm
Height	18.5 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	Ceiling light, Dimmable, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
