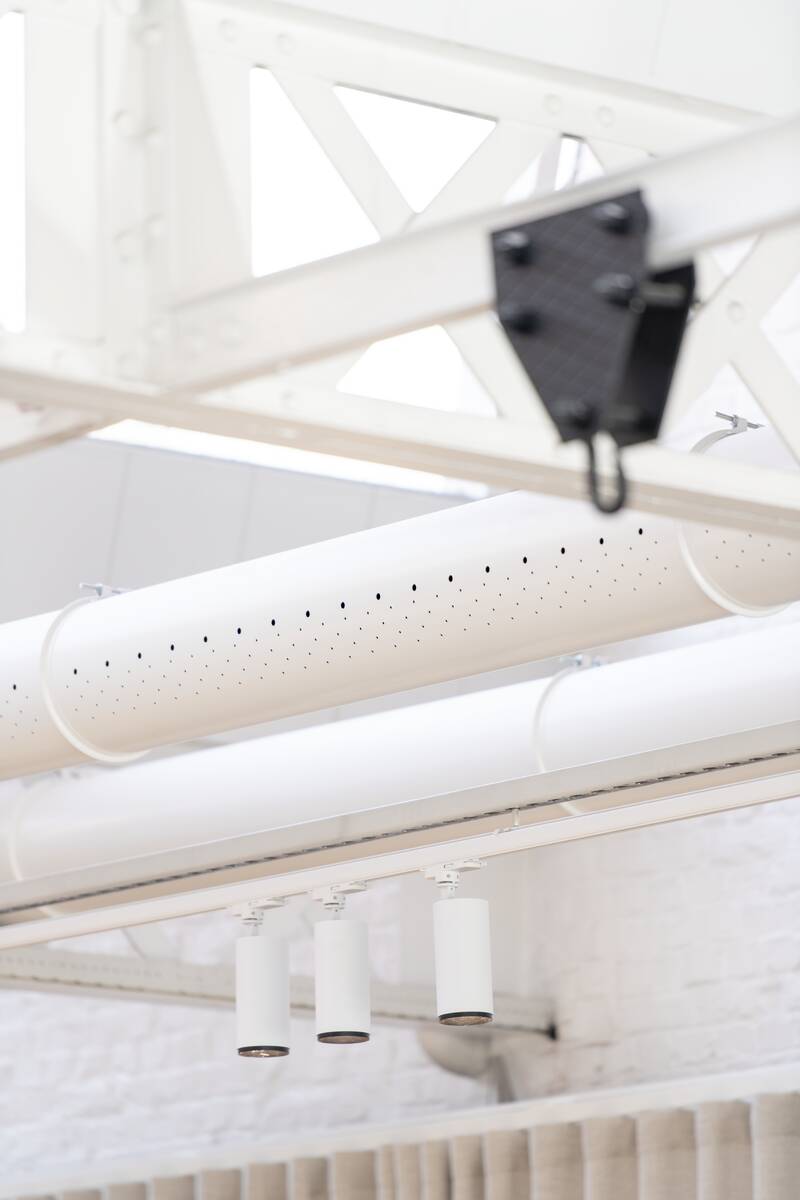

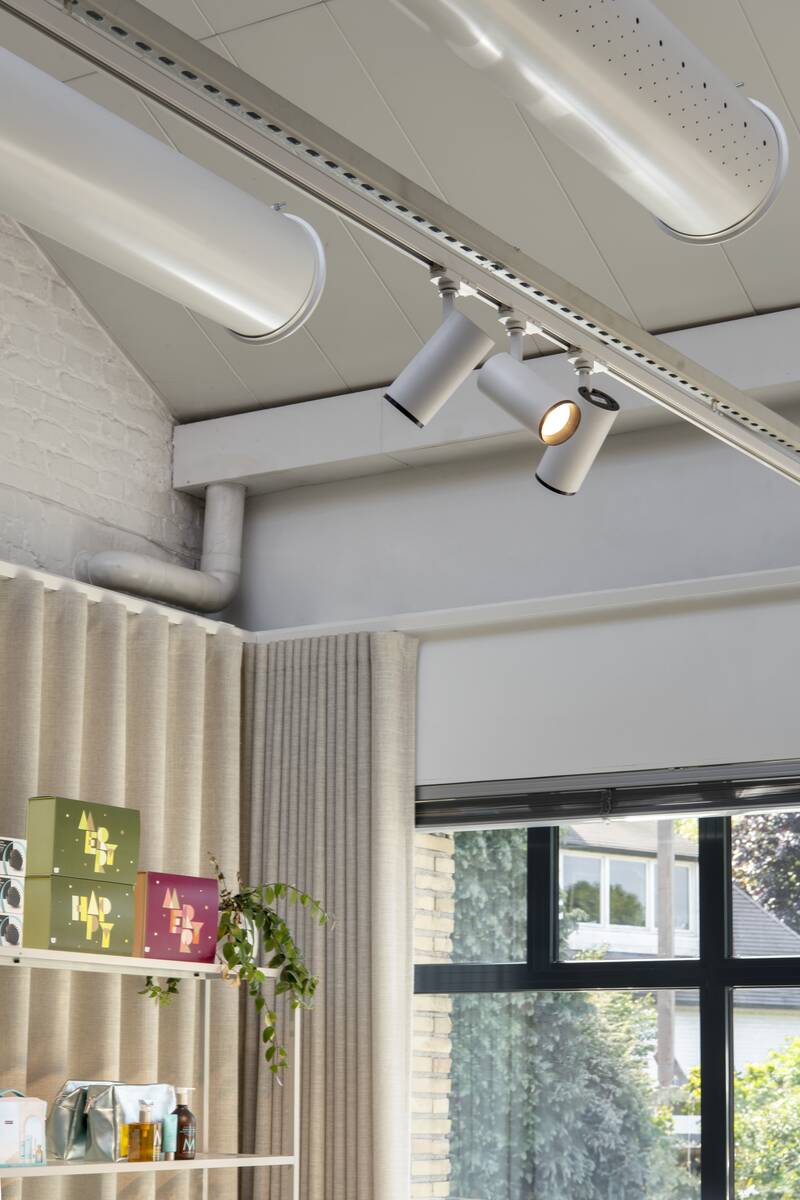

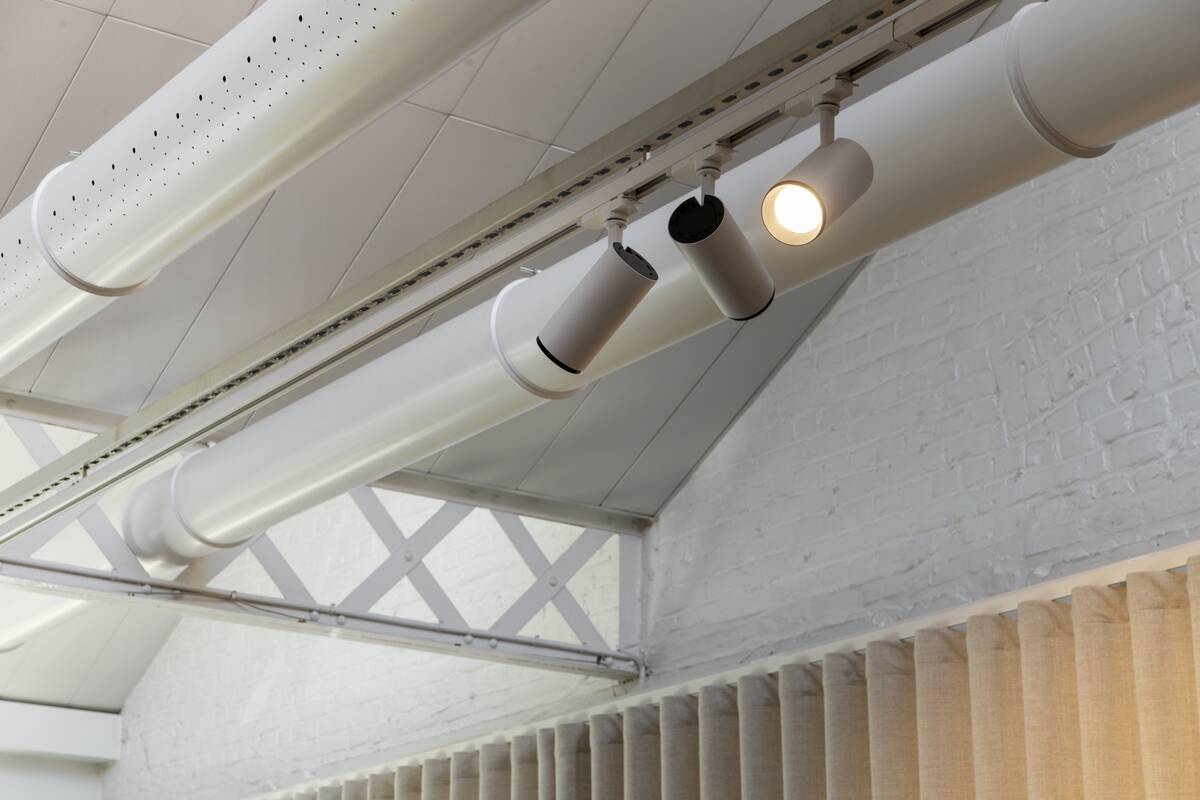

The NUMINOS® XL 3-Phasen Spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where targeted lighting is required. With a luminous flux of 3550 lumens at 28 watts and a colour temperature of 2700 Kelvin, it produces warm white light with a beam angle of 36 degrees. The housing is made of aluminium and is available in matt white or matt black. Dimming is achieved via phase-cut control (Trailing Edge). The spotlight measures 25.8 cm in length, has a diameter of 12 cm, and a height of 18.5 cm. The IP20 rating provides protection against solid foreign objects but does not offer protection against water.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	3550 lm
electrical power	28 W
CRI	90
Net weight	1.635 kg
Diameter	12 cm
Height	18.5 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
