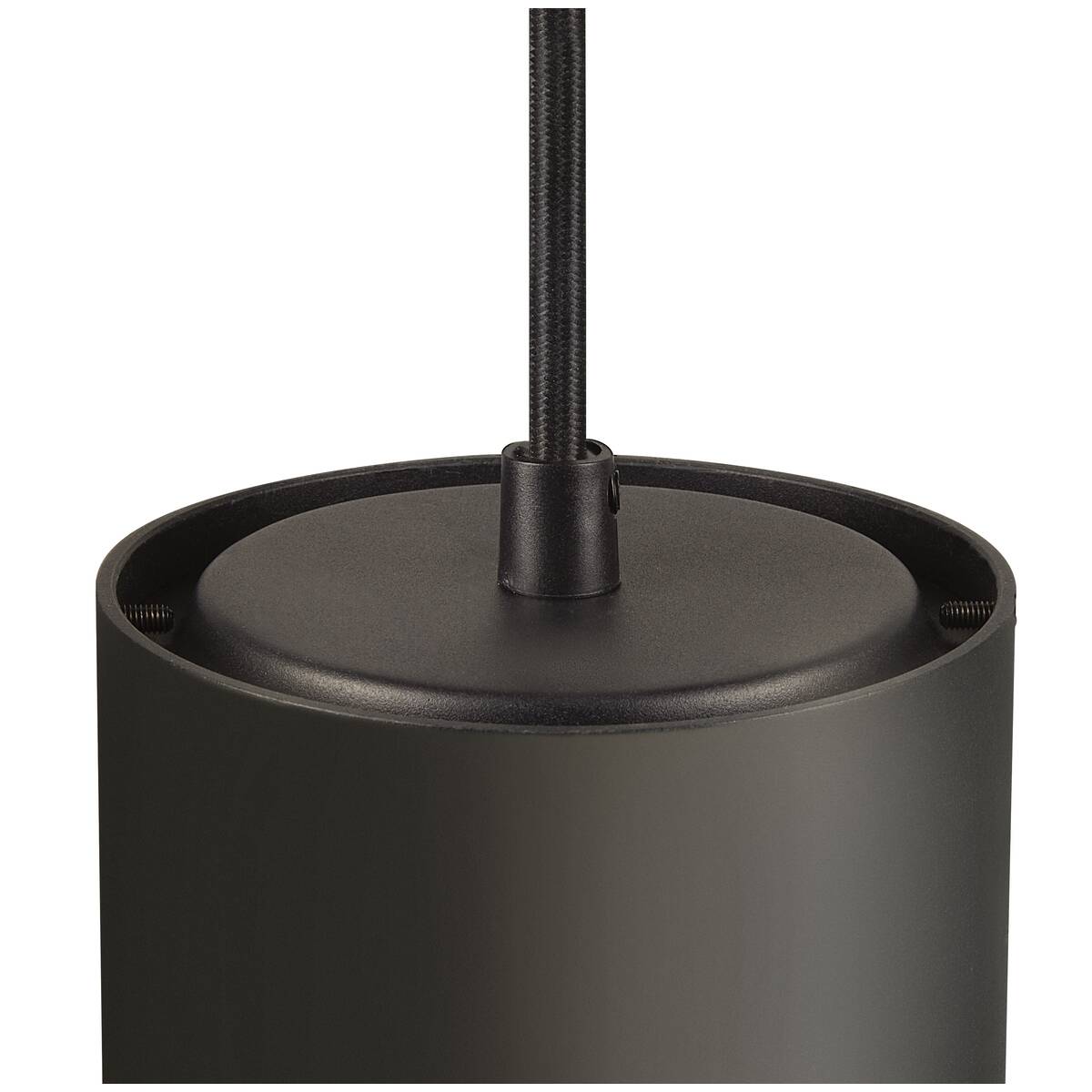

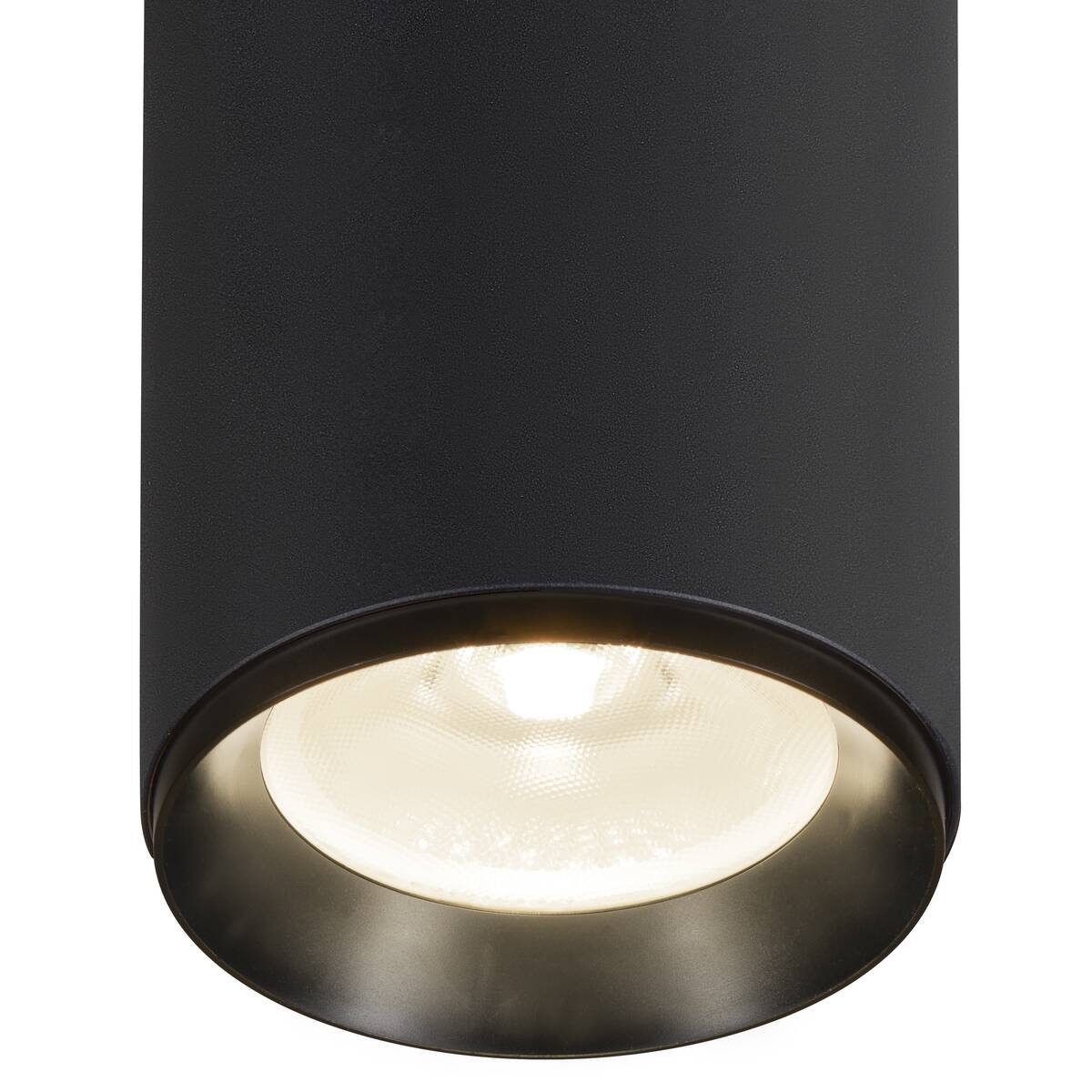

The NUMINOS® XL PD PHASE is a cylindrical pendant luminaire suitable for indoor lighting. It features a suspension length of 250 cm and a diameter of 12 cm. The luminaire is equipped with an LED light source delivering a luminous flux of 3900 lumens at a colour temperature of 4000 K. The light distribution is characterised by a beam angle of 24°. The housing is made of aluminium and aluminium/PC, ensuring a robust and durable construction. The luminaire includes PHASE-cut dimming, allowing for stepless brightness control. The canopy is designed in a round shape. The IP20 protection rating is intended for use in dry indoor environments. The declared LED lifetime is 50,000 hours.

Tehnilised andmed

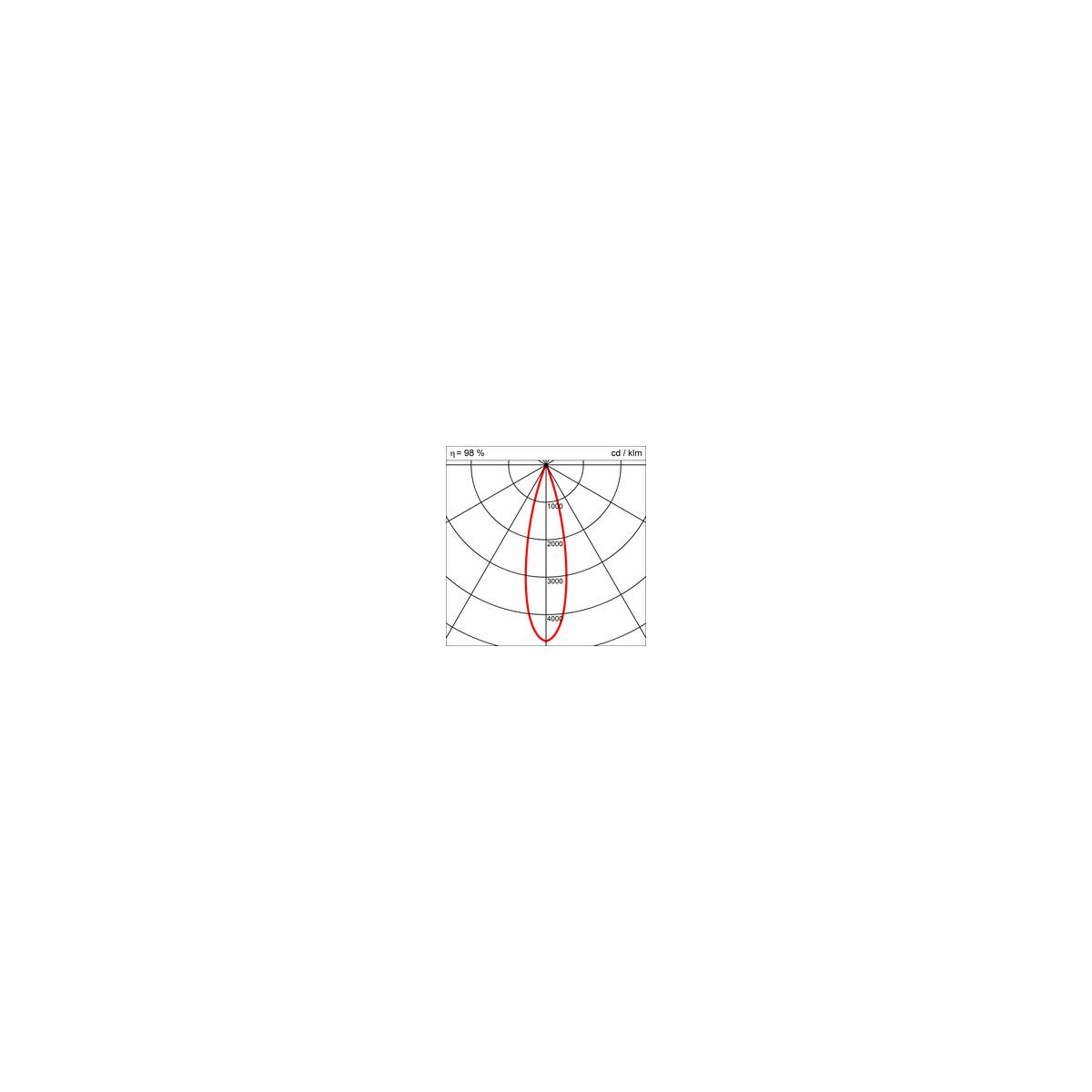

Half beam angle	24 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	3900 lm
electrical power	28 W
CRI	90
Net weight	1.878 kg
Diameter	12 cm
Height	25.8 cm
Pendant length	250 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Pendant lights
Sildid	Ceiling light, Dimmable, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
