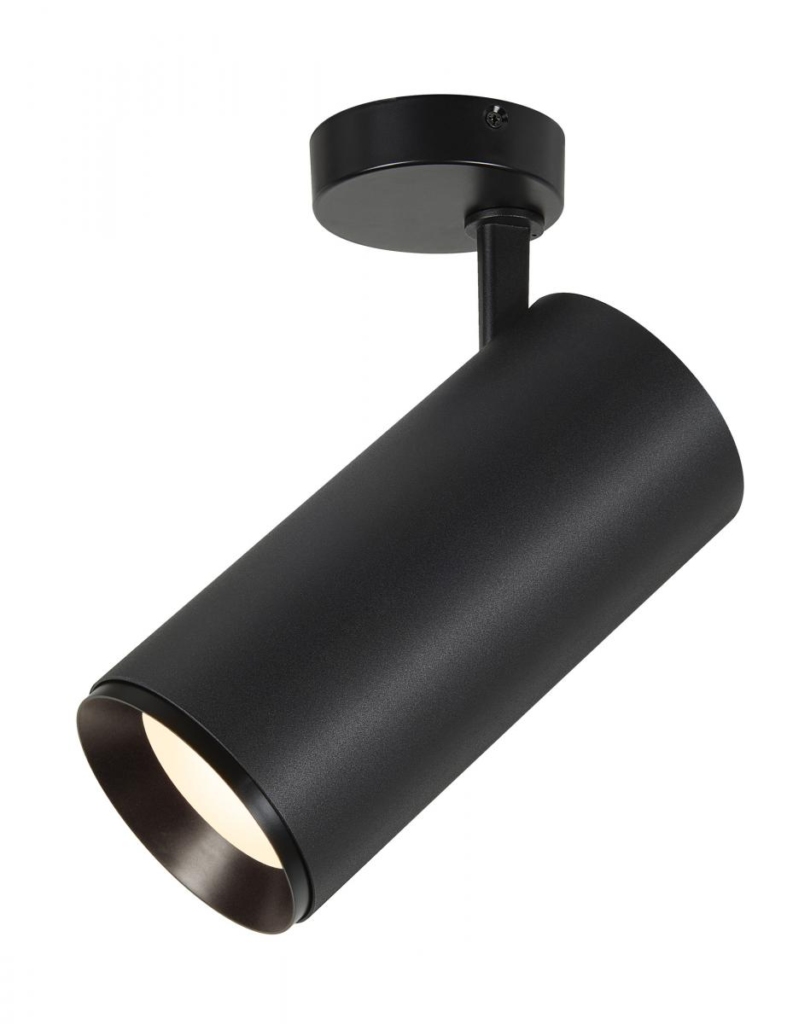

The NUMINOS® XL SPOT is a surface-mounted ceiling luminaire designed for indoor use. It features a cylindrical design with a diameter of 12 cm and a height of 20 cm. The luminaire is equipped with a matt black aluminium housing and delivers a luminous flux of 3500 lumens at a colour temperature of 4000 K. The beam angle is 60°, allowing for targeted illumination. Dimming is carried out via phase-cut (Trailing Edge). The luminaire has an IP20 protection rating and is designed for a long service life of up to 50,000 hours. The round canopy facilitates ceiling mounting.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	3500 lm
electrical power	28 W
CRI	90
Net weight	1.676 kg

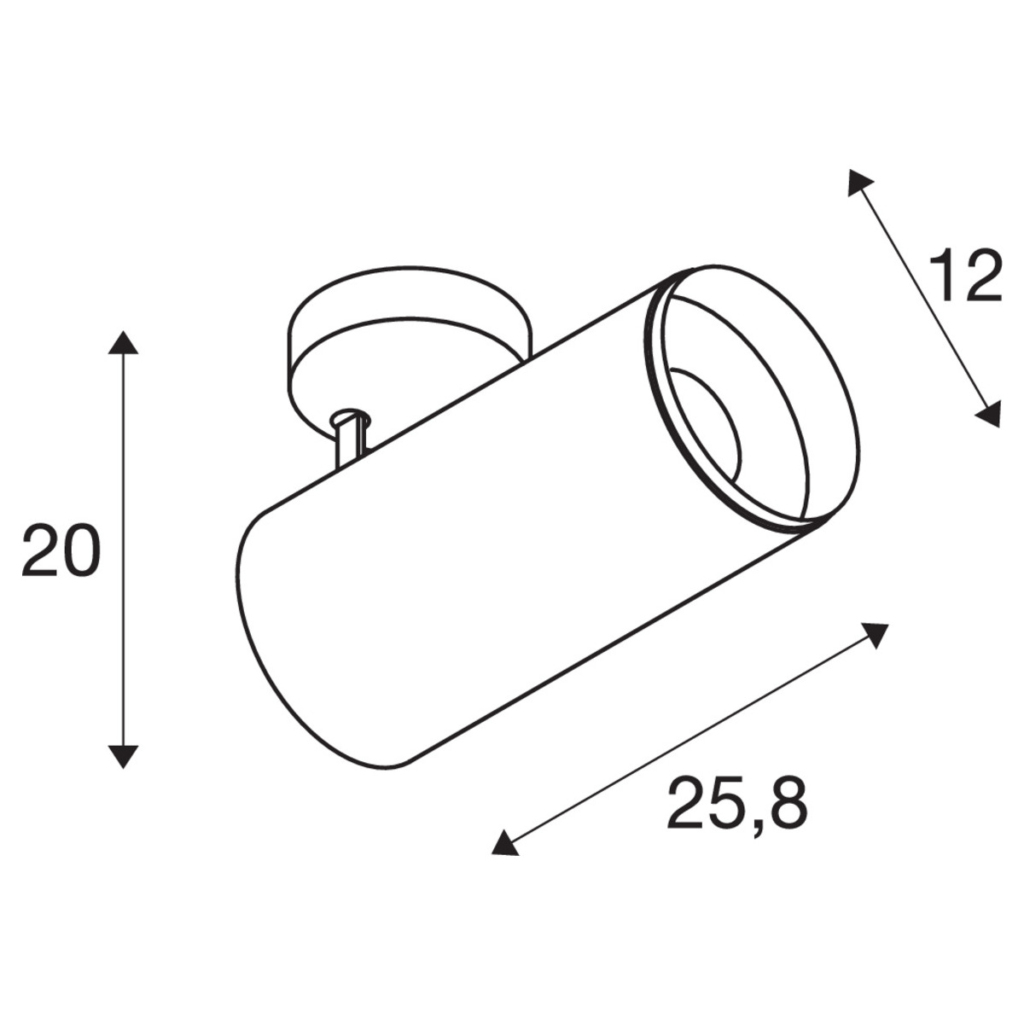

Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, Dimmable, Downlight, Indoor lamp, Indoor lighting, LED, LED-Downlight, Recessed ceiling light, Spotlight
