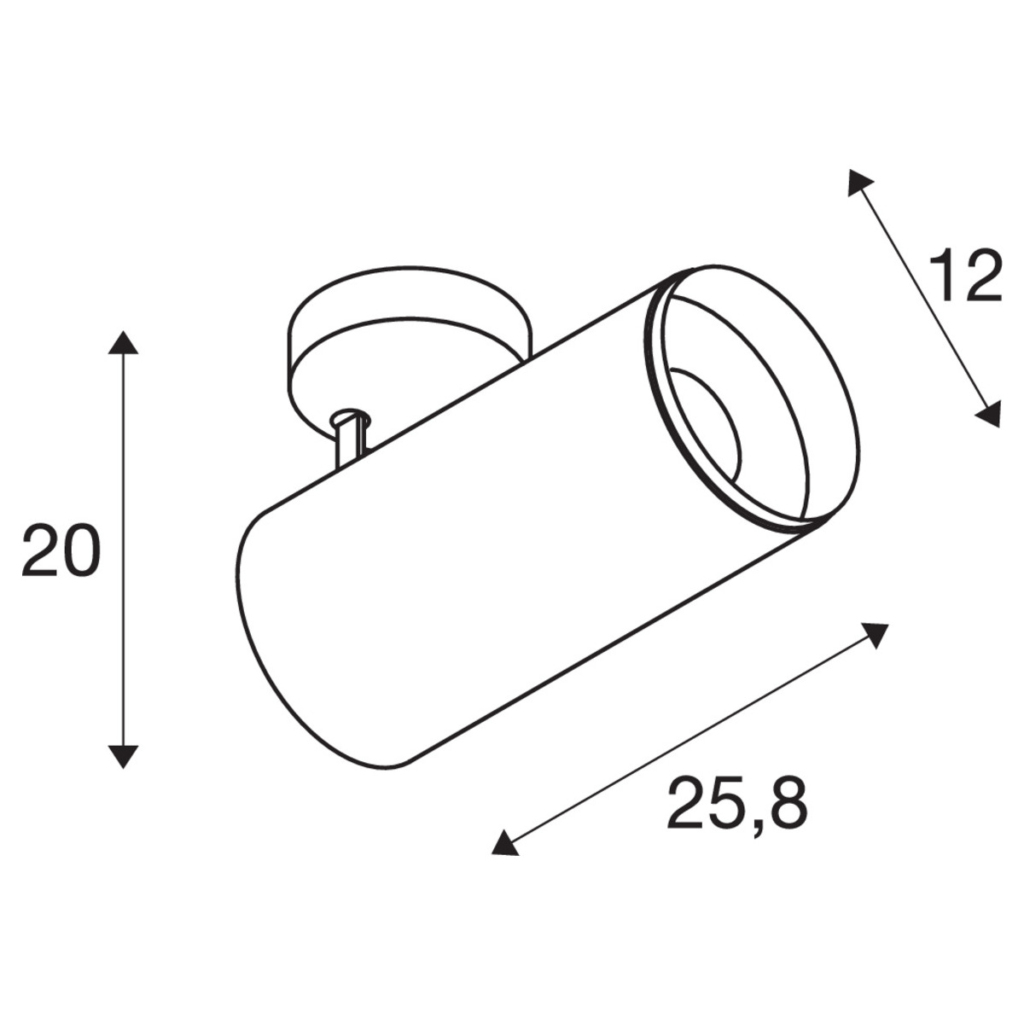

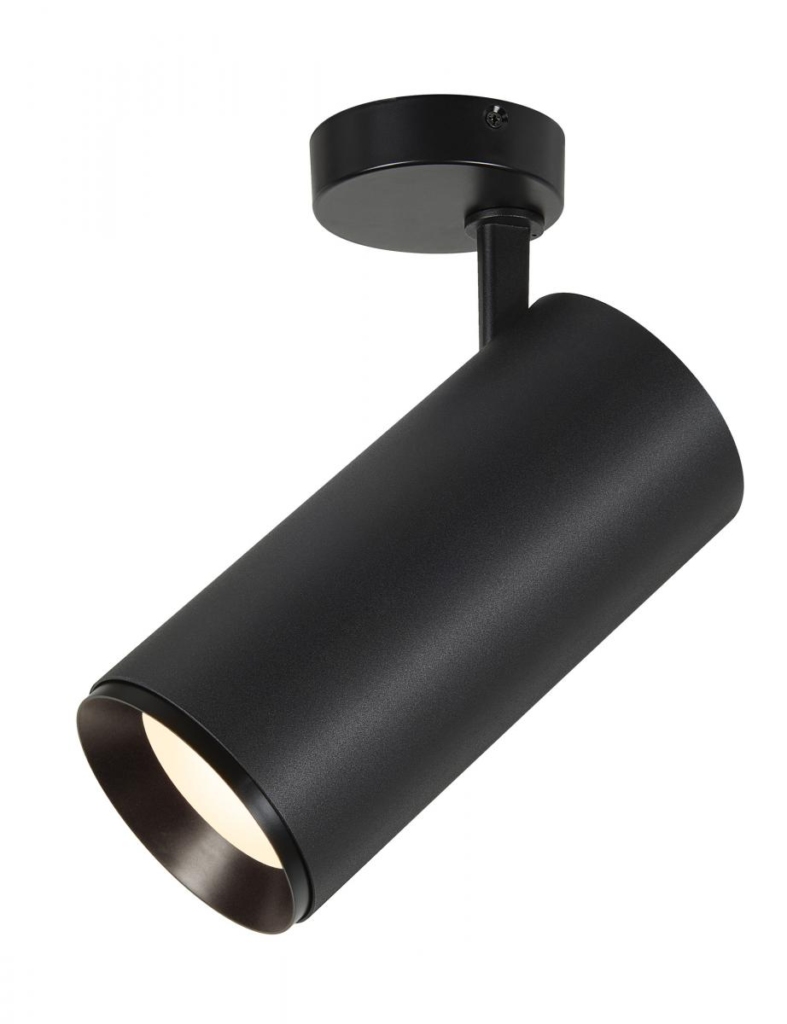

The NUMINOS® XL SPOT is a surface-mounted ceiling luminaire with a cylindrical design, primarily intended for indoor use. It features a colour temperature of 4000 K and a luminous flux of 3900 lumens at a power consumption of 28 watts. The luminaire has a beam angle of 36° and is equipped with PHASE-cut dimming, allowing flexible light control. The housing is made of aluminium and aluminium/PC, ensuring a stable and durable construction. With a diameter of 12 cm, a height of 20 cm, and a length of 25.8 cm, the luminaire is compactly designed. The IP20 protection rating makes it suitable for protected indoor areas. The round shape of the canopy supports discreet ceiling mounting.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	3900 lm
electrical power	28 W
CRI	90
Net weight	1.676 kg
Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, Dimmable, Downlight, Indoor lamp, Indoor lighting, LED, LED-Downlight, Recessed ceiling light, Spotlight
