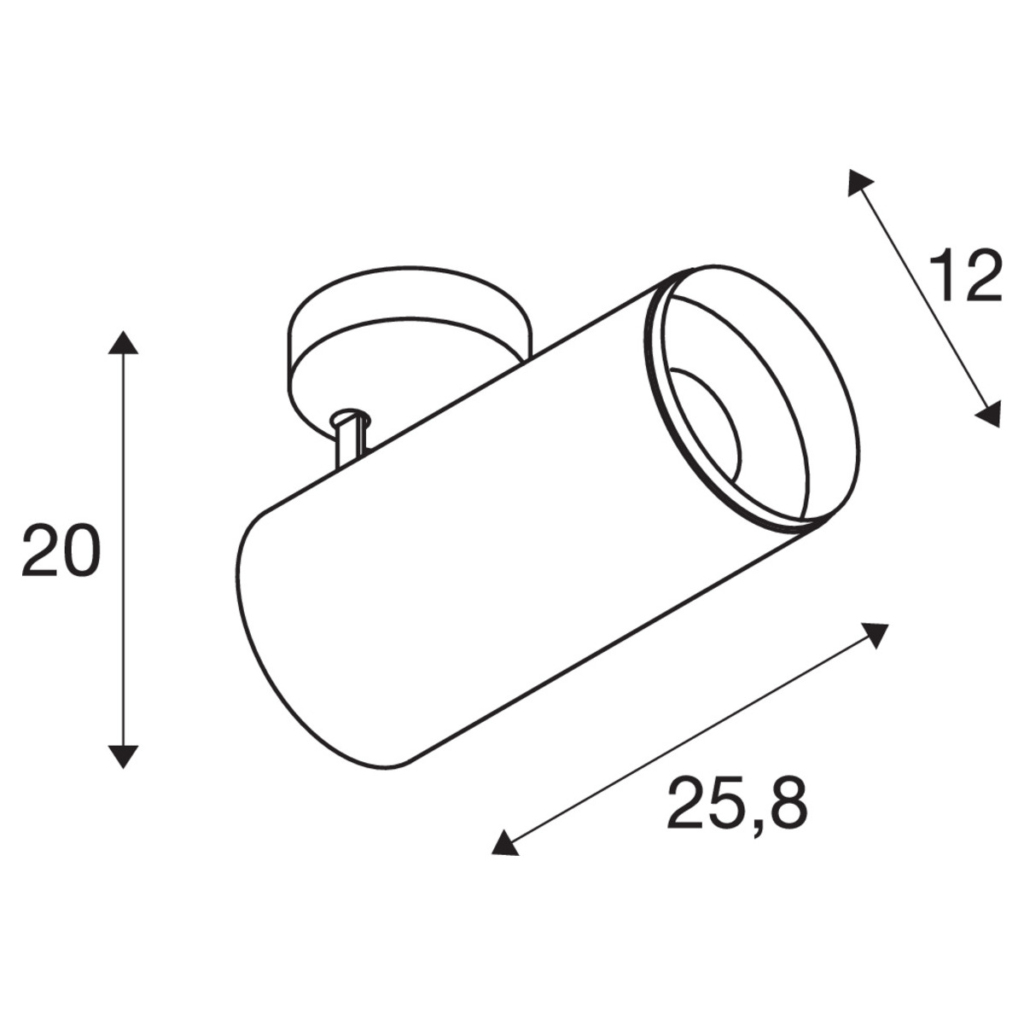

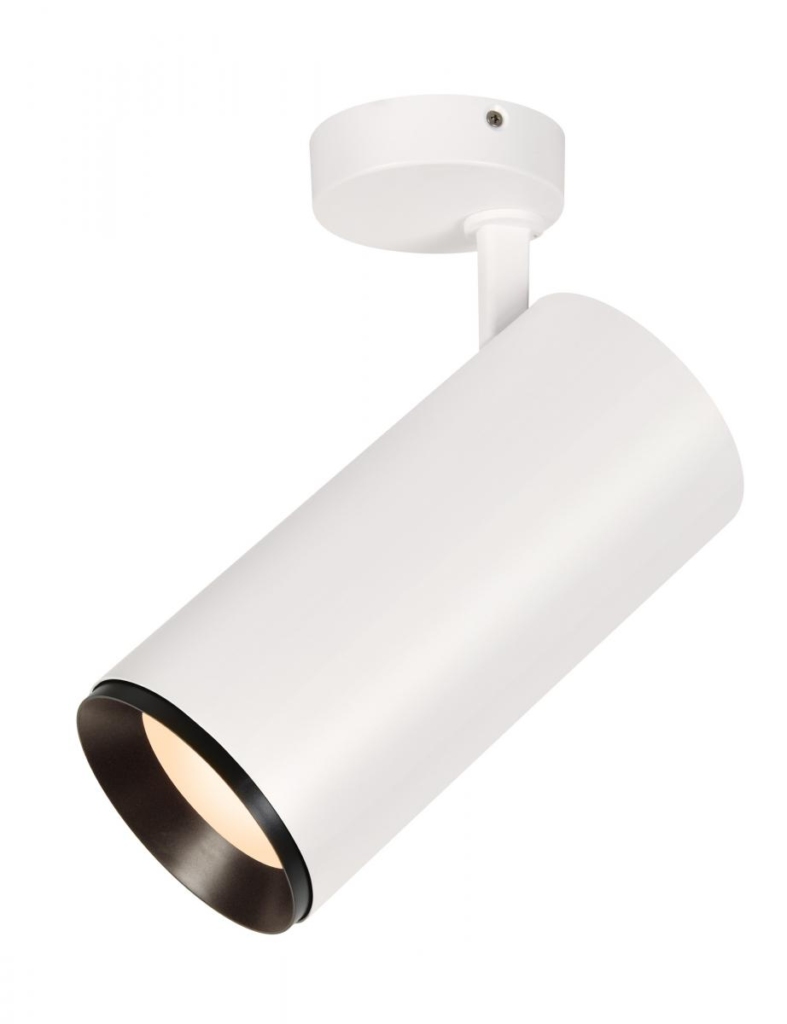

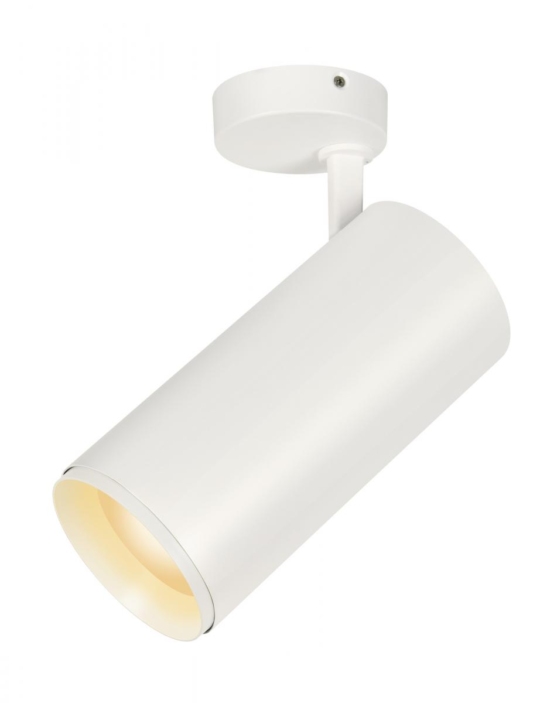

The NUMINOS® XL SPOT is a cylindrical surface-mounted ceiling luminaire suitable for indoor use. It delivers a luminous flux of 3550 lumens at 28 watts with a colour temperature of 3000 K, producing warm white light. The beam angle is 24°, enabling targeted illumination. The luminaire features phase-cut dimming, allowing for stepless brightness adjustment. The housing is made of aluminium and aluminium/PC, finished in matt white or matt black, and includes a round canopy. With dimensions of 25.8 cm length, 12 cm diameter, and 20 cm height, it offers a compact design. Its IP20 rating makes it suitable for dry indoor areas.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3550 lm
electrical power	28 W
CRI	90
Net weight	1.676 kg
Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, Dimmable, Indoor lighting, LED power track spotlight, Power-track spotlight, Shop lighting, Spotlight
